IRB 6790 Parts
Compare IRB 6790
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Net Width | Product Name |
|---|---|---|---|---|---|
| 3HAC063398-002 | Gasket, BRU | 0.08 kg kg | 0.08 kg kg | 50 mm mm | Gasket, BRU |

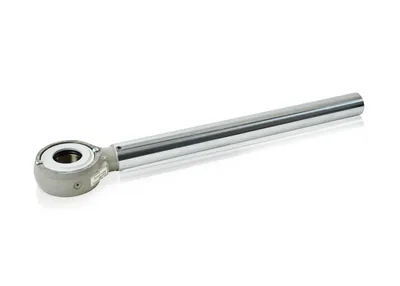

| 3HAC063340-001 | Maintenance set piston | 11 kg kg | 11 kg kg | — | Maintenance set piston |

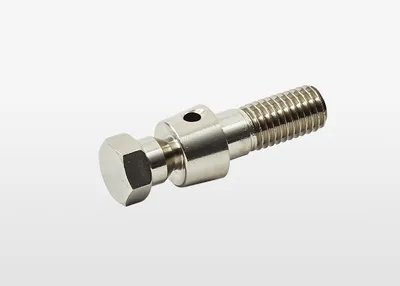

| 3HAC17136-2 | Safety screw, Stainless steel | 0.08 kg kg | 0.08 kg kg | 19 mm mm | Safety screw, Stainless steel |

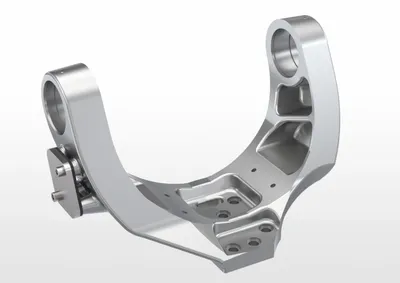

| 3HAC060514-003 | Cradle, Foundry Prime | 28 kg kg | 28 kg kg | 519 mm mm | Cradle, Foundry Prime |

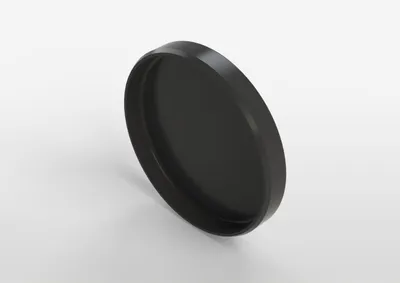

| 3HAA2166-36 | VK-Cover | 0.1 kg kg | 0.1 kg kg | — | VK-Cover |

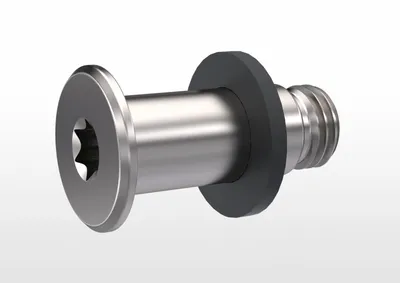

| 3HAC064875-001 | Calibration protection set | 0.024 kg kg | 0.024 kg kg | — | Calibration protection set |

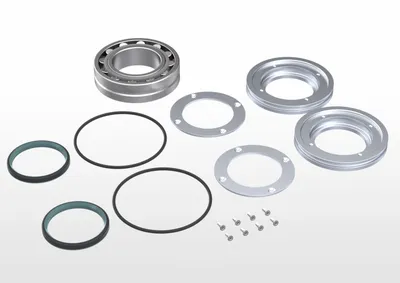

| 3HAC064119-001 | Maintenace set link ear | 2.392 kg kg | 2.392 kg kg | — | Maintenace set link ear |

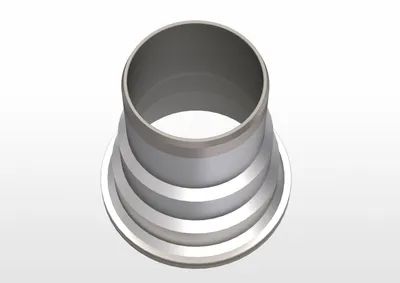

| 3HAC061119-001 | Sealing tube, FP | 4.5 kg kg | 4.5 kg kg | 195 mm mm | Sealing tube, FP |

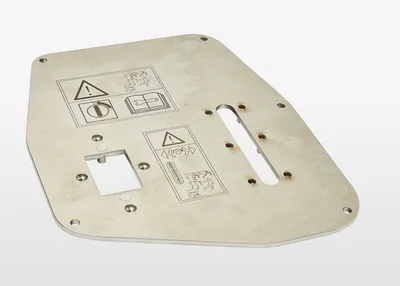

| 3HAC070534-002 | Cover SMB | 2 kg kg | 2 kg kg | 235 mm mm | Cover SMB |
| 3HAC070535-003 | Cover battery | 0.15 kg kg | 0.15 kg kg | 53 mm mm | Cover battery |

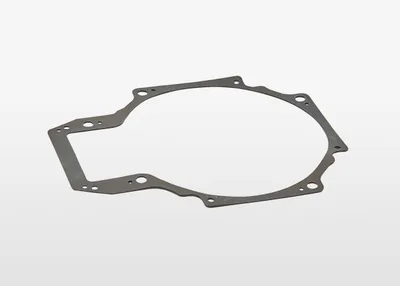

| 3HAC033489-002 | Gasket, Foundry Prime | 0.003 kg kg | 0.003 kg kg | 130 mm mm | Gasket, Foundry Prime |
| 3HAC063398-001 | Bracket | 0.2 kg kg | 0.2 kg kg | 45 mm mm | Bracket |

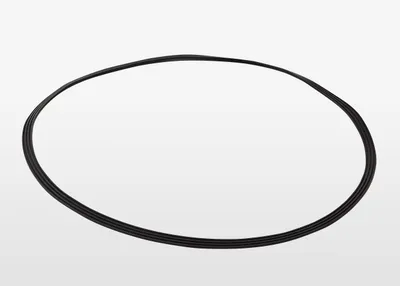

| 3HAC023099-002 | Gasket end cover | 0.04 kg kg | 0.04 kg kg | 343 mm mm | Gasket end cover |

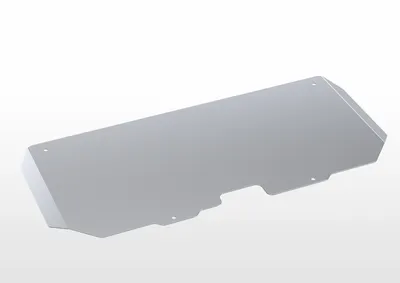

| 3HAC048235-002 | Base cover, FP | 2.78 kg kg | 2.78 kg kg | 262 mm mm | Base cover, FP |

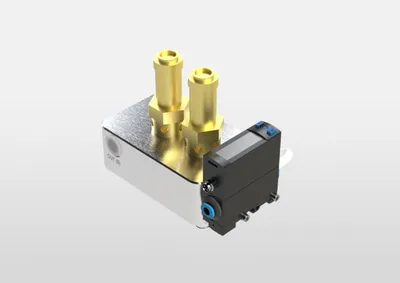

| 3HAC067922-001 | Overpressure unit | 1 kg kg | 1 kg kg | 110 mm mm | Overpressure unit |

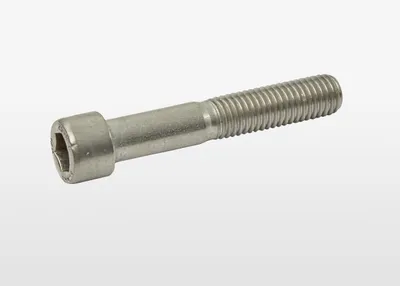

| 3HAC060786-010 | Hex socket head cap screw, SS | 0.02 kg kg | 0.02 kg kg | 10 mm mm | Hex socket head cap screw, SS |
| 3HAC060786-013 | Hex socket head cap screw, SS | 0.008 kg kg | 0.008 kg kg | 12 mm mm | Hex socket head cap screw, SS |
| 3HAC071091-005 | Lower arm | 127 kg kg | 127 kg kg | 500 mm mm | Lower arm |
| 3HAC060786-030 | Hex socket head cap screw, SS | 0.04 kg kg | 0.04 kg kg | 20 mm mm | Hex socket head cap screw, SS |
| 3HAC060786-034 | Hex socket head cap screw, SS | 0.06 kg kg | 0.06 kg kg | 16 mm mm | Hex socket head cap screw, SS |

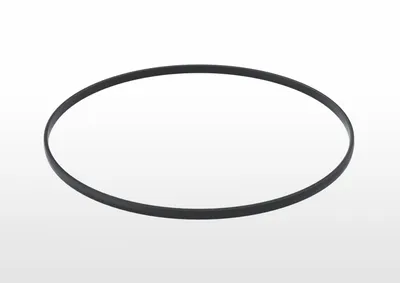

| 3HAC067762-001 | O-ring (rectangular section) | 0.02 kg kg | 0.02 kg kg | 175 mm mm | O-ring (rectangular section) |

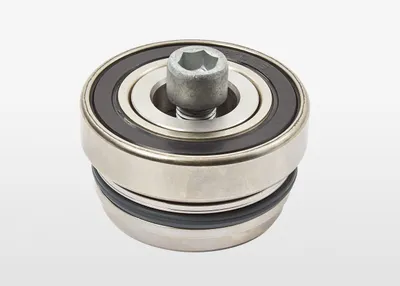

| 3HAC062243-003 | Groove ball bearing unit | 1.6 kg kg | 1.6 kg kg | 90 mm mm | Groove ball bearing unit |

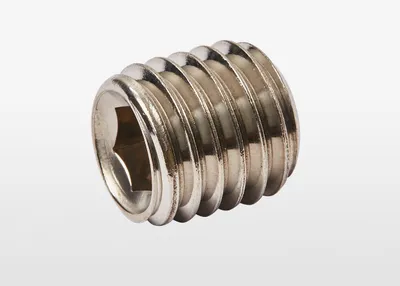

| 9ADJ400914P1306 | Hex. socket screw w cup p w | 0.004 kg kg | 0.004 kg kg | 10 mm mm | Hex. socket screw w cup p w |
| 3HAC045647-005 | Gasket, Foundry Prime | 0.005 kg kg | 0.005 kg kg | 88 mm mm | Gasket, Foundry Prime |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
| Frame Size | Undefined |
