OmniCore C30 Parts
Compare OmniCore C30
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Name | ABB Type Designation |
|---|---|---|---|---|---|
| 3HAC063967-001 | Harness DC-BUS | 0.02 kg kg | 0.02 kg kg | Harness DC-BUS | 240mm |
| 3HAC064927-001 | FlexPendant Holder w/t E-stop cover w | 1 kg kg | 1.5 kg kg | FlexPendant Holder w/t E-stop cover w | ABBME00101 |

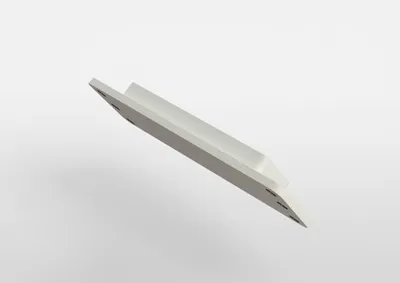

| 3HAC063601-001 | Cover plate | 0.06 kg kg | 0.06 kg kg | Cover plate | - |
| 3HAC060653-001 | Fan w/ contact w | 0.07 kg kg | 0.115 kg kg | Fan w/ contact w | 60x25 |

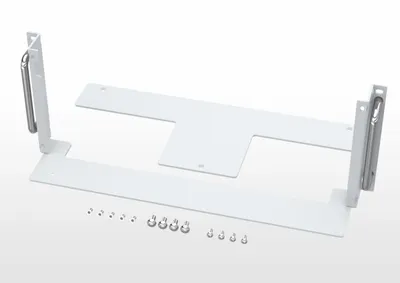

| 3HAC063918-001 | 19" rack mounting kit | 0.972 kg kg | 0.972 kg kg | 19" rack mounting kit | - |

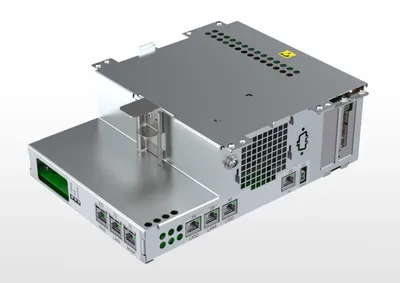

| 3HAC063061-001 | Main computer assembly | 2.038 kg kg | 2.038 kg kg | Main computer assembly | - |
| 3HAC065875-001 | Harness EtherCAT | 0.02 kg kg | 0.02 kg kg | Harness EtherCAT | 150mm |
| 3HAC064019-001 | Harness TempSensor with cable | 0.004 kg kg | 0.004 kg kg | Harness TempSensor with cable | 180mm |
| 3HAC064793-001 | Connector AC power inlet | 0.1 kg kg | 0.1 kg kg | Connector AC power inlet | Plug |

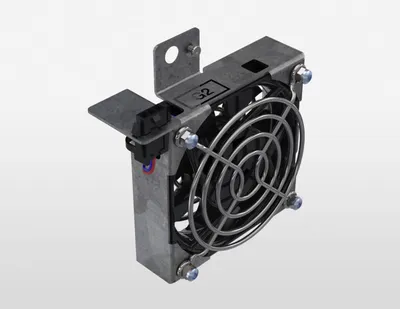

| 3HAC077006-001 | Small fan | 0.112 kg kg | 0.112 kg kg | Small fan | - |

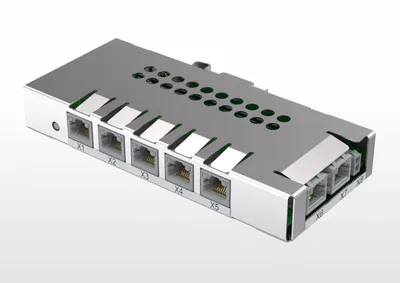

| 3HAC059187-001 | DSQC1035 Ethernet switch | 0.5 kg kg | 1 kg kg | DSQC1035 Ethernet switch | - |
| 3HAC064020-001 | Harness 24V_SYS_DRV | 0.02 kg kg | 0.02 kg kg | Harness 24V_SYS_DRV | 885mm |

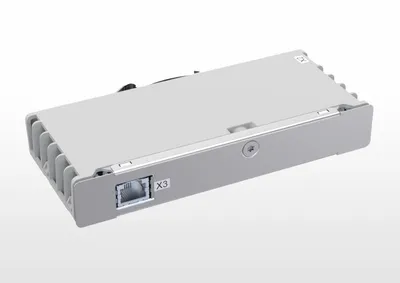

| 3HAC061701-001 | DSQC1041 Connected Services Wired | 0.174 kg kg | 0.35 kg kg | DSQC1041 Connected Services Wired | - |

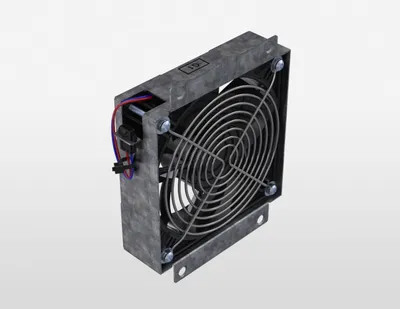

| 3HAC077005-001 | Std size silent fan unit | 0.465 kg kg | 0.465 kg kg | Std size silent fan unit | - |

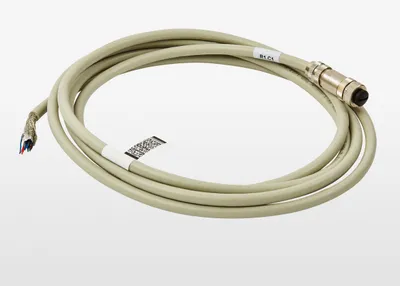

| 3HAC067449-001 | CPCS_12x Floor Cable,3m | 0.38 kg kg | 0.38 kg kg | CPCS_12x Floor Cable,3m | - |
| 3HAC067449-002 | CPCS_12x Floor Cable,7m | 0.85 kg kg | 0.85 kg kg | CPCS_12x Floor Cable,7m | - |
| 3HAC067447-003 | Eth.RJ45_X floor cable,15m | 0.7 kg kg | 0.7 kg kg | Eth.RJ45_X floor cable,15m | - |
| 3HAC067449-003 | CPCS_12x Floor Cable,15m | 1.2 kg kg | 1.2 kg kg | CPCS_12x Floor Cable,15m | - |
| 3HAC061099-001 | Harness AC input of power supply | 0.16 kg kg | 0.16 kg kg | Harness AC input of power supply | 1150mm |
| 3HAC061097-001 | Harness 24V_Trunk | 0.06 kg kg | 0.06 kg kg | Harness 24V_Trunk | 185mm |
| 3HAC059135-001 | DSQC3028 Power module | 3.58 kg kg | 3.58 kg kg | DSQC3028 Power module | - |

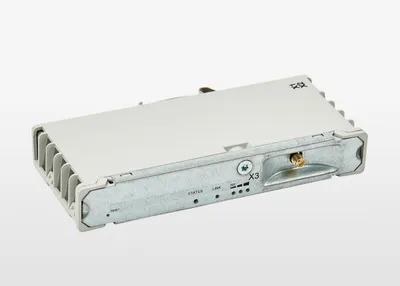

| 3HAC060960-001 | DSQC1039 Connected Services 3G | 0.174 kg kg | 0.35 kg kg | DSQC1039 Connected Services 3G | - |

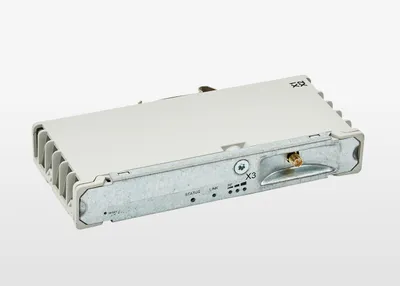

| 3HAC060962-001 | DSQC1040 Connected Services Wi-Fi | 0.174 kg kg | 0.35 kg kg | DSQC1040 Connected Services Wi-Fi | - |
| 3HAC061139-002 | Control cable power, L=7m | 7.28 kg kg | 7.28 kg kg | Control cable power, L=7m | - |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
| Frame Size | Undefined |
