IRB 1600 Parts
Compare IRB 1600
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Name | Product Net Height |
|---|---|---|---|---|---|

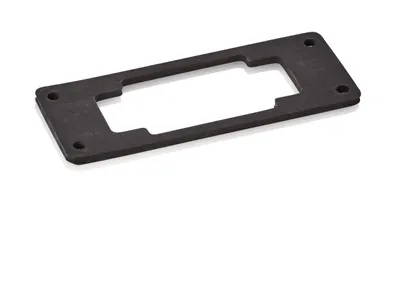

| 3HAB9040-1 | Gasket | 0.012 kg kg | 0.012 kg kg | Gasket | — |
| 3HAC050395-001 | Lower arm, spare part | 26 kg kg | 26 kg kg | Lower arm, spare part | — |

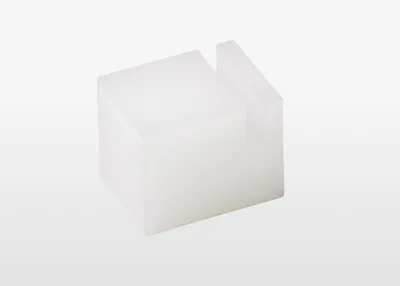

| 3HAC025815-001 | Centering piece | 0.012 kg kg | 0.012 kg kg | Centering piece | 14 mm mm |

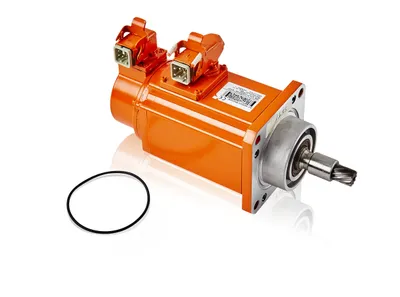

| 3HAC023557-001 | Rot. ac motor incl. pinion, spare, Std/F | 7.06 kg kg | 8 kg kg | Rot. ac motor incl. pinion, spare, | 146 mm mm |
| 3HAC021798-003 | Motor w. pinion w | 3.32 kg kg | 3.32 kg kg | Motor w. pinion w | 140 mm mm |
| 3HEA800897-004 | Dust cap, bayonet | 0.009 kg kg | 0.03 kg kg | Dust cap, bayonet | 12 mm mm |

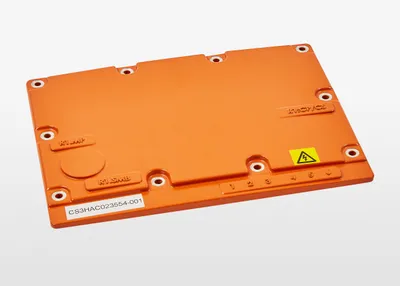

| 3HAC023554-001 | Cover base, spare | 0.74 kg kg | 0.94 kg kg | Cover base, spare | 15 mm mm |

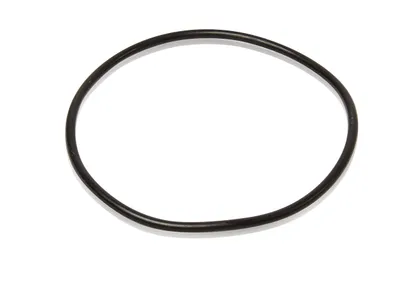

| 21522012-428 | O-ring | 0.003 kg kg | 0.003 kg kg | O-ring | 3 mm mm |

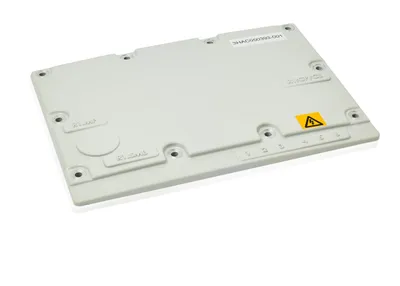

| 3HAC050393-001 | cover on base, spare part | 0.74 kg kg | 0.74 kg kg | cover on base, spare part | 8 mm mm |

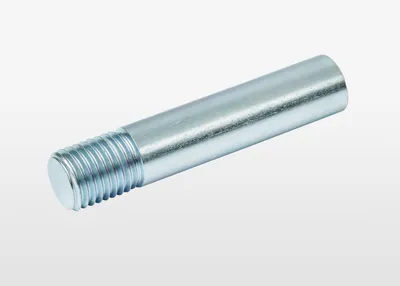

| 3HAB3258-1 | Stop pin | 0.24 kg kg | 0.24 kg kg | Stop pin | 20 mm mm |
| 3HAC7816-1 | Cover | 0.16 kg kg | 0.16 kg kg | Cover | 19 mm mm |
| 9ADA618-56 | Torx Pan Head Screw | 0.005 kg kg | 0.005 kg kg | Torx Pan Head Screw | 10 mm mm |

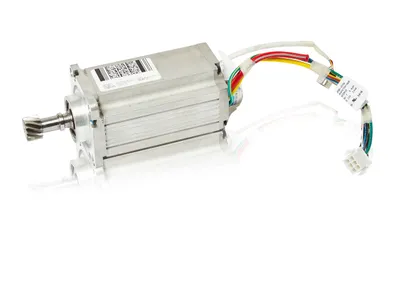

| 3HAC047574-002 | Rot. AC motor incl. pinion | 1.8 kg kg | 1.8 kg kg | Rot. AC motor incl. pinion | 65 mm mm |
| 3HAB3772-61 | O-ring | 0.005 kg kg | 0.005 kg kg | O-ring | 1.6 mm mm |

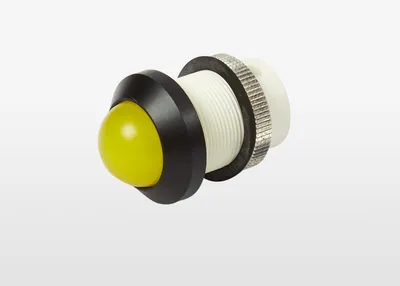

| 3HAC9258-1 | Indicator lamp | 0.04 kg kg | 0.04 kg kg | Indicator lamp | 30 mm mm |
| 25222101-8 | Protective hood | 0.002 kg kg | 0.002 kg kg | Protective hood | 10 mm mm |
| 3HAB3732-13 | Sealing ring (V-ring) V | 0.013 kg kg | 0.013 kg kg | Sealing ring (V-ring) V | 8 mm mm |
| 3HAC6499-1 | Push button guard | 0.08 kg kg | 0.096 kg kg | Push button guard | 8 mm mm |
| 3HAC050417-001 | Lamp unit, spare part | 0.18 kg kg | 0.18 kg kg | Lamp unit, spare part | 40 mm mm |
| 0418698004 | Guidepin D12x30 | 0.017 kg kg | 0.017 kg kg | Guidepin D12x30 | 12.5 mm mm |
| 3HAC054431-003 | Calibration sealing plug, 8 mm mm | 0.017 kg kg | 0.017 kg kg | Calibration sealing plug, 8 mm mm | — |
| 3HAC023556-001 | Cover, Gear box axis 1-2, spare | 0.74 kg kg | 1.1 kg kg | Cover, Gear box axis 1-2, spare | 45 mm mm |
| 21512062-177 | Plain washer | 0.006 kg kg | 0.006 kg kg | Plain washer | 2 mm mm |
| 3HAC022048-001 | Gasket, gearbox axis 1-2 | 0.02 kg kg | 0.02 kg kg | Gasket, gearbox axis 1-2 | 16 mm mm |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
