IRB 8700 Parts

Showing 73–96 of 167 parts

Compare IRB 8700

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNInvoice DescriptionProduct Net WeightGross WeightProduct NameABB Type Designation
3HAC048445-003Turning disc13.32 kg kg13.32 kg kgTurning disc-

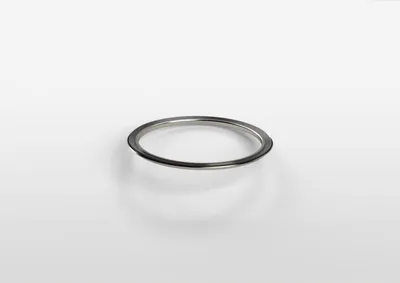

3HAC048723-001Gamma sealing0.06 kg kg0.06 kg kgGamma sealing-
3HAC048722-001Sealing ring0.28 kg kg0.28 kg kgSealing ring-
3HAC058950-003Rot. AC motor incl. Pinion28.5 kg kg28.5 kg kgRot. AC motor incl. PinionGraphite white 5Nm/2,46Kw
3HAC050601-001Mechanical stop ax 50.58 kg kg0.58 kg kgMechanical stop ax 5-
3HAC048081-006Lower arm331 kg kg331 kg kgLower armOrange

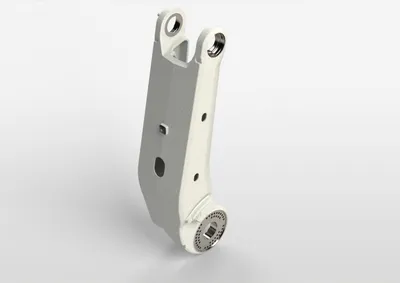

3HAC048081-005Lower arm331 kg kg331 kg kgLower armGraphite white
3HAC049735-003Support shaft incl. bearing6.12 kg kg6.12 kg kgSupport shaft incl. bearing-
3HAC048254-007Motor flange5.7 kg kg5.7 kg kgMotor flangeOrange
3HAC048254-006Motor flange5.7 kg kg5.7 kg kgMotor flangeGraphite white
3HAC048651-004Axis 6126 kg kg126 kg kgAxis 6Orange

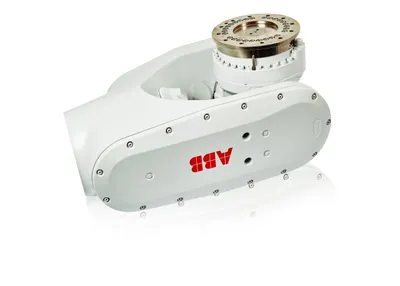

3HAC048653-006Wrist380 kg kg380 kg kgWristGraphite white 550/4,2 800/3,5
3HAC048653-004Wrist380 kg kg380 kg kgWristOrange

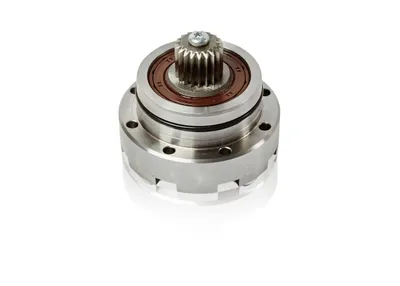

3HAC049906-003Hub with pinion1.85 kg kg1.85 kg kgHub with pinion-

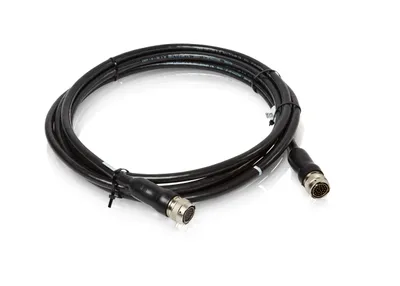

3HAC054648-001CPS, ax 3-62.18 kg kg2.18 kg kgCPS, ax 3-6-

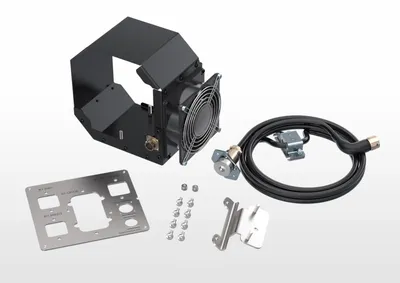

3HAC060789-001Fan unit set IRB 87003.576 kg kg3.576 kg kgFan unit set IRB 8700-
3HAC058951-003Rot. AC motor incl. p.13.8 kg kg13.8 kg kgRot. AC motor incl. p.Graphite White 1,22 Kw 2,6Nm Kw
9ADA312-11Plain washer0.014 kg kg0.014 kg kgPlain washerSteel - A3F 21x37x3
3HAC048180-001Mechanical stop13 kg kg13 kg kgMechanical stop-

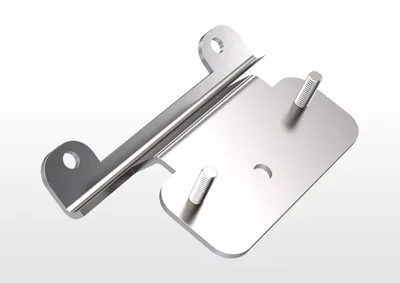

3HAC060788-001Bracket0.2 kg kg0.2 kg kgBracket-

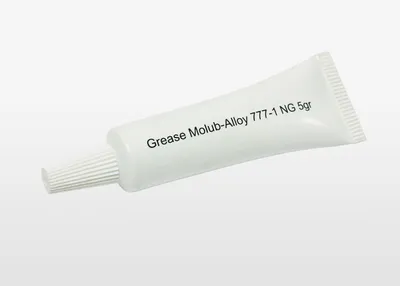

3HAC063069-001Grease0.01 kg kg0.01 kg kgGreaseCastrol Molub-Alloy 777-1 5ML
3HAC048651-006Axis 6126 kg kg126 kg kgAxis 6Graphite white

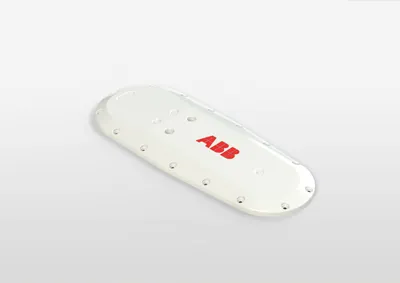

3HAC048657-004Cover6.8 kg kg6.8 kg kgCoverGraphite white

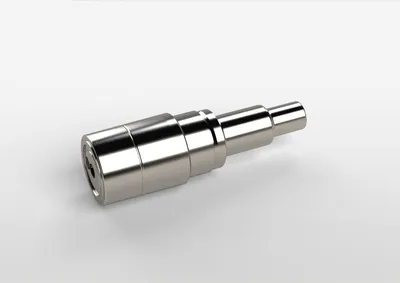

3HAC048467-001Shaft19.4 kg kg19.4 kg kgShaft-

Common to all listed parts

Minimum Order Quantity1 piece
Selling Unit of Measurepiece
Order Multiple1 piece
Quote OnlyNo
Made To OrderNo
Part TypeNew
WEEE CategoryProduct Not in WEEE Scope
Frame SizeUndefined
