IRC5 Compact Parts
Compare IRC5 Compact
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Net Depth / Length | Product Name |
|---|---|---|---|---|---|

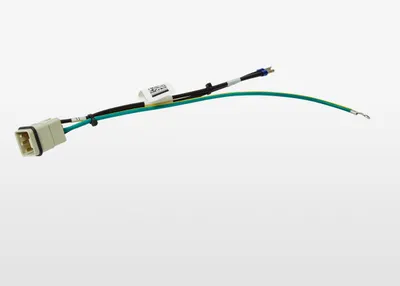

| 3HAC031421-001 | Harness XP0 - Q1 | 0.04 kg kg | 0.04 kg kg | 300 mm mm | Harness XP0 - Q1 |

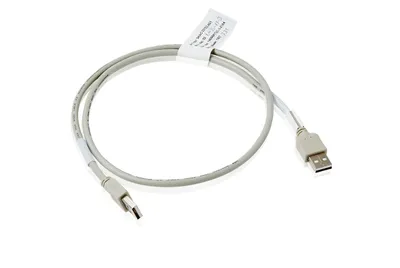

| 3HAC031528-001 | Harness G2.X8 - A31.USB | 0.04 kg kg | 0.04 kg kg | 119.37 mm mm | Harness G2.X8 - A31.USB |
| 3HAC049408-001 | Housing | 7.8 kg kg | 7.8 kg kg | 450 mm mm | Housing |

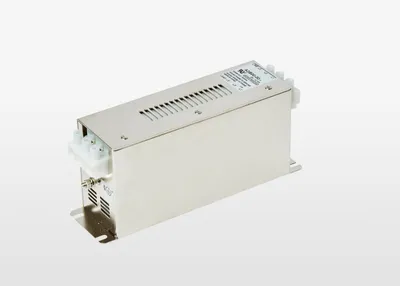

| 3HAC037698-001 | Line filter | 1.4 kg kg | 1.4 kg kg | 210 mm mm | Line filter |
| 3HAC055665-003 | Extension cable TPU 22m | 4.16 kg kg | 4.16 kg kg | 22000 mm mm | Extension cable TPU 22m |

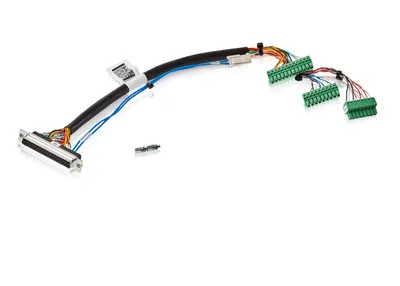

| 3HAC037679-001 | Harness A21-XS9 | 0.08 kg kg | 0.08 kg kg | 435 mm mm | Harness A21-XS9 |

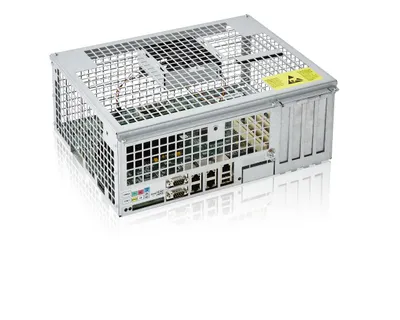

| 3HAC025527-004 | Computer unit | 2.64 kg kg | 3.46 kg kg | — | Computer unit |

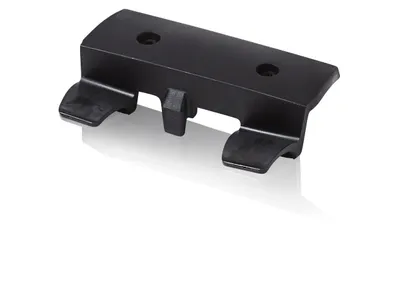

| 3HAC033596-002 | SxTPU holder upper part | 0.04 kg kg | 0.04 kg kg | 114.7 mm mm | SxTPU holder upper part |
| 3HAC037700-001 | Contactor ASL16-30-10 DC24V | 0.3 kg kg | 0.3 kg kg | 68 mm mm | Contactor ASL16-30-10 DC24V |
| 5217649-29 | Keying-pin | 0.002 kg kg | 0.002 kg kg | 18 mm mm | Keying-pin |
| 3HAC037878-001 | Harness PTC&Brake | 0.1 kg kg | 0.1 kg kg | — | Harness PTC&Brake |

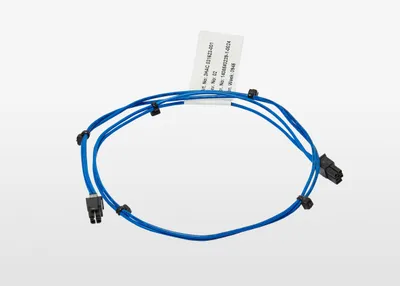

| 3HAC031623-001 | Harness G1.X3 - G2.X2 | 0.006 kg kg | 0.006 kg kg | 600 mm mm | Harness G1.X3 - G2.X2 |

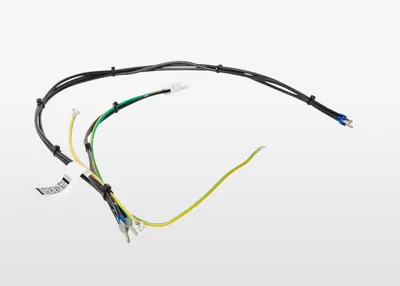

| 3HAC031520-001 | Harness Z1 - K42&G1 | 0.1 kg kg | 0.1 kg kg | 840 mm mm | Harness Z1 - K42&G1 |

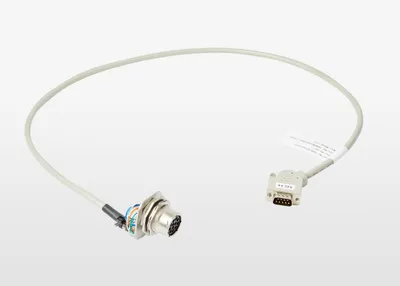

| 3HAC031621-001 | Harness XS2 - Servo Computer | 0.14 kg kg | 0.14 kg kg | 890 mm mm | Harness XS2 - Servo Computer |
| 3HAC031622-001 | Ribbon Cable for DSQC572 | 0.005 kg kg | 0.005 kg kg | 200 mm mm | Ribbon Cable for DSQC572 |

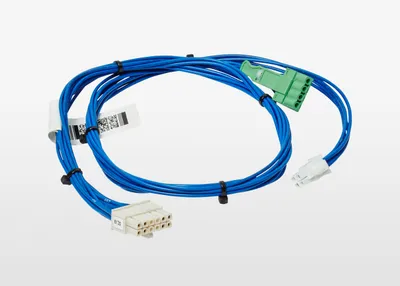

| 3HAC031527-001 | Harness G2 - A21&A31 | 0.08 kg kg | 0.08 kg kg | 780 mm mm | Harness G2 - A21&A31 |

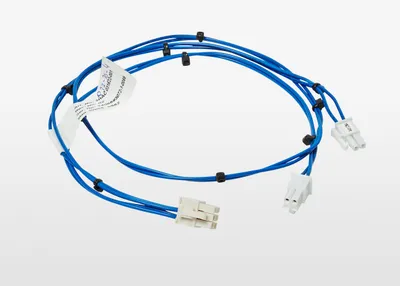

| 3HAC031522-001 | Harness G2 - A41&A42 | 0.04 kg kg | 0.04 kg kg | 850 mm mm | Harness G2 - A41&A42 |
| 3HAC034615-001 | Harness Contactors - XS8 | 0 kg kg | 0 kg kg | — | Harness Contactors - XS8 |
| 3HAC043383-001 | DSQC 1006 DeviceNet Board | 0.06 kg kg | 0.06 kg kg | 180 mm mm | DSQC 1006 DeviceNet Board |

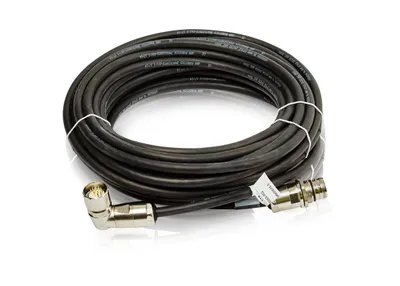

| 3HAC055665-002 | Extension cable TPU 15m | 2.9 kg kg | 2.9 kg kg | 15000 mm mm | Extension cable TPU 15m |
| 3HAC2492-1 | Control cable power 7m | 7.68 kg kg | 7.68 kg kg | 7000 mm mm | Control cable power 7m |

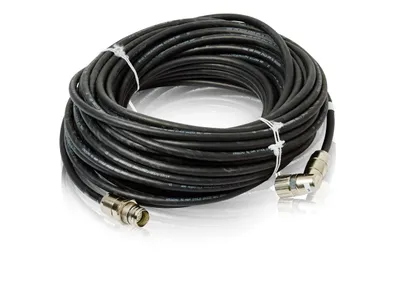

| 3HAC055665-004 | Extension cable TPU 30m | 5.56 kg kg | 5.56 kg kg | 30000 mm mm | Extension cable TPU 30m |
| 3HAC037877-001 | Harn-Drive Unit 120 - 1600 | 0.98 kg kg | 0.98 kg kg | 740 mm mm | Harn-Drive Unit 120 - 1600 |
| 3HAC025780-001 | DSQC 659 DeviceNet M/S dual M | 0.12 kg kg | 0.12 kg kg | — | DSQC 659 DeviceNet M/S dual M |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
