Articulated Robots Parts

Showing 25–46 of 46 parts

Compare Articulated Robots

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNInvoice DescriptionProduct Net WeightGross WeightProduct Net WidthProduct Name

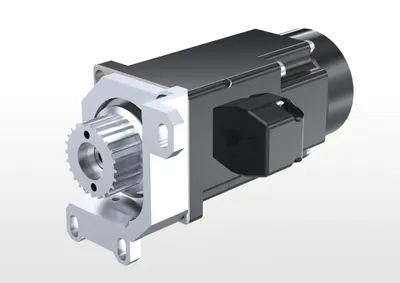

3HAC083586-001Motor with flange Ax40.4 kg kg0.5 kg kg52.05 mm mmMotor with flange Ax4

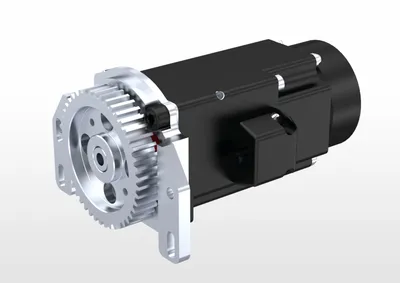

3HAC083584-001Motor combining, A60.8 kg kg1 kg kg68 mm mmMotor combining, A6

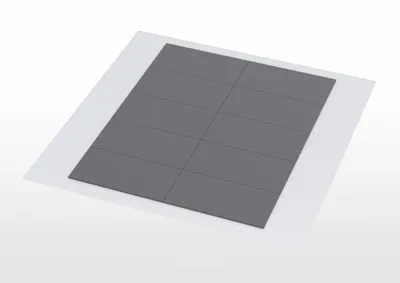

3HAC071021-001cooling pad0.3 kg kg0.5 kg kg170 mm mmcooling pad

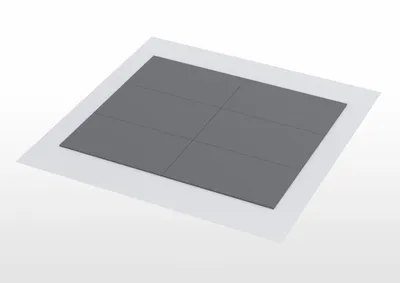

3HAC071020-001Axis1/2 cooling pad0.044 kg kg0.044 kg kg170 mm mmAxis1/2 cooling pad
3HAC071022-001IRB1100 Special tool kit0.15 kg kg0.15 kg kg—IRB1100 Special tool kit

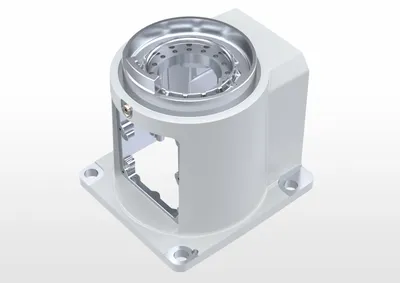

3HAC069048-001Base with bushing1.5 kg kg2 kg kg173 mm mmBase with bushing

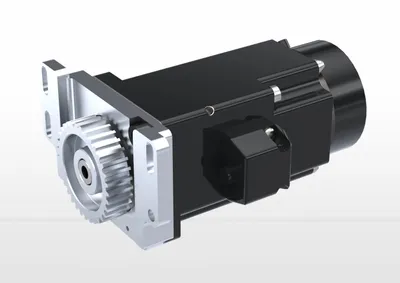

3HAC083585-001Motor combining, A50.8 kg kg1 kg kg67 mm mmMotor combining, A5

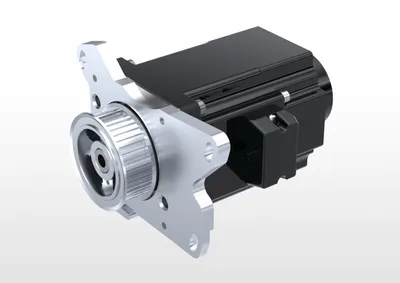

3HAC083589-001Motor with flange of ax11.2 kg kg1.5 kg kg102.14 mm mmMotor with flange of ax1

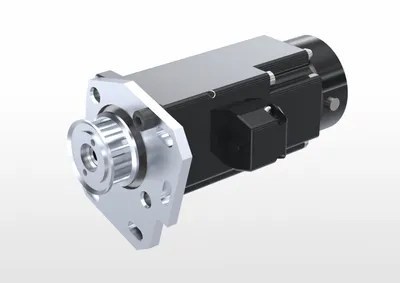

3HAC083587-001Motor with flange Ax30.7 kg kg1 kg kg60.92 mm mmMotor with flange Ax3
3HAC083588-001Motor with flange Ax21.2 kg kg1.5 kg kg105.81 mm mmMotor with flange Ax2

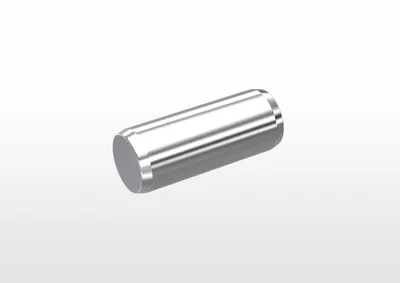

3HAC050369-032Parallel pin0.002 kg kg0.002 kg kg4 mm mmParallel pin

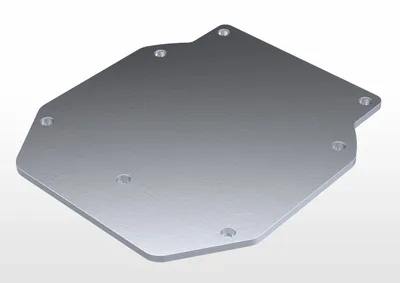

3HAC060463-001Underneath plate0.214 kg kg0.214 kg kg140 mm mmUnderneath plate

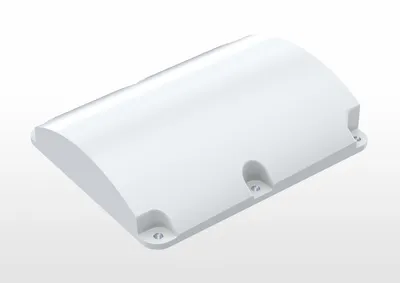

3HAC069060-001SMB cover0.3 kg kg0.5 kg kg93.93 mm mmSMB cover

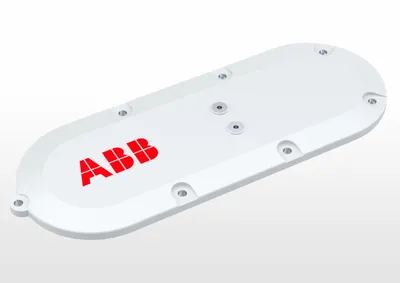

3HAC069061-001Wrist cover0.5 kg kg0.6 kg kg75 mm mmWrist cover
3HAC084767-002Control cable signal,7m7.15 kg kg7.15 kg kg—Control cable signal,7m

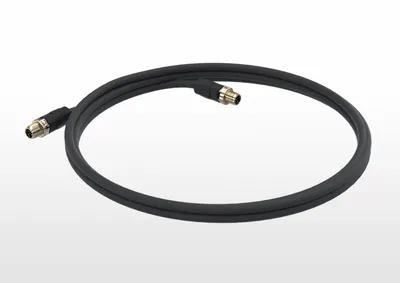

3HAC084767-001Control cable signal,3m0.33 kg kg0.33 kg kg—Control cable signal,3m

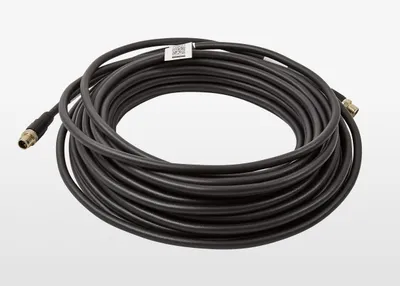

3HAC084767-003Control cable signal,15m1.44 kg kg1.44 kg kg—Control cable signal,15m
3HAC088723-001Outside cable protector0.01 kg kg0.01 kg kg60 mm mmOutside cable protector
3HAC088722-001Inside cable protector0.01 kg kg0.01 kg kg76 mm mmInside cable protector
3HAC075521-001L Basic1 kg kg1.5 kg kg—L Basic
3HAC069094-001Process hub Basic0.3 kg kg0.5 kg kg—Process hub Basic
3HAC060416-001U Basic Ext.0.215 kg kg0.215 kg kg—U Basic Ext.

Common to all listed parts

Country or Territory of OriginChina
Minimum Order Quantity1 piece
Selling Unit of Measurepiece
Order Multiple1 piece
Quote OnlyNo
Made To OrderNo
Part TypeNew
WEEE CategoryProduct Not in WEEE Scope
