Troubleshooting Parts
Compare Troubleshooting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Net Depth / Length | Product Name |
|---|---|---|---|---|---|

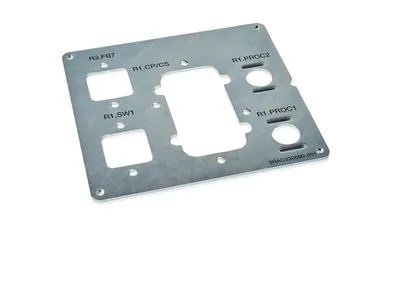

| 3HAC030090-001 | Attachment plate | 0.6 kg kg | 0.6 kg kg | 190 mm mm | Attachment plate |

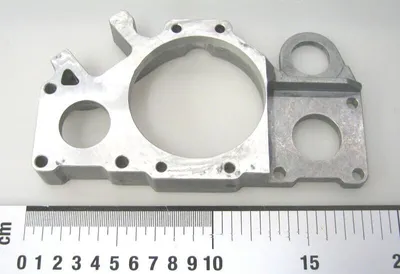

| 3HAC024360-001 | Motor console ax. 5-6 | 0.3 kg kg | 0.3 kg kg | — | Motor console ax. 5-6 |
| 3HAC044641-012 | T40 variseal sealing | 0.003 kg kg | 0.003 kg kg | 45 mm mm | T40 variseal sealing |

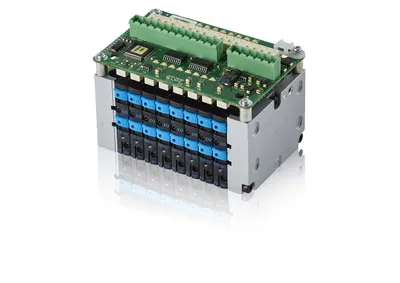

| 3HNA017445-001 | FUNCTION VALVE MODULE | 0.88 kg kg | 0.88 kg kg | 110.77 mm mm | FUNCTION VALVE MODULE |

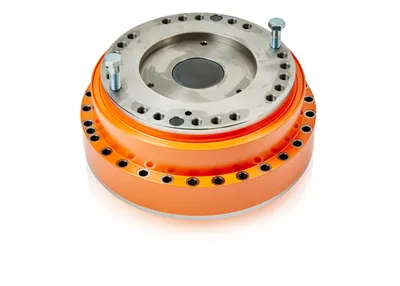

| 3HAC058399-003 | Reduction Gear RV-550N-252.33 | 88 kg kg | 88 kg kg | 380 mm mm | Reduction Gear RV-550N-252.33 |

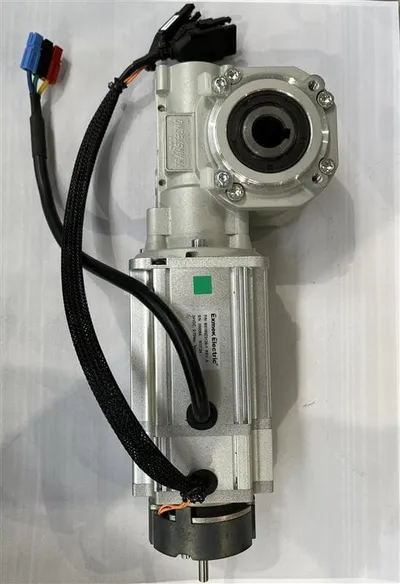

| 3HAS003906D001 | WIRED MOTOR | 4 kg kg | 4.049 kg kg | 330 mm mm | WIRED MOTOR |

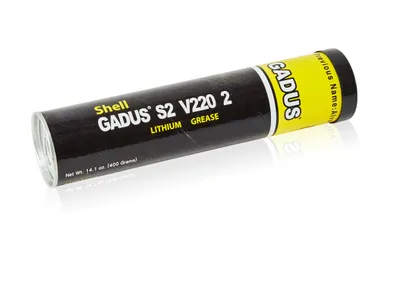

| 3HNA004719-001 | LUBRICANT, GREASE | 0.46 kg kg | 0.46 kg kg | 80 mm mm | LUBRICANT, GREASE |
| 3HAC044661-001 | Sleeve | 0.02 kg kg | 0.02 kg kg | 85 mm mm | Sleeve |

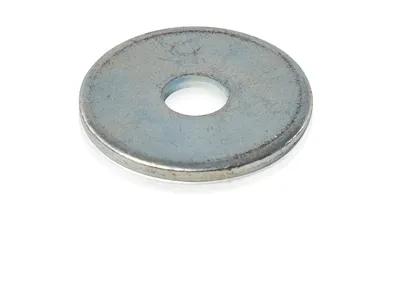

| 3HAA2356-11 | Plate | 0.022 kg kg | 0.022 kg kg | — | Plate |
| 3HAC057687-001 | PCBA assembly | 0.02 kg kg | 0.02 kg kg | 225 mm mm | PCBA assembly |

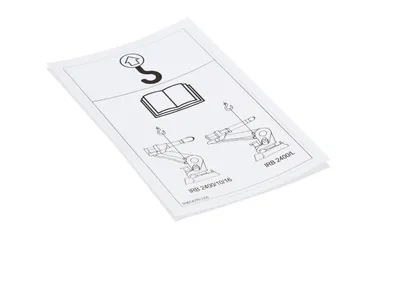

| 3HAC4779-1 | Instruction plate | 0.003 kg kg | 0.003 kg kg | — | Instruction plate |

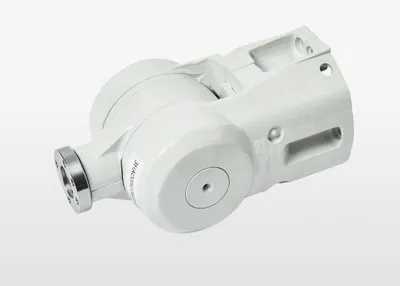

| 3HAC050083-001 | Wrist, spare part | 4.3 kg kg | 4.3 kg kg | 220 mm mm | Wrist, spare part |

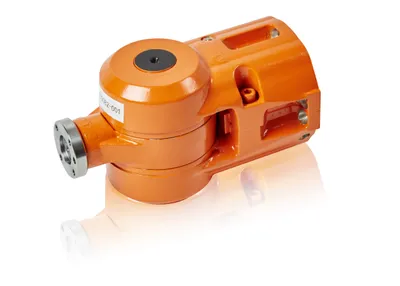

| 3HAC050082-001 | Wrist, spare part | 4.28 kg kg | 4.28 kg kg | 210 mm mm | Wrist, spare part |

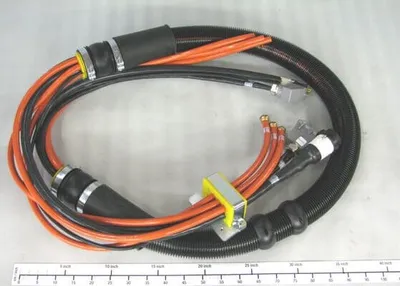

| 3HAC16644-1 | Proc cable package 3-6 SW | 18 kg kg | 18 kg kg | — | Proc cable package 3-6 SW |

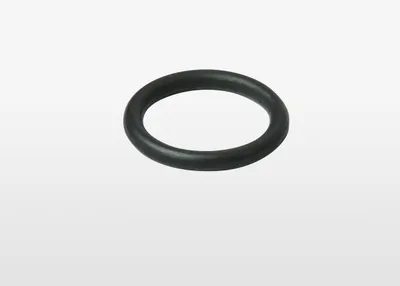

| 3HNA010390-001 | O-RING | 0.002 kg kg | 0.002 kg kg | 12 mm mm | O-RING |

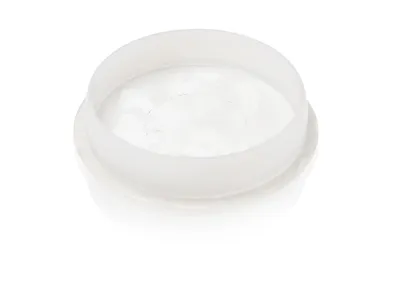

| 3HAB4479-1 | Cap | 0.024 kg kg | 0.024 kg kg | 95 mm mm | Cap |

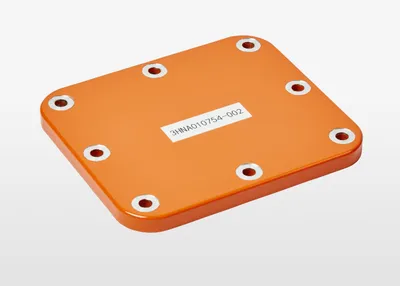

| 3HNA010754-002 | COVER VERTICALARM | 0.82 kg kg | 0.82 kg kg | 180 mm mm | COVER VERTICALARM |

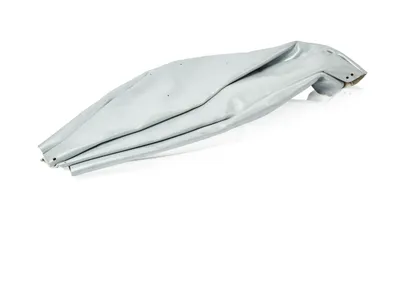

| 3HAC050176-001 | Leather Protection sack | 0.99 kg kg | 0.99 kg kg | 870 mm mm | Leather Protection sack |

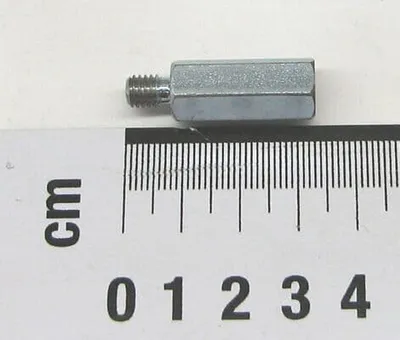

| 3HAC3030-12 | Distance screw | 0.002 kg kg | 0.002 kg kg | — | Distance screw |
| 3HAC081489-001 | Rear plate, CR | 0.2 kg kg | 0.3 kg kg | 136.8 mm mm | Rear plate, CR |
| CS-2222 | BALANCE UNIT AXIS 3 | 28 kg kg | 28 kg kg | — | BALANCE UNIT AXIS 3 |
| CS-2232 | BEVEL GEAR UPPER | 29.24 kg kg | 30.2 kg kg | 450 mm mm | BEVEL GEAR UPPER |

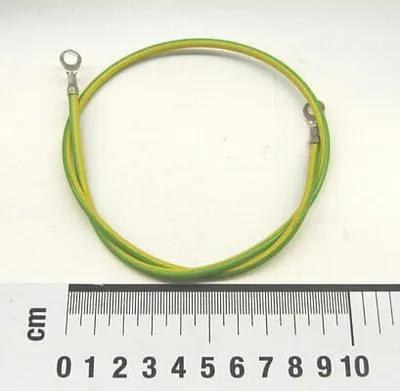

| 3HAC8466-1 | Protective earth cable | 0.016 kg kg | 0.016 kg kg | — | Protective earth cable |

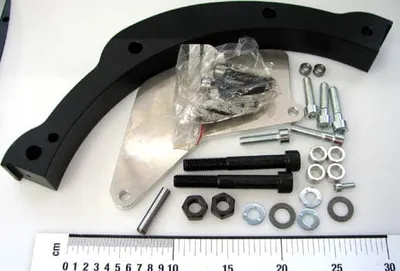

| 3HNA015279-001 | UPGRADE KIT ENDSTOP | 0 kg kg | 0 kg kg | — | UPGRADE KIT ENDSTOP |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
