Troubleshooting Parts
Compare Troubleshooting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Net Depth / Length | Product Name |
|---|---|---|---|---|---|

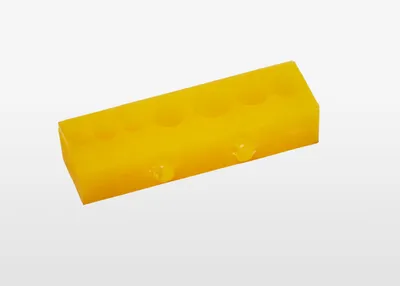

| 3HAC2309-1 | Cable clamp | 0.06 kg kg | 0.06 kg kg | 98 mm mm | Cable clamp |

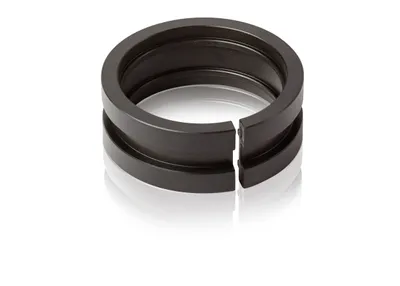

| 3HNA000303-001 | HOSE ADAPTER FOR CLAMP | 0.06 kg kg | 0.06 kg kg | 85 mm mm | HOSE ADAPTER FOR CLAMP |

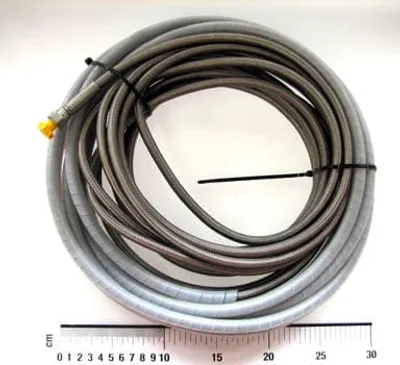

| 3HNA012708-001 | HP-HOSE 1/4" L=13650MM | 1.69 kg kg | 1.69 kg kg | — | HP-HOSE 1/4" L=13650MM |

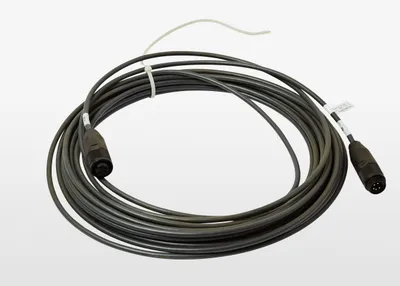

| 3HAC027380-002 | Harness CAN/DeviceNet 15m | 0.94 kg kg | 0.94 kg kg | 15000 mm mm | Harness CAN/DeviceNet 15m |

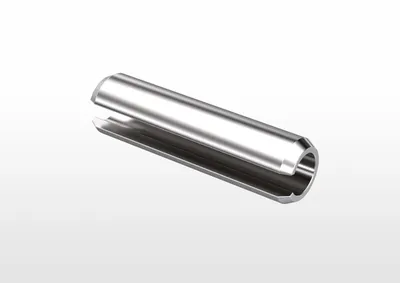

| 3HNA024268-001 | SPRING PIN | 0 kg kg | 0 kg kg | — | SPRING PIN |

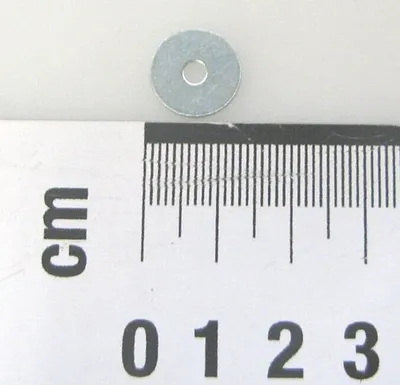

| 3HAC039768-001 | Rivet washer | 0.01 kg kg | 0.01 kg kg | — | Rivet washer |

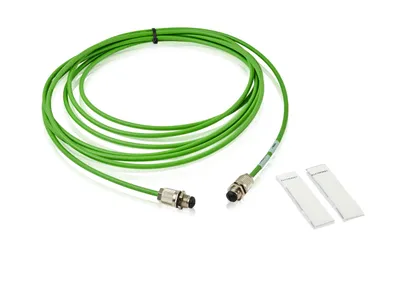

| 3HAC034203-003 | Ethernet cable, Lower arm | 0.38 kg kg | 0.38 kg kg | — | Ethernet cable, Lower arm |

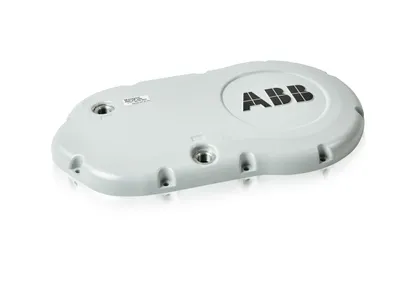

| 3HAC049912-002 | Cover with gasket | 1.8 kg kg | 1.8 kg kg | — | Cover with gasket |

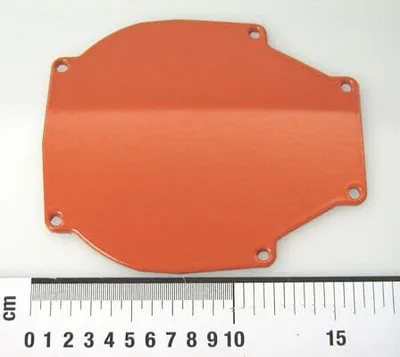

| 3HAC030548-002 | Cover painted | 0.23 kg kg | 0.23 kg kg | — | Cover painted |
| 3HAC10479-1 | Upper Arm without motors & wrist | 8.4 kg kg | 8.4 kg kg | 430 mm mm | Upper Arm without motors & wrist |

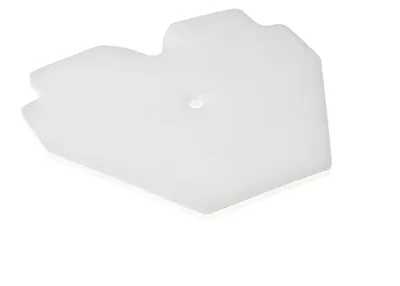

| 3HAA1001-164 | Protective plate | 0.041 kg kg | 0.041 kg kg | 145 mm mm | Protective plate |

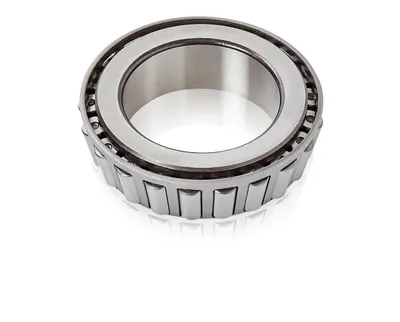

| 3HAA1001-168 | Taper roller bearing | 0.349 kg kg | 0.349 kg kg | 75 mm mm | Taper roller bearing |

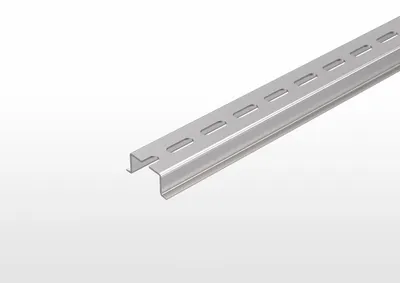

| 3HNA003219-001 | MO_EQ RAIL TS 35 X 15 | 0.01 kg kg | 0.01 kg kg | — | MO_EQ RAIL TS 35 X 15 |

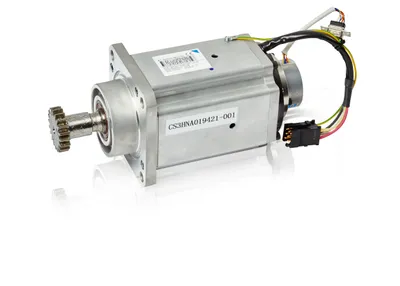

| 3HNA019421-001 | MOTOR W/GEAR Trms 4.8Nm W | 6.58 kg kg | 6.58 kg kg | 260 mm mm | MOTOR W/GEAR Trms 4.8Nm W |

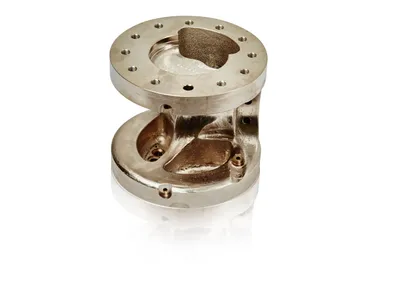

| 3HAC054888-004 | Process Turning Disc, nickel phosph. | 17.12 kg kg | 17.12 kg kg | 195 mm mm | Process Turning Disc, nickel phosph |

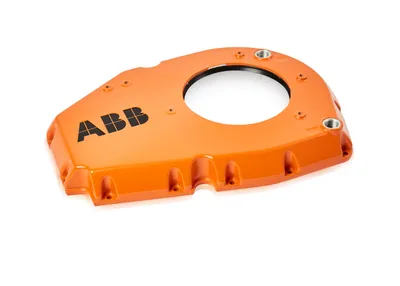

| 3HAC025196-002 | Cover ax.4 with sealing | 2.58 kg kg | 2.58 kg kg | 460 mm mm | Cover ax.4 with sealing |

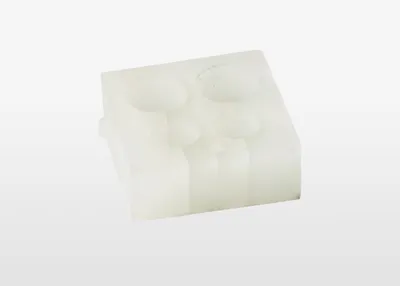

| 3HAC022542-001 | Rubberclamp | 0.04 kg kg | 0.04 kg kg | 55 mm mm | Rubberclamp |

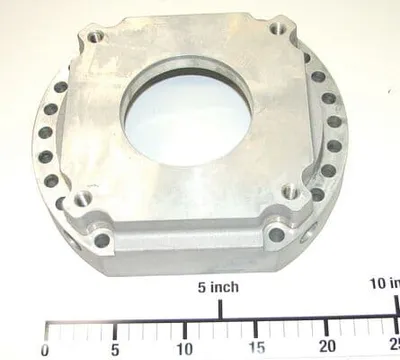

| 3HAC11499-1 | Motor flange, machin. | 1.84 kg kg | 1.84 kg kg | — | Motor flange, machin. |

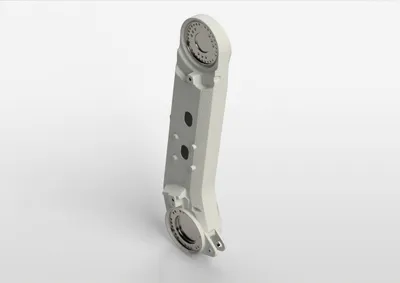

| 3HAC042495-008 | Lower arm long | 136 kg kg | 136 kg kg | — | Lower arm long |

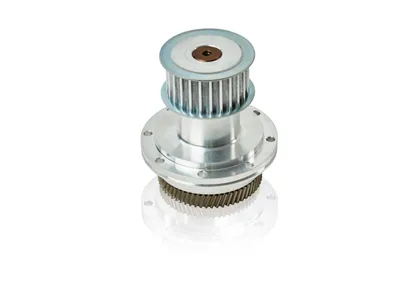

| 3HNA019429-001 | GEAR WHEEL UNIT | 1.85 kg kg | 1.85 kg kg | 115 mm mm | GEAR WHEEL UNIT |

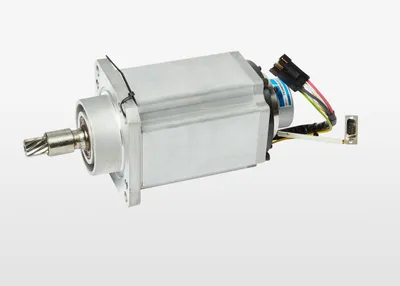

| 3HNA019428-001 | MOTOR W/GEAR Trms 4.8Nm W | 6.5 kg kg | 6.5 kg kg | 320 mm mm | MOTOR W/GEAR Trms 4.8Nm W |

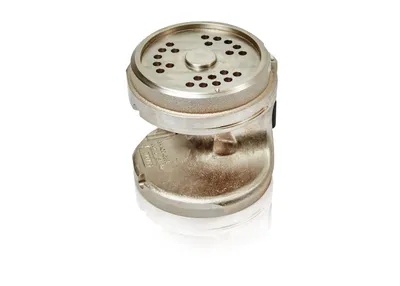

| 3HAC054889-004 | Process Turning Disc, nickel phosph. | 21 kg kg | 21 kg kg | 205 mm mm | Process Turning Disc, nickel phosph |

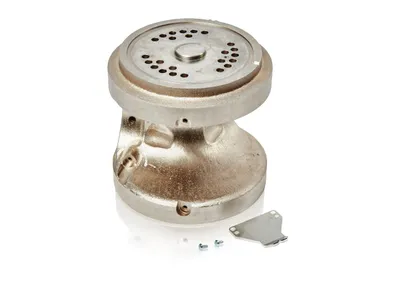

| 3HAC054887-005 | Process Turning Disc, nickel phosph. | 17.5 kg kg | 17.5 kg kg | 192 mm mm | Process Turning Disc, nickel phosph |

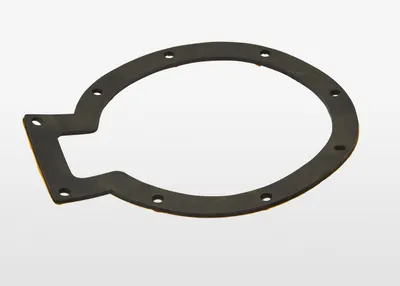

| 3HAA1001-166 | Gasket | 0.035 kg kg | 0.035 kg kg | 210 mm mm | Gasket |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
