Troubleshooting Parts

ABB

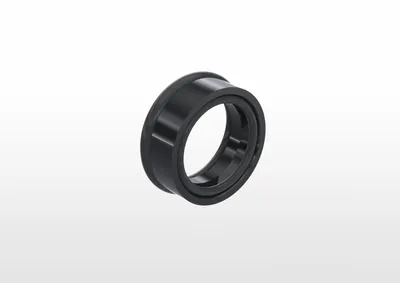

3HNA027104-001

SEAL KIT

ABB

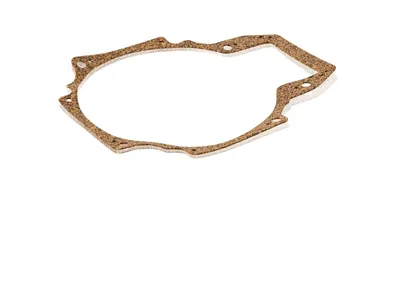

3HAC033489-001

Syntetic rubber GT-33 t=1

ABB

3HAS007460A001

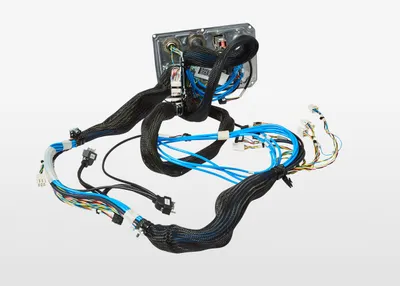

ABB

3HAC061286-001

Main Cable harness, Standard, w/ Eth, CR

ABB

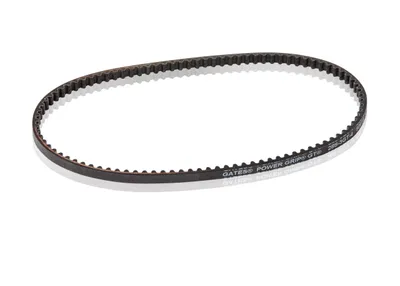

3HAC053110-001

Timing belt

ABB

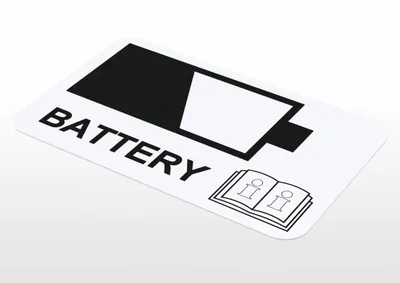

3HAC077212-001

FDA

ABB

3HAC077213-001

FDA

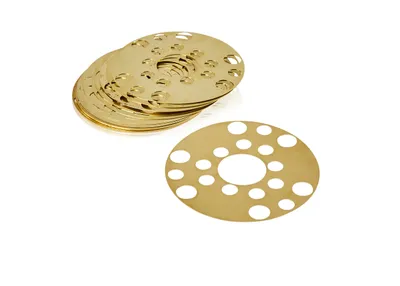

ABB

3HAC020619-001

BRASS

ABB

3HNA006082-001

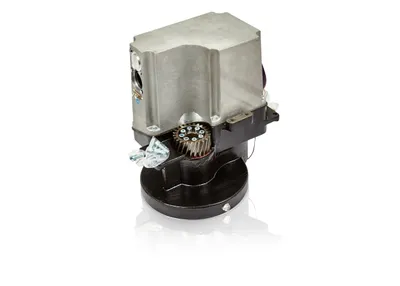

DRIVE UNIT S7

ABB

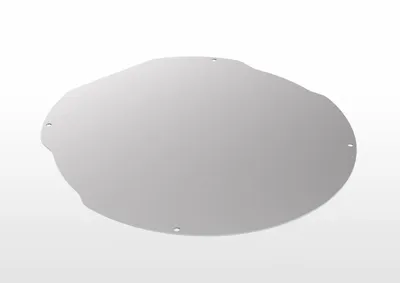

3HNA029492-001

STEEL AZ150 2.0 MM

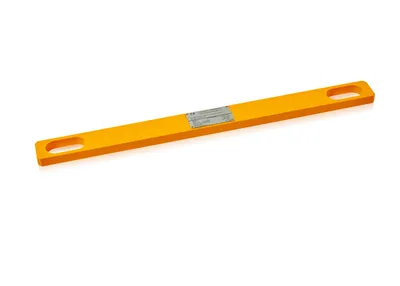

ABB

3HAC049682-001

IRB1200 lifting beam

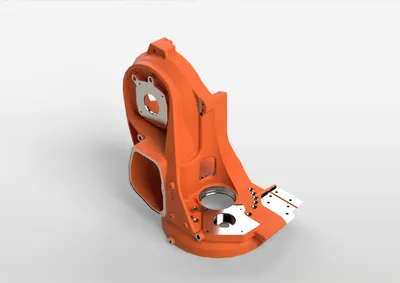

ABB

3HAC048334-002

ABB

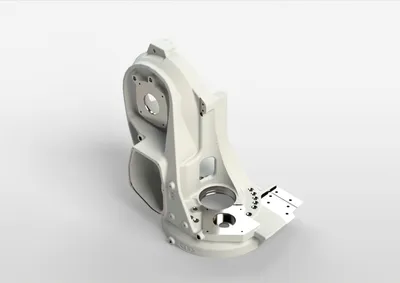

3HAC048334-003

ABB

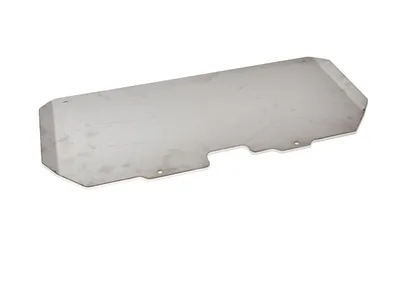

3HAC048235-001

Base cover

ABB

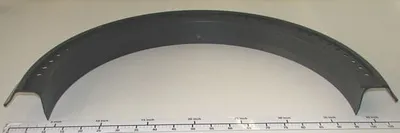

3HAC6018-1

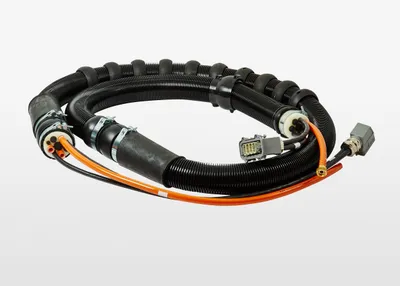

ABB

3HAC023253-002

3,0 3,2S CPS/CBUS, 1hose

ABB

3HNA026720-001

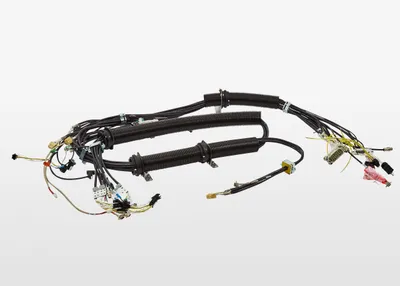

CABLE UNIT IRB5500

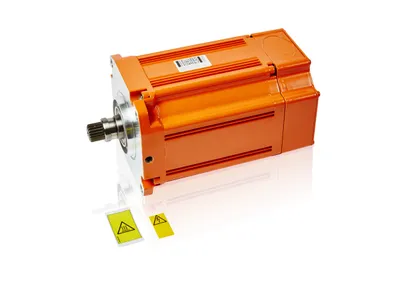

ABB

3HAC055688-004

ABB

3HAC3668-1

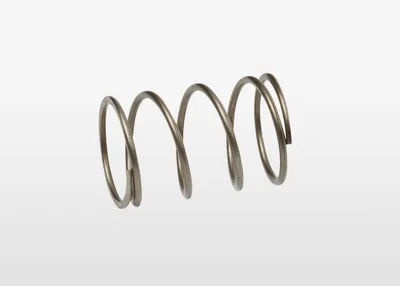

Compression spring

ABB

3HNA015478-001

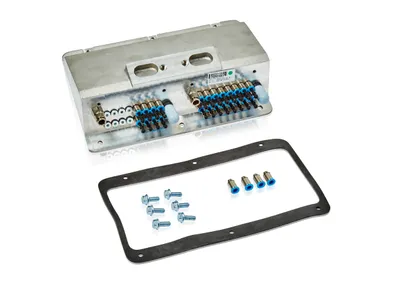

FUNCTION VALVE KIT

ABB

3HAC028512-001

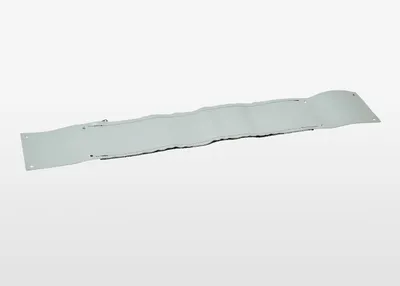

Aluminized Leather 950x165

ABB

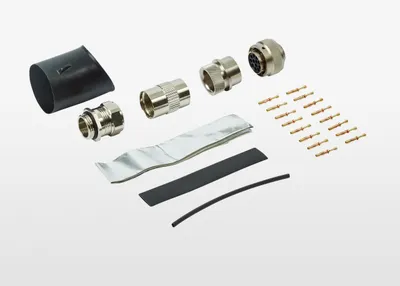

3HAC12493-1

Conn.set R1.CS, Std.

ABB

3HAC15433-1

Cabel bracket

ABB

3HAC11283-2

Compare Troubleshooting

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Customs Tariff Number	Product Net Weight	Gross Weight	Product Name	Product Net Depth / Length
3HNA027104-001	85389099	0.1 kg kg	0.1 kg kg	SEAL KIT	—
3HAC033489-001	40169300	0.004 kg kg	0.004 kg kg	Gasket	162 mm mm

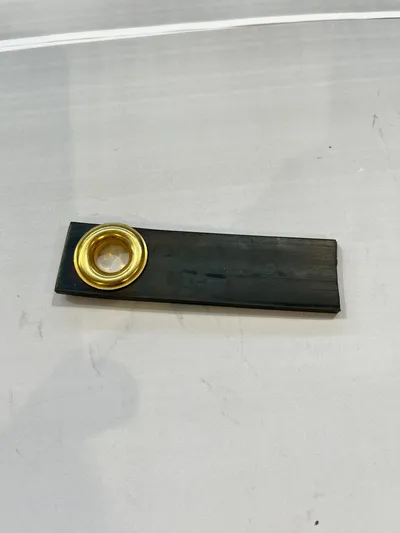

3HAS007460A001	85480090	0.04 kg kg	0.056 kg kg	DISCHARGE STRIP	150 mm mm
3HAC061286-001	85444290	1.64 kg kg	1.64 kg kg	Main Cable harness, Standard, w/ Et w	2100 mm mm
3HAC053110-001	39269097	0.004 kg kg	0.004 kg kg	Timing belt	120 mm mm
3HAC077212-001	39199080	0.002 kg kg	0.002 kg kg	Battery label FDA	40 mm mm

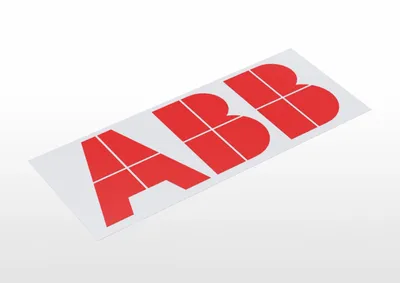

3HAC077213-001	84799070	0.005 kg kg	0.005 kg kg	ABB-logotype FDA	137.5 mm mm
3HAC020619-001	74152100	0.51 kg kg	0.51 kg kg	Set of shims Z3 / 4,5	—
3HNA006082-001	85044095	69 kg kg	69 kg kg	DRIVE UNIT S7	190 mm mm
3HNA029492-001	84799070	1.799 kg kg	1.799 kg kg	COVER	386 mm mm
3HAC049682-001	84799070	2.5 kg kg	2.5 kg kg	IRB1200 lifting beam	45 mm mm
3HAC048334-002	84799070	193 kg kg	193 kg kg	Frame	—
3HAC048334-003	84799070	193 kg kg	193 kg kg	Frame	—
3HAC048235-001	84799070	2 kg kg	2 kg kg	Base cover	574 mm mm
3HAC6018-1	84799070	5.16 kg kg	5.16 kg kg	Lower processmedia guide	—
3HAC023253-002	85444290	14.1 kg kg	14.1 kg kg	Proc Cable Package, Upper arm MH	5000 mm mm
3HNA026720-001	85444290	9 kg kg	9 kg kg	CABLE UNIT IRB5500	4300 mm mm
3HAC055688-004	85015220	28.6 kg kg	28.6 kg kg	Rot. ac motor incl p.	—
3HAC3668-1	73209090	0.007 kg kg	0.007 kg kg	Compression spring	40 mm mm
3HNA015478-001	84818085	3.1 kg kg	3.1 kg kg	FUNCTION VALVE KIT	260 mm mm
3HAC028512-001	42050019	0.23 kg kg	0.23 kg kg	Cable protection leather	955 mm mm
3HAC12493-1	73181562	0.14 kg kg	0.14 kg kg	Conn.set R1.CS, Std.	—
3HAC15433-1	84799070	0.02 kg kg	0.02 kg kg	cabel bracket	—

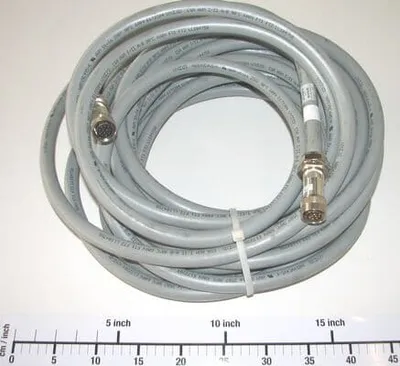

3HAC11283-2	85444290	9.14 kg kg	9.14 kg kg	Servocable SP 15 m m	—

Common to all listed parts

Minimum Order Quantity	1 piece
Selling Unit of Measure	piece
Order Multiple	1 piece
Quote Only	No
Made To Order	No
Part Type	New
WEEE Category	Product Not in WEEE Scope
