ABB
1C10184Functional Modules Parts
Browse Subcategories
Compare Functional Modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Customs Tariff Number | Product Net Weight | Gross Weight | Product Name |
|---|---|---|---|---|---|
| 1C10184 | HOLDER | 84249080 | 1.1 kg kg | 1.6 kg kg | HOLDER |

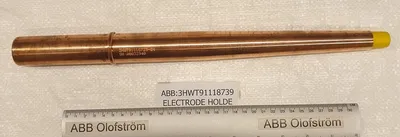

| 3HWT91118739 | ELECTRODE HOLDER | 74198090 | 1.912 kg kg | 1.912 kg kg | ELECTRODE HOLDER |

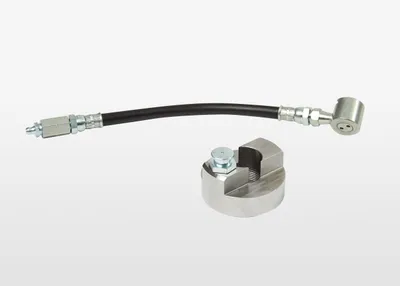

| 3HAC4701-1 | Lubricating tool | 84799070 | 0.57 kg kg | 0.57 kg kg | Lubricating tool |

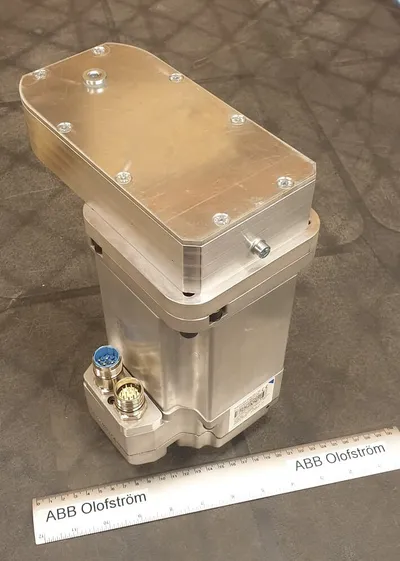

| 3HWT91118435 | MOTOR REPLACEMENT KIT | 84799070 | 0 kg kg | 0 kg kg | MOTOR REPLACEMENT KIT |

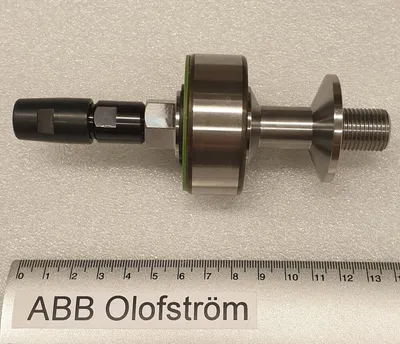

| 3HWT91510007 | CHUCK UNIT | 84799070 | 0.517 kg kg | 1 kg kg | CHUCK UNIT |
| 63550006-261 | SEAL | 40169300 | 0.02 kg kg | 0.02 kg kg | SEAL |

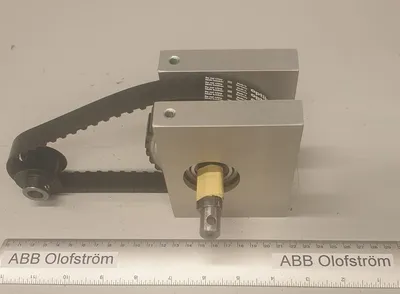

| 3HWT91510004 | DRIVE UNIT | 84799070 | 2.654 kg kg | 2.654 kg kg | DRIVE UNIT |

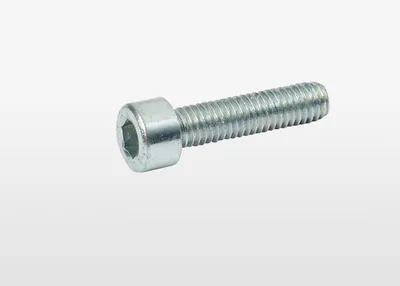

| 3HAB3402-26 | Hex socket head cap screw | 73181575 | 0.015 kg kg | 0.015 kg kg | Hex socket head cap screw |
| E3HAC021757-001 | Motor incl pinion | 85015100 | 1 kg kg | 1 kg kg | Motor incl pinion |

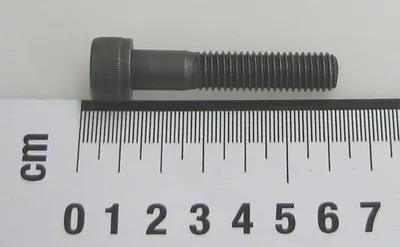

| 3HAC7505-1 | Hex socket head cap screw | 73181562 | 0.036 kg kg | 0.036 kg kg | Hex socket head cap screw |
| 21522012-205 | O-ring | 40169300 | 0.002 kg kg | 0.002 kg kg | O-ring |

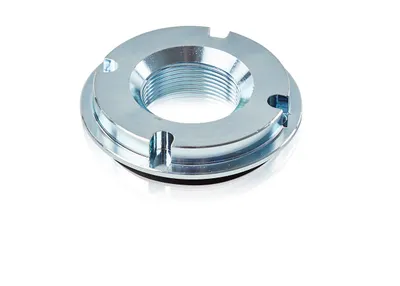

| 3HAC7407-1 | Lock nut | 73181699 | 0.2 kg kg | 0.2 kg kg | Lock nut |
| 3D10884 | VALVE UNIT ASSY | 84249080 | 0.2 kg kg | 0.4 kg kg | VALVE UNIT ASSY |
| 3HAW050013612 | Blade 50 L=122.5 ALU | 84799070 | 1.4 kg kg | 1.4 kg kg | Blade 50 L=122.5 ALU |
| 3HAW050013632 | Al. riser H=300 L=0 dowel 12H7 insul. | 76169990 | 2.1 kg kg | 2.1 kg kg | Al. riser H=300 L=0 dowel 12H7 insu |
| 3HAW050013662 | Al. riser H=250 L=120 dowel 12H7 insul. | 84799070 | 2.1 kg kg | 2.1 kg kg | Al. riser H=250 L=120 dowel 12H7 in |
| 3HAW050059514 | Connector cable | 85444290 | 1 kg kg | 1.3 kg kg | Connector cable |
| 3HAC023352-001 | Connector set Master XP215(A) A | 84799070 | 0.12 kg kg | 0.12 kg kg | Connector set Master XP215(A) A |
| 3HAW050012460 | Blade H=070 ALU | 76169990 | 0.5 kg kg | 0.5 kg kg | Blade H=070 ALU |
| 3HWT91118008 | WASHER | 84799070 | 0 kg kg | 0 kg kg | WASHER |
| 3HWT91510051 | TOOTH BELT WHEEL | 84799070 | 0 kg kg | 0 kg kg | TOOTH BELT WHEEL |
| 3HWT91117988 | DUST EXTRACTOR TD (OPTION) DIAM 20 | 84799070 | 0 kg kg | 0 kg kg | DUST EXTRACTOR TD (OPTION) DIAM 20 |
| 3HWT91117480 | ROBOT PLATE | 84799070 | 0 kg kg | 0 kg kg | ROBOT PLATE |
| 3HWT91117280 | REINFORCING PLATE | 84799070 | 0 kg kg | 0 kg kg | REINFORCING PLATE |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| WEEE Category | Product Not in WEEE Scope |
