Altivar Machine ATV320 Parts

Schneider Electric

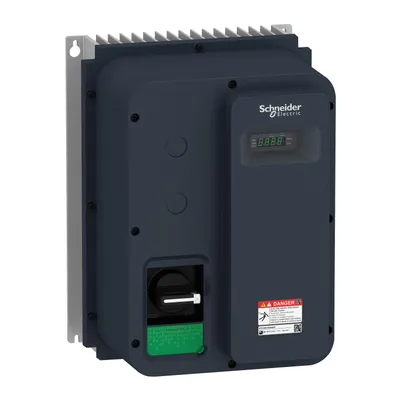

ATV320U11M2WS

Variable speed drive, Altivar Machine ATV320, 1.1 kW, 200...240 V, 1 phase, enclosed

Schneider Electric

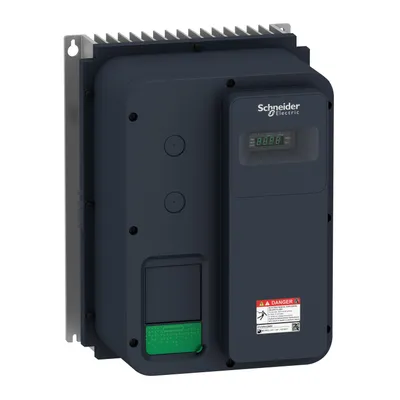

ATV320U11M2W

Variable speed drive, Altivar Machine ATV320, 1.1 kW, 200...240 V, 1 phase, enclosed

Schneider Electric

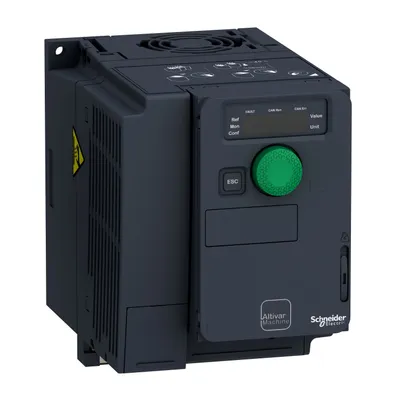

ATV320U11M2C

Variable speed drive, ATV320, 1.1 kW, 200…240 V, 1 phase, compact

Schneider Electric

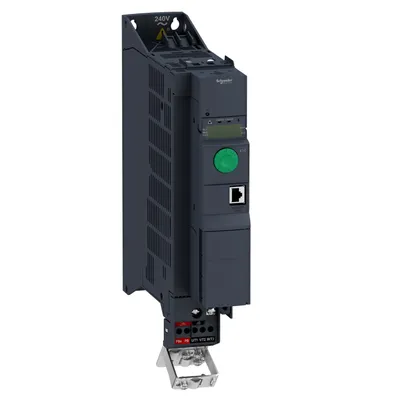

ATV320U11M2B

Variable speed drive, ATV320, 1.1 kW, 200…240 V, 1 phase, book

Schneider Electric

ATV320U07S6C

Variable speed drive, Altivar Machine ATV320, 0.75 kW, 525...600 V, 3 phases, compact

Schneider Electric

ATV320U07N4W

Variable speed drive, Altivar Machine ATV320, 0.75 kW, 380...500 V, 3 phases, enclosed

Schneider Electric

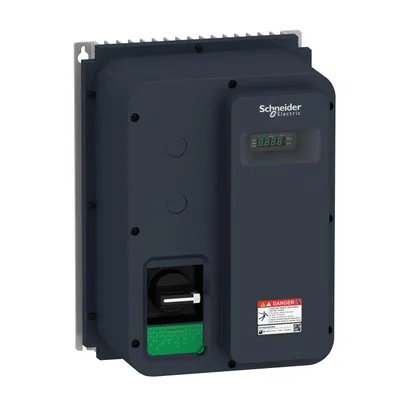

ATV320U07N4WS

Variable speed drive, Altivar Machine ATV320, 0.75 kW, 380...500 V, 3 phases, enclosed

Schneider Electric

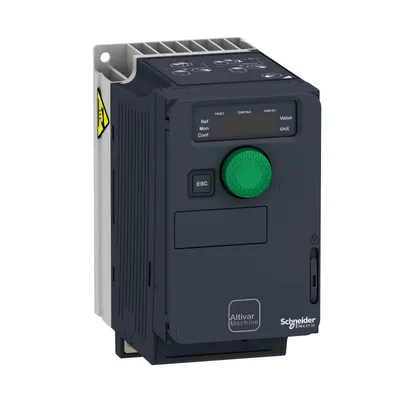

ATV320U07M3C

Variable speed drive, ATV320, 0.75 kW, 200…240 V, 3 phases, compact

Schneider Electric

ATV320U07N4C

Variable speed drive, ATV320, 0.75 kW, 380…500 V, 3 phases, compact

Schneider Electric

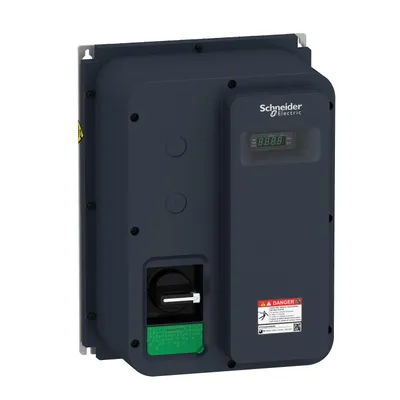

ATV320U07M2WS

Variable speed drive, Altivar Machine ATV320, 0.75 kW, 200...240 V, 1 phase, enclosed

Schneider Electric

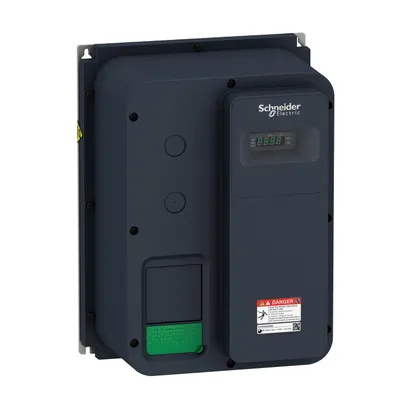

ATV320U07M2W

Variable speed drive, Altivar Machine ATV320, 0.75 kW, 200...240 V, 1 phase, enclosed

Schneider Electric

ATV320U07N4B

Variable speed drive, ATV320, 0.75 kW, 380…500 V, 3 phases, book

Schneider Electric

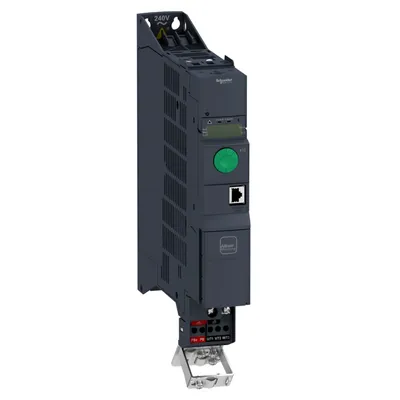

ATV320U07M2B

Variable speed drive, ATV320, 0.75 kW, 200…240 V, 1 phase, book

Schneider Electric

ATV320U07M2C

Variable speed drive, ATV320, 0.75 kW, 200…240 V, 1 phase, compact

Schneider Electric

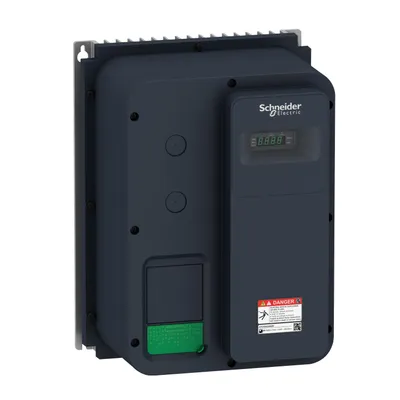

ATV320U06N4W

Variable speed drive, Altivar Machine ATV320, 0.55 kW, 380...500 V, 3 phases, enclosed

Schneider Electric

ATV320U06N4WS

Variable speed drive, Altivar Machine ATV320, 0.55 kW, 380...500 V, 3 phases, enclosed

Schneider Electric

ATV320U06N4C

Variable speed drive, ATV320, 0.55 kW, 380…500 V, 3 phases, compact

Schneider Electric

ATV320U06N4B

Variable speed drive, ATV320, 0.55 kW, 380…500 V, 3 phases, book

Schneider Electric

ATV320U06M3C

Variable speed drive, ATV320, 0.55 kW, 200…240 V, 3 phases, compact

Schneider Electric

ATV320U06M2WS

Variable speed drive, Altivar Machine ATV320, 0.55 kW, 200...240 V, 1 phase, enclosed

Schneider Electric

ATV320U06M2W

Variable speed drive, Altivar Machine ATV320, 0.55 kW, 200...240 V, 1 phase, enclosed

Schneider Electric

ATV320U06M2C

Variable speed drive, ATV320, 0.55 kW, 200…240 V, 1 phase, compact

Schneider Electric

ATV320U06M2B

Variable speed drive, ATV320, 0.55 kW, 200…240 V, 1 phase, book

Schneider Electric

ATV320U04N4WS

Variable speed drive, Altivar Machine ATV320, 0.37 kW, 380...500 V, 3 phases, enclosed

Compare Altivar Machine ATV320

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	nominal output current	Maximum input current	Apparent power	Base load current at high overload	Net weight
ATV320U11M2WS	6.9 A	13.7 A	2.8 kVA at 240 V (heavy duty)	3.9 A	7.8 kg
ATV320U11M2W	6.9 A	13.7 A	2.8 kVA at 240 V (heavy duty)	2.7 A	7.4 kg
ATV320U11M2C	6.9 A	13.7 A	2.8 kVA at 240 V (heavy duty)	1.7 A	1.6 kg
ATV320U11M2B	6.9 A	13.6 A	2.8 kVA at 240 V (heavy duty)	33.0 A	2.9 kg
ATV320U07S6C	1.7 A	1.5 A	1.5 kVA at 600 V (heavy duty)	27.7 A	1.27 kg
ATV320U07N4W	2.3 A	3.6 A	2.4 kVA at 500 V (heavy duty)	9.5 A	5.9 kg
ATV320U07N4WS	2.3 A	3.6 A	2.4 kVA at 500 V (heavy duty)	14.3 A	6.3 kg
ATV320U07M3C	4.8 A	6.3 A	2.2 kVA at 240 V (heavy duty)	2.3 A	1 kg
ATV320U07N4C	2.3 A	3.6 A	2.4 kVA at 500 V (heavy duty)	7.1 A	1.2 kg
ATV320U07M2WS	4.8 A	10.1 A	2.0 kVA at 240 V (heavy duty)	1.9 A	5.5 kg
ATV320U07M2W	4.8 A	10.1 A	2.0 kVA at 240 V (heavy duty)	1.5 A	5.1 kg
ATV320U07N4B	2.3 A	3.6 A	2.3 kVA at 500 V (heavy duty)	3.0 A	2.5 kg
ATV320U07M2B	4.8 A	10.1 A	2.0 kVA at 240 V (heavy duty)	17.0 A	2.4 kg
ATV320U07M2C	4.8 A	10.1 A	2.0 kVA at 240 V (heavy duty)	33.0 A	1.1 kg
ATV320U06N4W	1.9 A	2.8 A	1.9 kVA at 500 V (heavy duty)	9.5 A	5.9 kg
ATV320U06N4WS	1.9 A	2.8 A	1.9 kVA at 500 V (heavy duty)	14.3 A	6.3 kg
ATV320U06N4C	1.9 A	2.8 A	1.9 kVA at 500 V (heavy duty)	7.1 A	1.2 kg
ATV320U06N4B	1.9 A	2.8 A	1.9 kVA at 500 V (heavy duty)	4.1 A	2.5 kg
ATV320U06M3C	3.7 A	4.9 A	1.7 kVA at 240 V (heavy duty)	3.0 A	1 kg
ATV320U06M2WS	3.7 A	7.8 A	1.6 kVA at 240 V (heavy duty)	2.3 A	5.5 kg
ATV320U06M2W	3.7 A	7.8 A	1.6 kVA at 240 V (heavy duty)	1.9 A	5.1 kg
ATV320U06M2C	3.7 A	7.8 A	1.6 kVA at 240 V (heavy duty)	1.5 A	1.1 kg
ATV320U06M2B	3.7 A	7.9 A	1.6 kVA at 240 V (heavy duty)	66.0 A	2.4 kg
ATV320U04N4WS	1.5 A	2.1 A	1.4 kVA at 500 V (heavy duty)	54.0 A	6.3 kg

Common to all listed parts

Range of product	Altivar Machine ATV320
Product or component type	Variable speed drive
Product specific application	Complex machines
Communication port protocol	Modbus serial; CANopen
Discrete input number	7
Discrete input logic	Positive logic (source); Negative logic (sink)
Discrete output number	3
Analogue input number	3
