EC Titanium™ (General Purpose SP5+) Parts
Compare EC Titanium™ (General Purpose SP5+)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Catalog Number | Rated Efficiency | Output Power | Motor Frame Size | Product Net Weight |
|---|---|---|---|---|---|
| ECS101A3K2P2EF4 | ECS101A3K2P2EF4 | 91.40 % | 2.2 kW kW | 112 | 84 lb |
| ECS101T3K5P5FD4 | ECS101T3K5P5FD4 | 92.20 % | 5.5 kW kW | D132D | 162 lb |
| ECS101A2H5EF4 | ECS101A2H5EF4 | 93.70 % | 5 Hp | 184T | 100 lb |
| ECS101M0H3EC4 | ECS101M0H3EC4 | 92.80 % | 3 Hp | 182TC | 85 lb |
| ECS101M0H3DC4 | ECS101M0H3DC4 | 91.0 % | 3 Hp | 145TC | 51 lb |
| ECS101A4H2DF4 | ECS101A4H2DF4 | 91.9 % | 2 Hp | 145T | 42 lb |
| ECS101M0K3EC4 | ECS101M0K3EC4 | 92.40 % | 3 kW kW | 112 | 97 lb |
| ECS101T3K3ED4 | ECS101T3K3ED4 | 92.40 % | 3 kW kW | D112D | 97 lb |
| ECS101T3K0P8DC4 | ECS101T3K0P8DC4 | 89.2 % | 0.75 kW kW | D90C | 47 lb |
| ECS100A2H5EC4 | ECS100A2H5EC4 | 93.70 % | 5 Hp | 184TC | 98 lb |
| ECS100T2H2DC4 | ECS100T2H2DC4 | 91.3 % | 2 Hp | 145TC | 42 lb |
| ECS101A3K1P5DF4 | ECS101A3K1P5DF4 | 87.7 % | 1.5 kW kW | D90S | 42 lb |

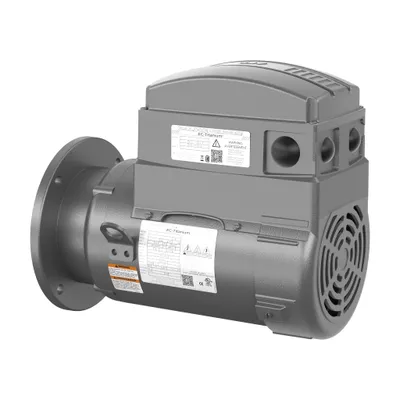

| ECS101T3K2P2ED4 | ECS101T3K2P2ED4 | 91.40 % | 2.2 kW kW | D112D | 84 lb |
| ECS100T4H7EC4 | ECS100T4H7EC4 | 94 % | 7.5 Hp | 184TC | 151 lb |
| ECS100T4H7FC4 | ECS100T4H7FC4 | 94.70 % | 7.5 Hp | 213TC | 167 lb |
| ECS100A2H1DC4 | ECS100A2H1DC4 | 91.0 % | 1 Hp | 143TC | 48 lb |
| ECS100A8H1DB4 | ECS100A8H1DB4 | 91.0 % | 1 Hp | 145TC | 48 lb |
| ECS101A3K0P8DF4 | ECS101A3K0P8DF4 | 89.2 % | 0.75 kW kW | D90S | 47 lb |
| ECS101M0H1DF4 | ECS101M0H1DF4 | 88.2 % | 1 Hp | 145T | 28 lb |
| ECC101M0H7FF4 | ECC101M0H7FF4 | 94 % | 7.50 Hp | 213T | 162 lb |
| ECC101M0H7EF4 | ECC101M0H7EF4 | — | — | — | 147 lb |
| ECS101T3K1P5DD4 | ECS101T3K1P5DD4 | 87.7 % | 1.5 kW kW | D90D | 42 lb |

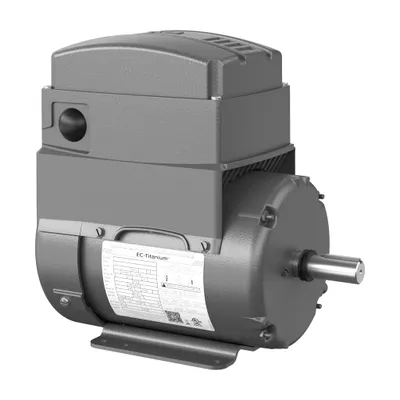

| ECS101T1H1DF4 | ECS101T1H1DF4 | 91.0 % | 1 Hp | 143T | 37 lb |
| ECS101T3K0P8DD4 | ECS101T3K0P8DD4 | 89.2 % | 0.75 kW kW | D90D | 47 lb |
Common to all listed parts
| Country or Territory of Origin | United States |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
