Shaft grounded Parts

ABB

EM4110T-BG

40HP,1775RPM,3PH,60HZ,324T,1254M,TE

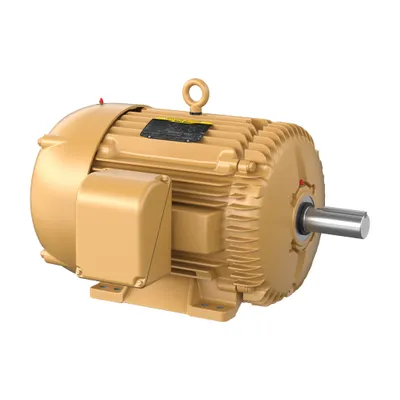

ABB

EM4110T-5G

40HP,1775RPM,3PH,60HZ,324T,1254M,TE

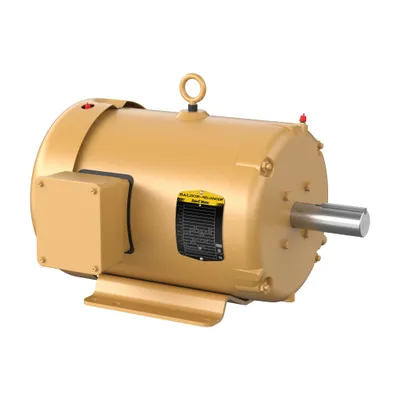

ABB

EM3711T-G

10HP,3490RPM,3PH,60HZ,215T,3728M,TE

ABB

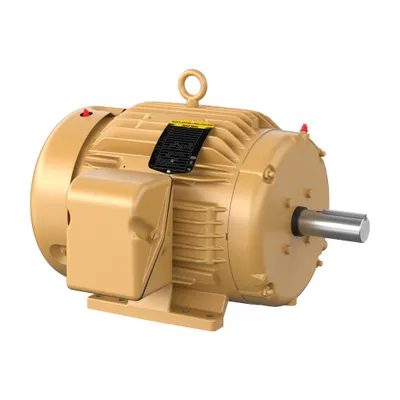

EM3771T-G

10HP,3490RPM,3PH,60HZ,215T,TEFC,F1

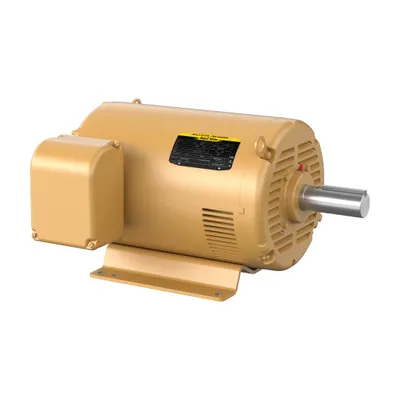

ABB

EM2532T-G

25HP,1180RPM,3PH,60HZ,324T,4072M,OP

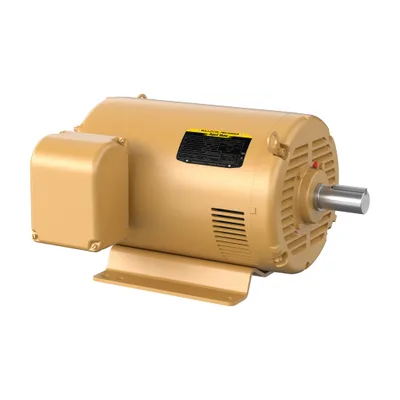

ABB

EM2542T-G

50HP,3525RPM,3PH,60HZ,324TS,4058M,O

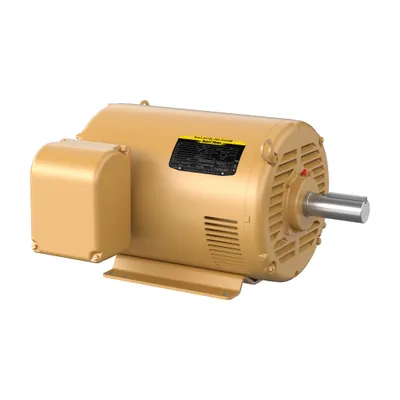

ABB

EM2535T-G

30HP,1775RPM,3PH,60HZ,286T,4060M,OP

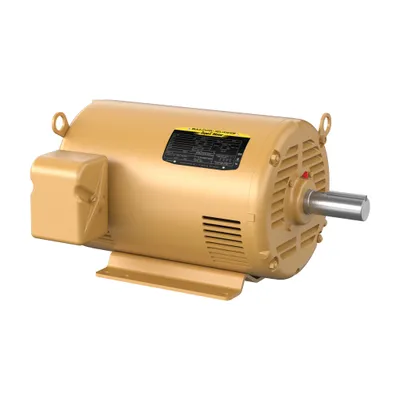

ABB

EM2515T-G

20HP,1765RPM,3PH,60HZ,256T,3948M,OP

ABB

EM3555T-G

2HP,3490RPM,3PH,60HZ,145T,3526M,TEF

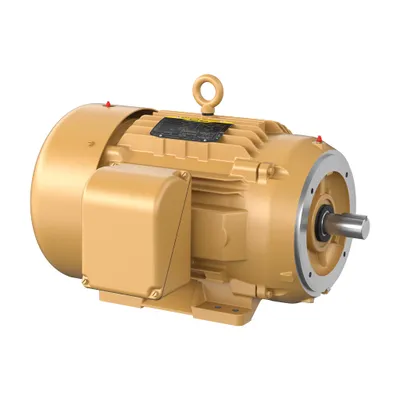

ABB

CEM4107T-G

25HP,3520RPM,3PH,60HZ,284TSC,TEFC,F

ABB

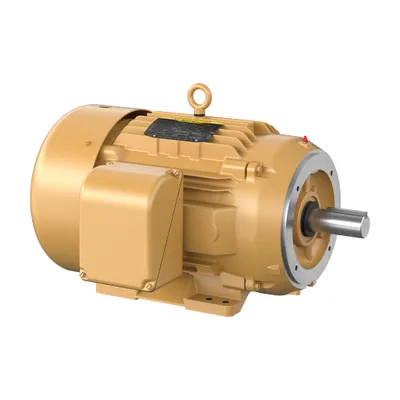

CEM4104T-G

30HP,1760RPM,3PH,60HZ,286TC,TEFC,F1

ABB

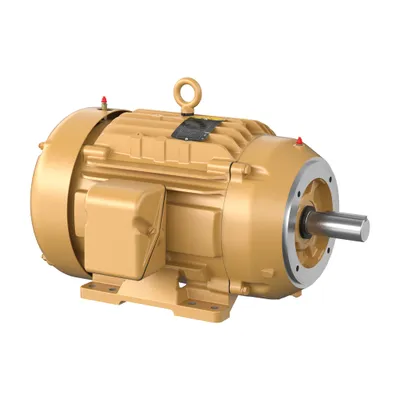

CEM4106T-G

20HP,3520RPM,3PH,60HZ,256TC,TEFC,F1

ABB

CEM4100T-G

15HP,1175RPM,3PH,60HZ,284TC,TEFC,F1

ABB

CEM4102T-G

20HP,1180RPM,3PH,60HZ,286TC,TEFC,F1

ABB

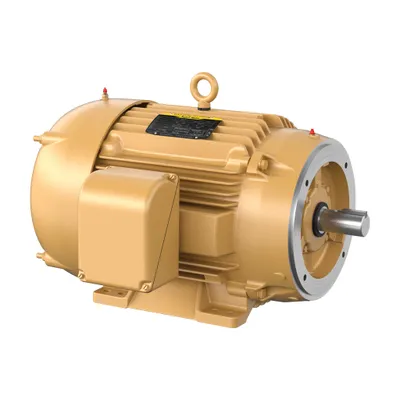

CEM4109T-G

40HP,3530RPM,3PH,60HZ,324TSC,TEFC,F

ABB

CEM4103T-G

25HP,1775RPM,3PH,60HZ,284TC,TEFC,F1

ABB

CEM4108T-G

30HP,3525RPM,3PH,60HZ,286TSC,TEFC,F

ABB

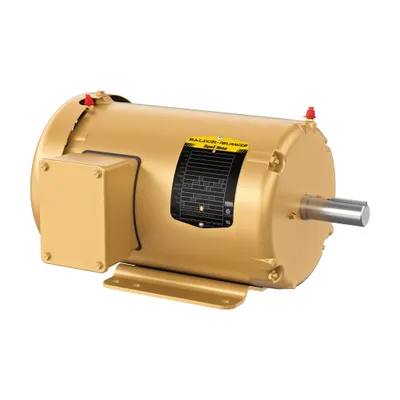

EM3559T-G

3HP,3450RPM,3PH,60HZ,145T,3532M,TEF

ABB

EM2539T-G

40HP,1770RPM,3PH,60HZ,324T,4064M,OP

ABB

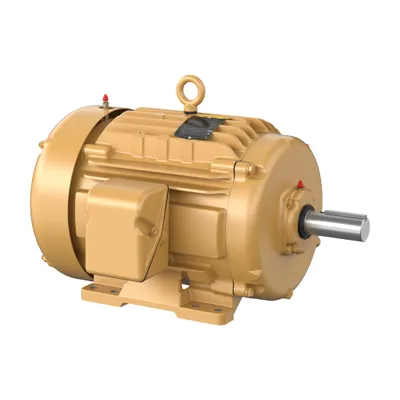

EM2332T-G

10HP,1180RPM,3PH,60HZ,256T,0960M,TE

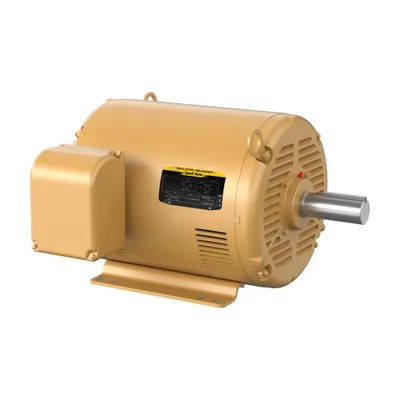

ABB

EM2543T-5BG

50HP,1775RPM,3PH,60HZ,326T,4256M,OP

ABB

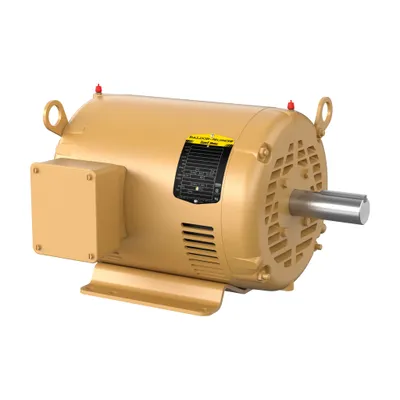

EM3309T-G

5HP,1160RPM,3PH,60HZ,215T,3744M,OPS

ABB

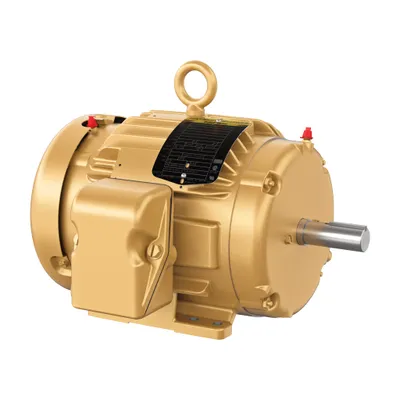

EM3582T-G

1HP,1170RPM,3PH,60HZ,143T,0526M,TEF

ABB

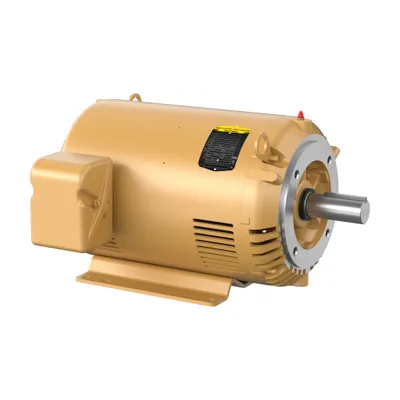

CEM2513T-G

15HP,1765RPM,3PH,60HZ,254TC,OPSB,F1

Compare Shaft grounded

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Power Factor	Motor Frame Size	Product Net Weight	Dimension Diagram
EM4110T-BG	EM4110T-BG	82 %	324T	578 lb	12LYG931
EM4110T-5G	EM4110T-5G	82 %	324T	576 lb	12LYF882
EM3711T-G	EM3711T-G G	88 %	215T	118 lb	37LYJ838
EM3771T-G	EM3771T-G G	87 %	215T	164 lb	07LYL783
EM2532T-G	EM2532T-G G	76 %	324T	384 lb	40LYE245
EM2542T-G	EM2542T-G G	90 %	324TS	375 lb	40LYE295
EM2535T-G	EM2535T-G G	82 %	286T	370 lb	40LYE246
EM2515T-G	EM2515T-G G	85 %	256T	227 lb	39LYE366
EM3555T-G	EM3555T-G G	88 %	145T	46 lb	35LYZ944
CEM4107T-G	CEM4107T-G G	90 %	284TSC	323 lb	10LYJ281
CEM4104T-G	CEM4104T-G G	80 %	286TC	410 lb	10LYJ646
CEM4106T-G	CEM4106T-G G	89 %	256TC	271 lb	09LYL284
CEM4100T-G	CEM4100T-G G	73 %	284TC	369 lb	10LYJ646
CEM4102T-G	CEM4102T-G G	77 %	286TC	393 lb	10LYJ646
CEM4109T-G	CEM4109T-G G	91 %	324TSC	532 lb	12LYG381
CEM4103T-G	CEM4103T-G G	81 %	284TC	420.001 lb	10LYJ646
CEM4108T-G	CEM4108T-G G	90 %	286TSC	419 lb	10LYJ281
EM3559T-G	EM3559T-G G	92 %	145T	53 lb	35LYZ944
EM2539T-G	EM2539T-G G	82 %	324T	395.999 lb	40LYE245
EM2332T-G	EM2332T-G G	72 %	256T	291 lb	09LYJ359
EM2543T-5BG	EM2543T-5BG	87 %	326T	525 lb	42LYE307
EM3309T-G	EM3309T-G G	71 %	215T	141 lb	37LYJ839
EM3582T-G	EM3582T-G G	65 %	143T	56 lb	05LYG784
CEM2513T-G	CEM2513T-G G	83 %	254TC	251 lb	39LYE477

Common to all listed parts

Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Ambient Temperature	40 °C
Duty Time	60 Min
Number of Phases	3-phase
Number of Speeds	Single Speed
