Acti9 iDPN Vigi Parts

Schneider Electric

A9XMLA02

Act9 - locking clips for Smartlink with Linergy FM 80A

Schneider Electric

A9XMFA04

Acti 9 - mounting kit for Smartlink on DIN rail

Schneider Electric

A9D69632

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 32A, B curve, 6000A, A type, 300mA

Schneider Electric

A9D69620

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 20A, B curve, 6000A, A type, 300mA

Schneider Electric

A9D69616

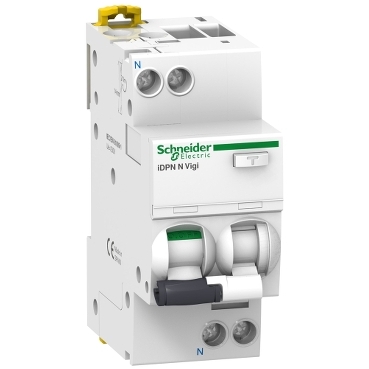

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, B curve, 6000A, A type, 300mA

Schneider Electric

A9D69610

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 10A, B curve, 6000A, A type, 300mA

Schneider Electric

A9D56632

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 32A, B curve, 6000A, A type, 30mA

Schneider Electric

A9D56625

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, B curve, 6000A, A type, 30mA

Schneider Electric

A9D56620

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 20A, B curve, 6000A, A type, 30mA

Schneider Electric

A9D56604

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA

Schneider Electric

A9D54632

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPNa Vigi, 1P+N, 32A, B curve, 4500A, A type, 30mA

Schneider Electric

A9D54620

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPNa Vigi, 1P+N, 20A, B curve, 4500A, A type, 30mA

Schneider Electric

A9D52625

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 100mA

Schneider Electric

A9D52620

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 20A, C curve, 6000A, A type, 100mA

Schneider Electric

A9D52616

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 100mA

Schneider Electric

A9D52610

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 10A, C curve, 6000A, A type, 100mA

Schneider Electric

A9D48616

Residual current breaker with overcur. prot. (RCBO), Acti9 iDPN H Vigi, 1P+N, 16A, C curve, 10000A, A-SI type, 300mA

Schneider Electric

A9D43616

Residual current breaker with overcur. prot. (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A-SI type, 300mA

Schneider Electric

A9D42632

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 32A, C curve, 6000A, A type, 300mA

Schneider Electric

A9D42620

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 20A, C curve, 6000A, A type, 300mA

Schneider Electric

A9D42606

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 6A, C curve, 6000A, A type, 300mA

Schneider Electric

A9D37625

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN H Vigi, 1P+N, 25A, C curve, 10000A, A type, 30mA

Schneider Electric

A9D37616

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN H Vigi, 1P+N, 16A, C curve, 10000A, A type, 30mA

Schneider Electric

A9D35632

Residual current breaker with overcurrent protection (RCBO), Acti9 iDPNa Vigi, 1P+N, 32A, C curve, 4500A, A type, 30mA

Compare Acti9 iDPN Vigi

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Device short name	[In] rated current	Curve code	Earth-leakage sensitivity	Magnetic tripping limit
A9XMLA02	locking clips for multiclip 80	—	—	—	—
A9XMFA04	mounting kit for DIN rail	—	—	—	—
A9D69632	iDPN N Vigi	32 A	B	300 mA	3...5 x In
A9D69620	iDPN N Vigi	20 A	B	300 mA	3...5 x In
A9D69616	iDPN N Vigi	16 A	B	300 mA	3...5 x In
A9D69610	iDPN N Vigi	10 A	B	300 mA	3...5 x In
A9D56632	iDPN N Vigi	32 A	B	30 mA	3...5 x In
A9D56625	iDPN N Vigi	25 A	B	30 mA	3...5 x In
A9D56620	iDPN N Vigi	20 A	B	30 mA	3...5 x In
A9D56604	iDPN N Vigi	4 A	B	30 mA	3...5 x In
A9D54632	iDPNa Vigi	32 A	B	30 mA	3...5 x In
A9D54620	iDPNa Vigi	20 A	B	30 mA	3...5 x In
A9D52625	iDPN N Vigi	25 A	C	100 mA	5...10 x In
A9D52620	iDPN N Vigi	20 A	C	100 mA	5...10 x In
A9D52616	iDPN N Vigi	16 A	C	100 mA	5...10 x In
A9D52610	iDPN N Vigi	10 A	C	100 mA	5...10 x In
A9D48616	iDPN H Vigi	16 A	C	300 mA	5...10 x In
A9D43616	iDPN N Vigi	16 A	C	300 mA	5...10 x In
A9D42632	iDPN N Vigi	32 A	C	300 mA	5...10 x In
A9D42620	iDPN N Vigi	20 A	C	300 mA	5...10 x In
A9D42606	iDPN N Vigi	6 A	C	300 mA	5...10 x In
A9D37625	iDPN H Vigi	25 A	C	30 mA	5...10 x In
A9D37616	iDPN H Vigi	16 A	C	30 mA	5...10 x In
A9D35632	iDPNa Vigi	32 A	C	30 mA	5...10 x In

Common to all listed parts

Range

Acti9
