ACH580 Parts

Browse Subcategories

ACH580-01 (301)ACH580-31 (46)ACH580-07 (13)ACH580-34 (12)

ABB

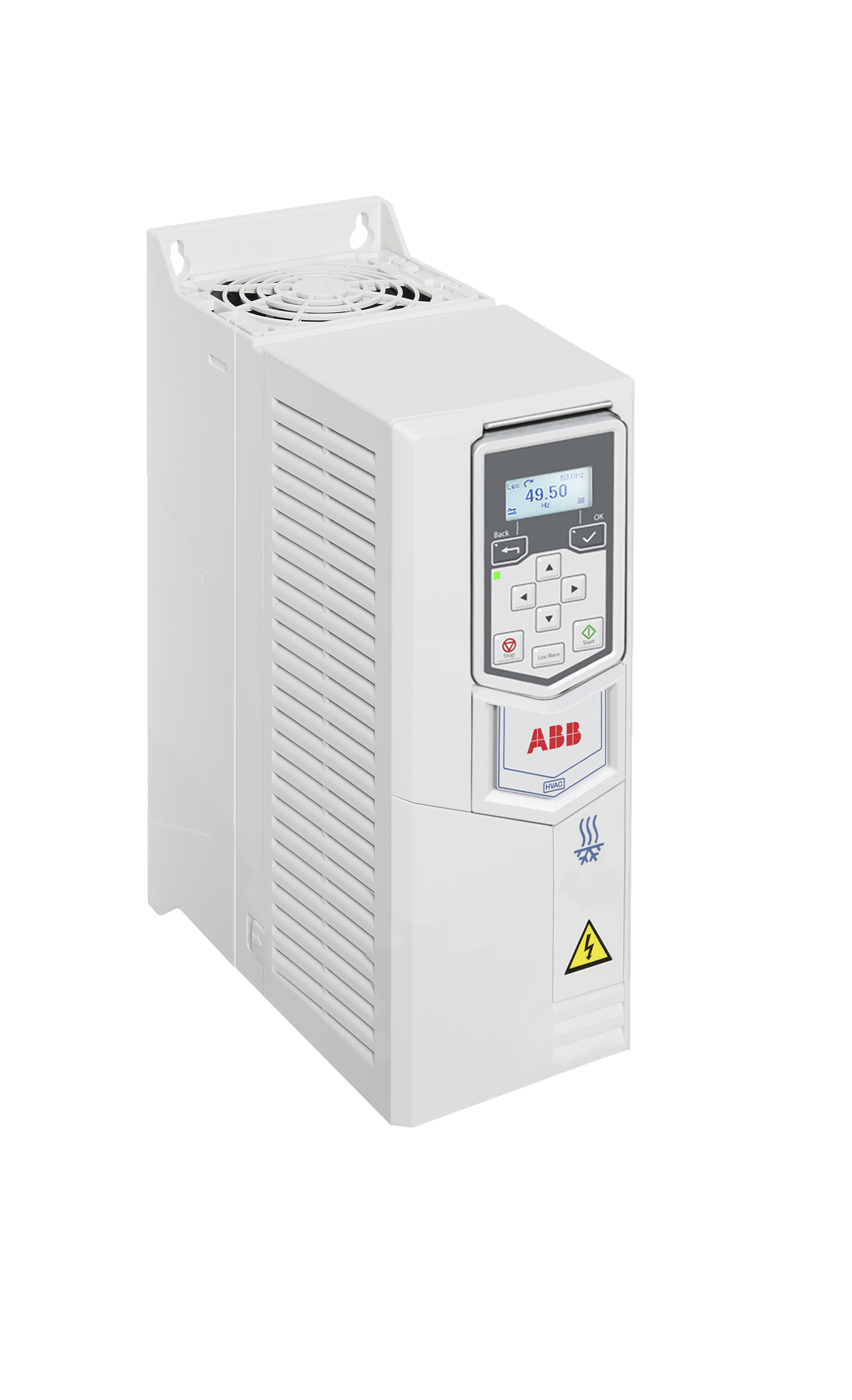

ACH531-01-03A4-4+0J404

LV AC wall-mounted drive for HVAC, IEC: Pn 1.1 kW, 3.3 A ( )

ABB

ACH580-PDR-034A-4+B058

HVAC drive with disconnect US, UL: Pld 25 Hp, 34 A ( )

ABB

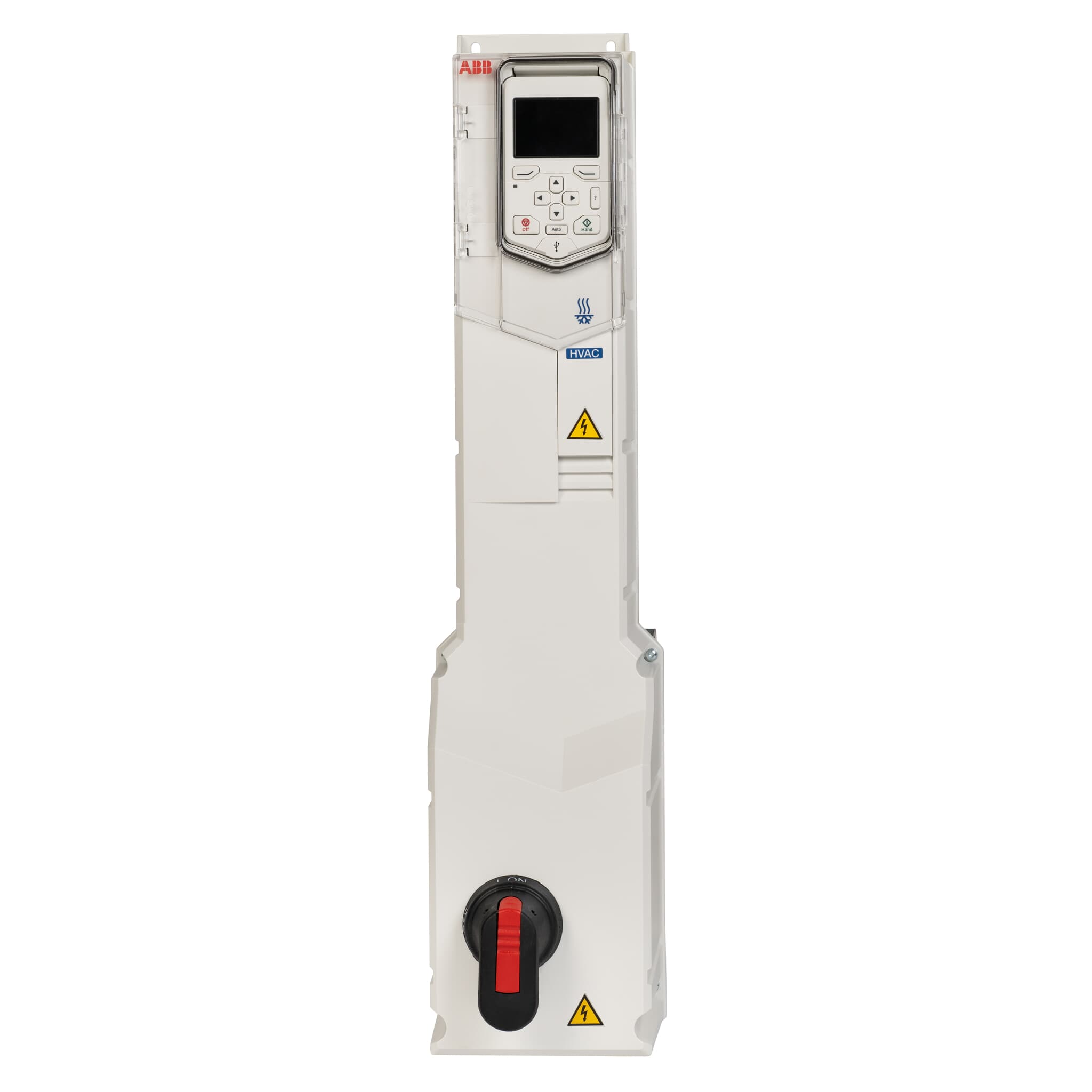

ACH580-PDR-065A-4+B058

HVAC drive with disconnect US, UL: Pld 50 Hp, 65 A ( )

ABB

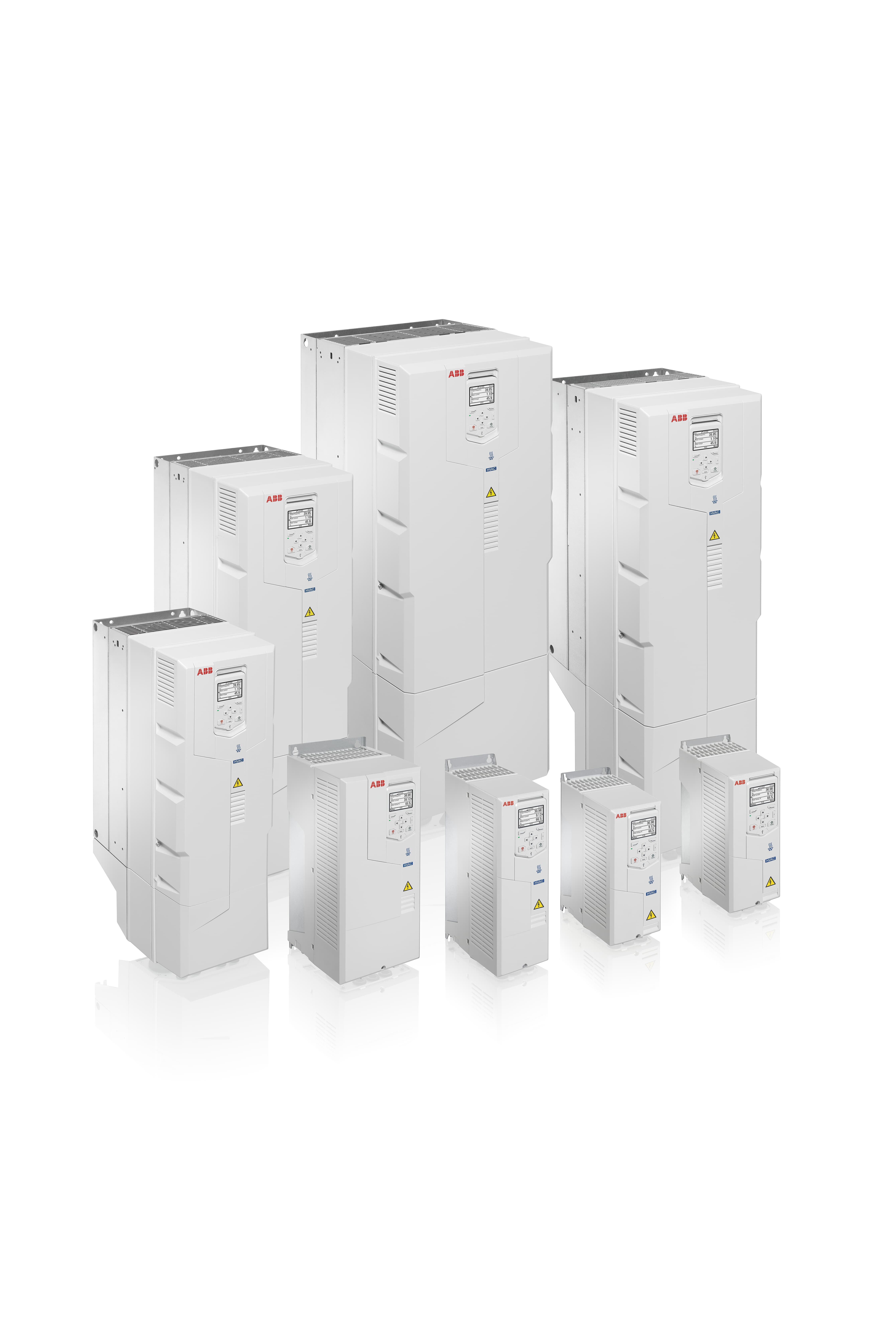

ACH580-3PDR-012A-4

HVAC packaged ultra-low harmonic drive with non-fused…

ABB

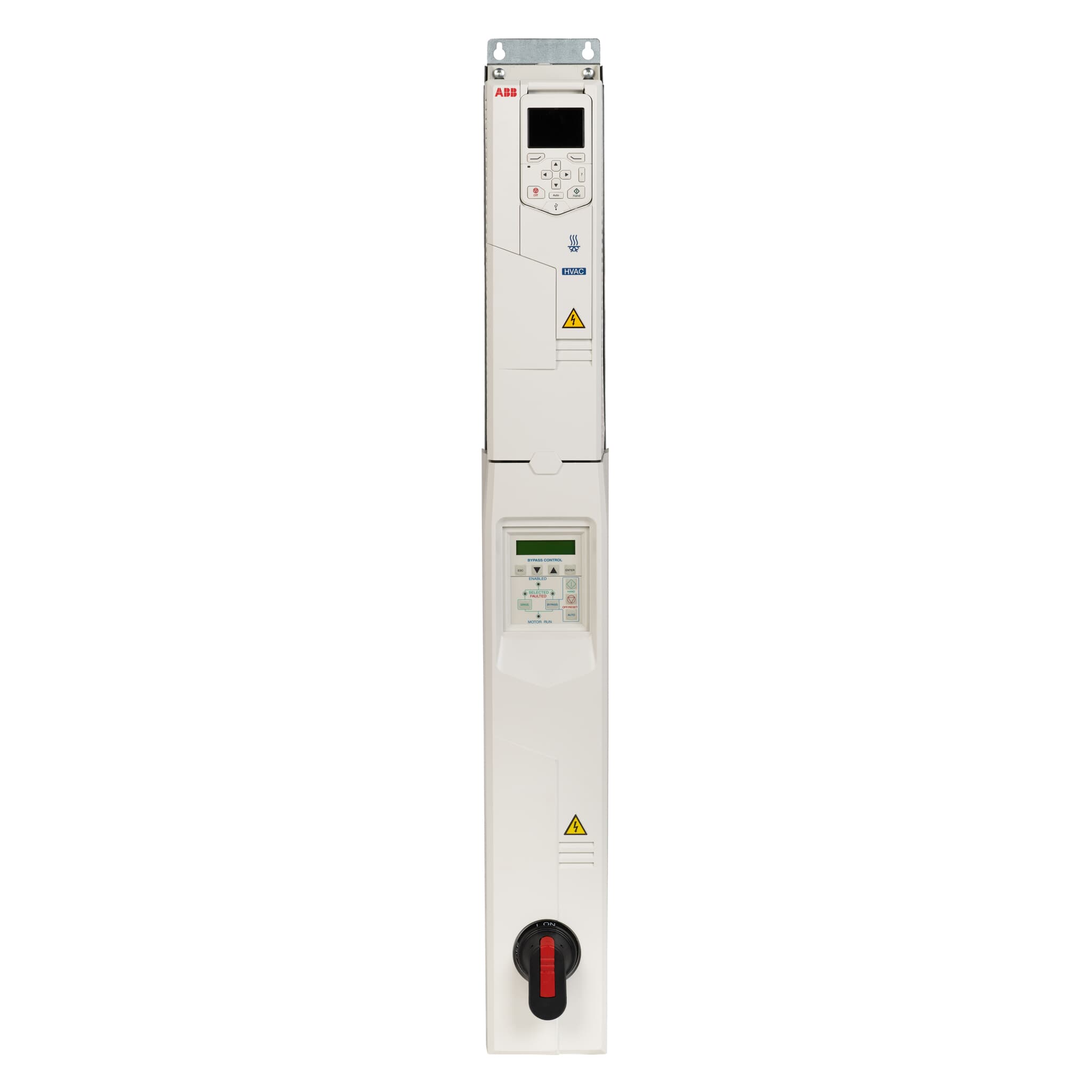

ACH580-VCR-075A-2

HVAC drive with vertical e-clipse bypass and circuit…

ABB

ACH580-BDR-059A-2+B056

HVAC packaged drive with e-clipse bypass and disconnect US

ABB

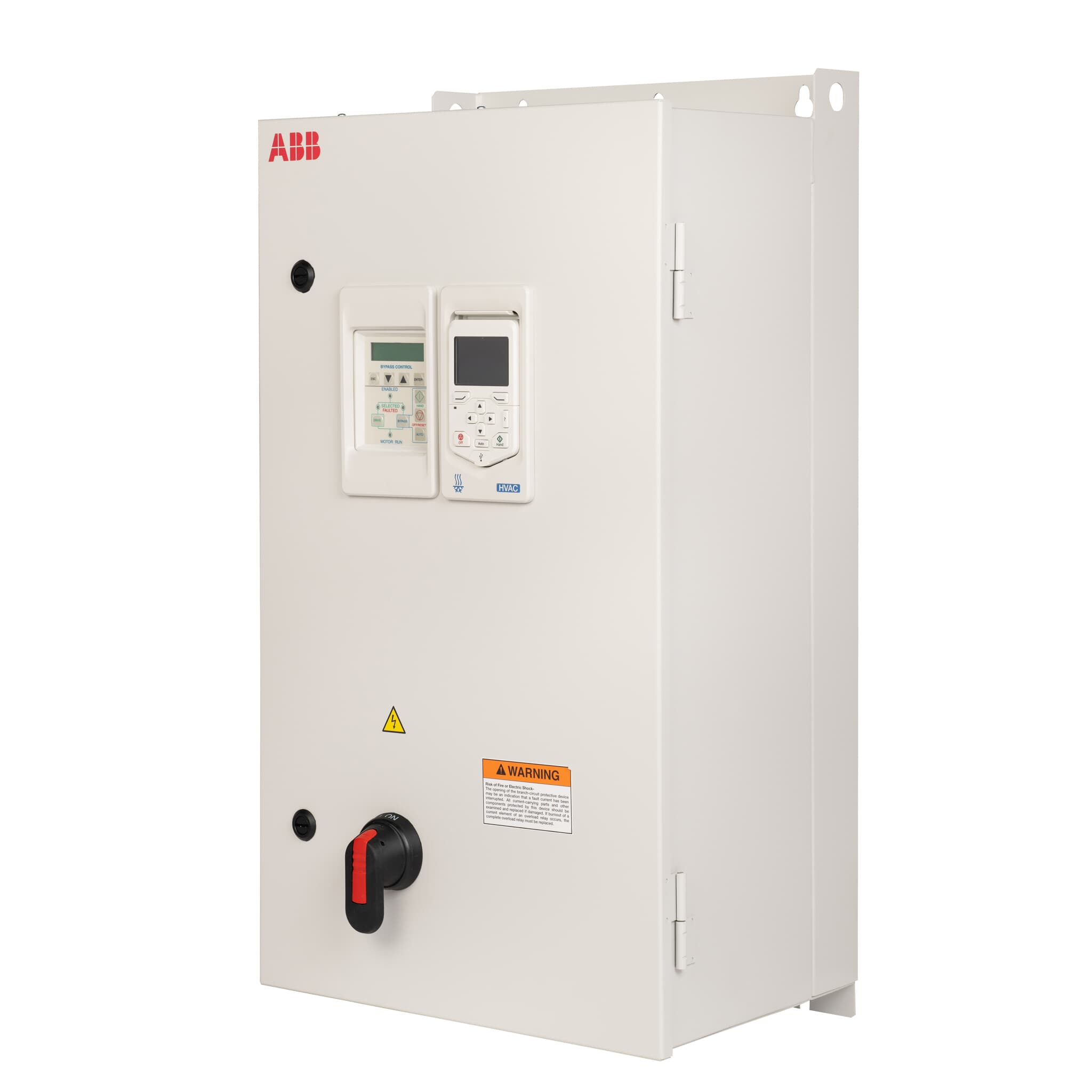

ACH580-BDR-046A-2+B056

HVAC packaged drive with e-clipse bypass and disconnect US

ABB

ACH580-PDR-03A9-6

HVAC drive with disconnect US, UL: Pld 3 Hp, 3.9 A

ABB

ACH580-PDR-180A-4+B056

HVAC drive with disconnect US, UL: Pld 150 Hp, 180 A ( )

ABB

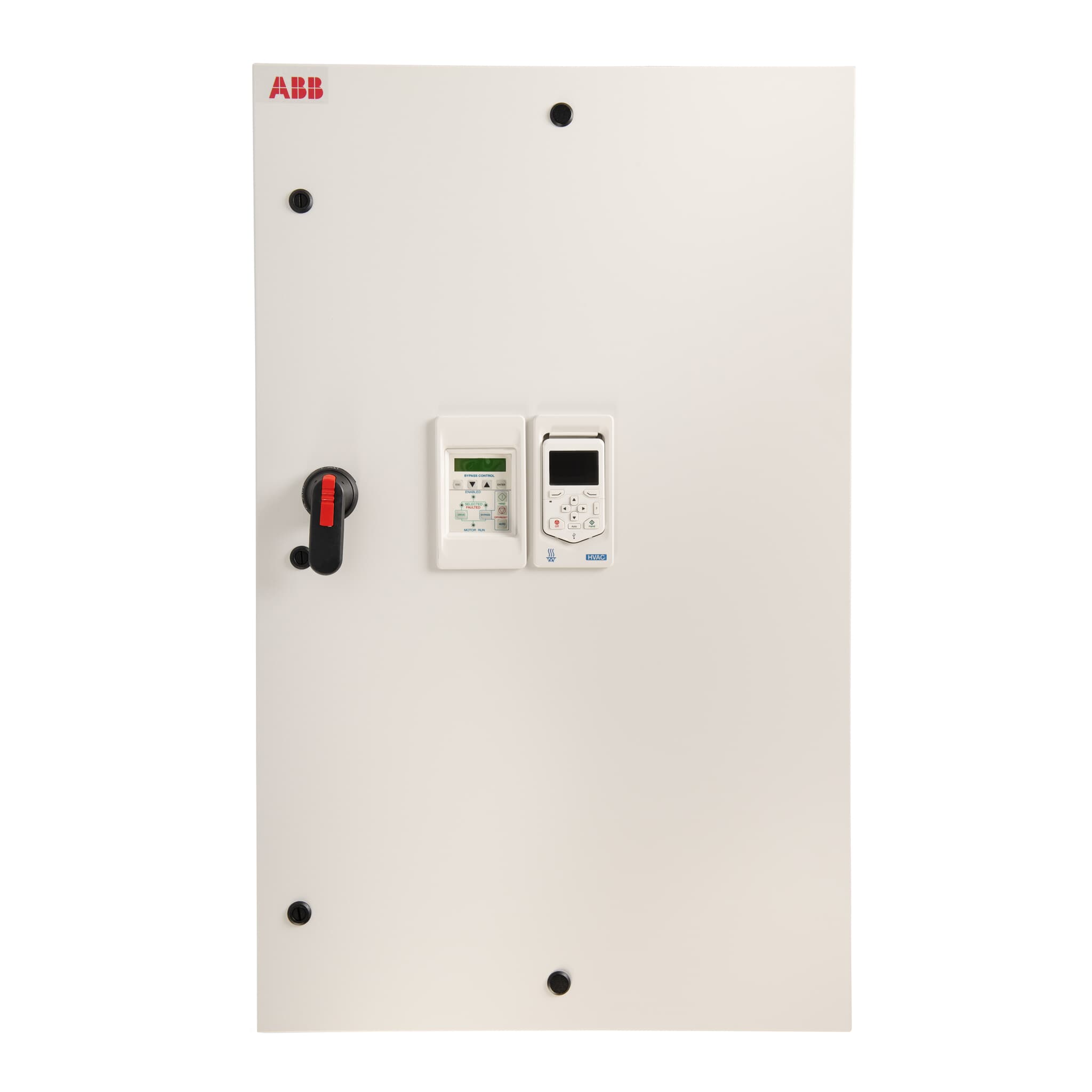

ACH580-BDR-09A0-6

HVAC packaged drive with e-clipse bypass and disconnect US

ABB

ACH580-BDR-011A-6

HVAC packaged drive with e-clipse bypass and disconnect US

ABB

ACH580-BCR-088A-2+B056

HVAC packaged drive with e-clipse bypass and circuit…

ABB

ACH580-BCR-046A-2+B056

HVAC packaged drive with e-clipse bypass and circuit…

ABB

ACH580-BCR-059A-2+B056

HVAC packaged drive with e-clipse bypass and circuit…

ABB

ACH580-BCR-031A-2+B056

HVAC packaged drive with e-clipse bypass and circuit…

ABB

ACH580-PCR-04A6-2+B056

HVAC drive with circuit breaker disconnect US, UL: Pld 1 Hp

ABB

ACH580-VDR-012A-4

HVAC drive with vertical e-clipse bypass and circuit…

ABB

ACH531-01-03A4-4

LV AC wall-mounted drive for HVAC, IEC: Pn 1.1 kW, 3.3 A ( )

ABB

ACH580-BDR-027A-6

HVAC packaged drive with e-clipse bypass and disconnect US

ABB

ACH580-BDR-062A-6

HVAC packaged drive with e-clipse bypass and disconnect US

ABB

ACH580-BDR-077A-6

HVAC packaged drive with e-clipse bypass and disconnect US

ABB

ACH580-PCR-240A-4

HVAC drive with circuit breaker disconnect US

ABB

ACH580-BDR-114A-2

HVAC packaged drive with e-clipse bypass and disconnect US

ABB

ACH580-BDR-273A-2

HVAC packaged drive with e-clipse bypass and disconnect US

Compare ACH580

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product Net Weight	Enclosure Type NEMA	Input Voltage (Uin)	Output Current, Light-Overload Use (UL)	Output Power, Light-Overload Use (UL)
ACH531-01-03A4-4+0J404	4 kg kg	Open Type	380 … 500 V V	—	—
ACH580-PDR-034A-4+B058	0 kg kg	Type3R	380 … 480 V V	34 A A	25 Hp
ACH580-PDR-065A-4+B058	0 kg kg	Type3R	380 … 480 V V	65 A A	50 Hp
ACH580-3PDR-012A-4	80 lb	Type1	440 … 480 V V	12 A A	7.5 Hp
ACH580-VCR-075A-2	86 lb	Type1	208 … 240 V V	74.8 A A	25 Hp
ACH580-BDR-059A-2+B056	0 kg kg	Type12	208 … 240 V V	59.4 A A	20 Hp
ACH580-BDR-046A-2+B056	0 kg kg	Type12	208 … 240 V V	46.2 A A	15 Hp
ACH580-PDR-03A9-6	22 lb	Type1	500 … 600 V V	3.9 A A	3 Hp
ACH580-PDR-180A-4+B056	0 kg kg	Type12	380 … 480 V V	180 A A	150 Hp
ACH580-BDR-09A0-6	84 lb	Type1	500 … 600 V V	9 A A	7.5 Hp
ACH580-BDR-011A-6	84 lb	Type1	500 … 600 V V	11 A A	10 Hp
ACH580-BCR-088A-2+B056	0 kg kg	Type12	208 … 240 V V	88 A A	30 Hp
ACH580-BCR-046A-2+B056	0 kg kg	Type12	208 … 240 V V	46.2 A A	15 Hp
ACH580-BCR-059A-2+B056	0 kg kg	Type12	208 … 240 V V	59.4 A A	20 Hp
ACH580-BCR-031A-2+B056	0 kg kg	Type12	208 … 240 V V	30.8 A A	10 Hp
ACH580-PCR-04A6-2+B056	0 kg kg	Type12	208 … 240 V V	4.6 A A	1 Hp
ACH580-VDR-012A-4	30 lb	Type1	440 … 480 V V	12 A A	7.5 Hp
ACH531-01-03A4-4	4 kg kg	Open Type	380 … 480 V V	—	—
ACH580-BDR-027A-6	139 lb	Type1	500 … 600 V V	27 A A	25 Hp
ACH580-BDR-062A-6	390 lb	Type1	500 … 600 V V	62 A A	60 Hp
ACH580-BDR-077A-6	390 lb	Type1	500 … 600 V V	77 A A	75 Hp
ACH580-PCR-240A-4	359 lb	Type1	380 … 480 V V	240 A A	200 Hp
ACH580-BDR-114A-2	390 lb	Type1	208 … 240 V V	114 A A	40 Hp
ACH580-BDR-273A-2	0 lb	Type1	208 … 240 V V	273 A A	100 Hp

Common to all listed parts

Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Number of Phases	3-phase
