Power Capacitors Parts

Siemens

4RB8400-3EA20

Siemens

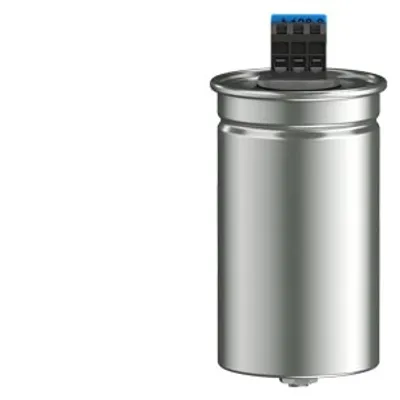

4RB8300-3JA20

Siemens

4RB2230-3EE50

Power capacitor PHICAP MKP 400 V 30.0 kVAr

Siemens

4RB2208-3EE50

Power capacitor PHICAP MKP 440 V 20.8 kVAr

Siemens

4RB2200-3EB50

Power capacitor PHICAP MKP 415 V 20.0 kVAr

Siemens

4RB2167-3GA50

Power capacitor PHICAP MKP 600V 16.7kVAr

Siemens

Siemens

Siemens

Siemens

Power capacitor PHICAP MKP 415 V 1.0 kVAr

Siemens

4RB2007-3CD50

Power capacitor PHICAP MKP 230 V 0.7 kVAr

Siemens

4RB2007-1DJ50

Power capacitor PHICAP MKP 380V 0.7 kVAr

Siemens

4RB2004-3CC50

Power capacitor PHICAP MKP 220V 0.4 kVAr

Siemens

4RB2063-3EB50

Power capacitor PHICAP MKP 415 V 6.3 kVAr

Siemens

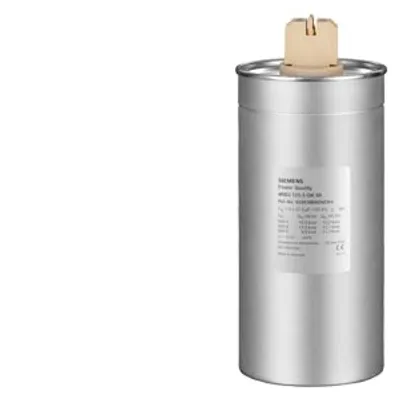

4RB2063-3EA50

Power capacitor PHICAP MKP 400 V 6.3 kVAr

Siemens

4RB2050-3FC50

Power capacitor PHICAP MKP 525V 5.0 kVAr

Siemens

4RB2050-3EJ50

Power capacitor PHICAP MKP 480V 5.0 kVAr

Siemens

4RB2050-3CD50

Power capacitor PHICAP MKP 230 V 5.0 kVAr

Siemens

4RB2075-3EB50

Power capacitor PHICAP MKP 415 V 7.5 kVAr

Siemens

4RB2167-3EE50

Power capacitor PHICAP MKP 440 V 16.7 kVAr

Siemens

4RB2167-3EA50

Power capacitor PHICAP MKP 400 V 16.7 kVAr

Siemens

4RB2150-3EB50

Power capacitor PHICAP MKP 415 V 15.0 kVAr

Siemens

4RB2146-3GA50

Power capacitor PHICAP MKP 600V 14.6 kVAr

Siemens

4RB2025-3EA50

Power capacitor PHICAP MKP 400 V 2.5 kVAr

Compare Power Capacitors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	capacity rated value	reactive power of the capacitor at 50 Hz rated value	reactive power of the capacitor at 60 Hz rated value	capacitor current at 50 Hz rated value	capacitor current at 60 Hz rated value
4RB8400-3EA20	265.2 µF	40 kvar	48 kvar	57.7 A	69.3 A
4RB8300-3JA20	21.7 µF	30 kvar	-9 999 var	9.4 A	11.3 A
4RB2230-3EE50	165 µF	30 kvar	-9 999 var	39.5 A	47.4 A
4RB2208-3EE50	114 µF	20.8 kvar	25 kvar	27.3 A	32.8 A
4RB2200-3EB50	123 µF	20 kvar	24 kvar	27.8 A	33.3 A
4RB2167-3GA50	49 µF	16.7 kvar	20 kvar	16 A	19.2 A
4RB8075-3EE10	41.1 µF	7.5 kvar	9 kvar	9.8 A	11.8 A
4RB8075-3EA20	49.7 µF	7.5 kvar	9 kvar	10.8 A	13 A
4RB8075-3EA10	49.7 µF	7.5 kvar	9 kvar	10.8 A	13 A
4RB2010-3EB50	6 µF	1 kvar	1.2 kvar	1.4 A	1.6 A
4RB2007-3CD50	15 µF	0.7 kvar	0.9 kvar	1.9 A	2.3 A
4RB2007-1DJ50	15 µF	0.7 kvar	0.8 kvar	3.1 A	3.7 A
4RB2004-3CC50	9 µF	0.4 kvar	0.5 kvar	1.1 A	1.3 A
4RB2063-3EB50	39 µF	6.3 kvar	7.5 kvar	8.8 A	10.6 A
4RB2063-3EA50	42 µF	6.3 kvar	7.5 kvar	9.1 A	11 A
4RB2050-3FC50	19.2 µF	5 kvar	6 kvar	5.5 A	6.6 A
4RB2050-3EJ50	23 µF	5 kvar	6 kvar	6 A	7.2 A
4RB2050-3CD50	100 µF	5 kvar	6 kvar	12.5 A	15 A
4RB2075-3EB50	46 µF	7.5 kvar	9 kvar	10.4 A	12.5 A
4RB2167-3EE50	91.5 µF	16.7 kvar	20 kvar	21.9 A	26.3 A
4RB2167-3EA50	111 µF	16.7 kvar	20 kvar	24.2 A	29 A
4RB2150-3EB50	92.5 µF	15 kvar	18 kvar	20.9 A	25.1 A
4RB2146-3GA50	43 µF	14.6 kvar	17.5 kvar	14 A	16.8 A
4RB2025-3EA50	17 µF	2.5 kvar	3 kvar	3.7 A	4.4 A

Common to all listed parts

type of enclosure material	Extruded round aliuminum can with stud
type of mechanical safety	Overpressure disconnector (3-phase)
operating frequency 1 rated value	50 Hz
relative negative tolerance of the capacity rated value	5 %
type of dielectric	Self-healing metallized polypropylene film
safety features of the integrated discharge resistors	Discharge time ≤ 180 s to 75 V or less for safe discharging
voltage test between the terminals	2.15 x VN at 50Hz / 2 s
short-circuit current maximum	10 kA
