Angle head ErgoSpin output drives Parts

Bosch Rexroth

ANGLE HEAD WH220S E 3/4SQ

Bosch Rexroth

ANGLE HEAD WH150S E 1/2SQ

Bosch Rexroth

ANGLE HEAD WH100S E 1/2SQ

Bosch Rexroth

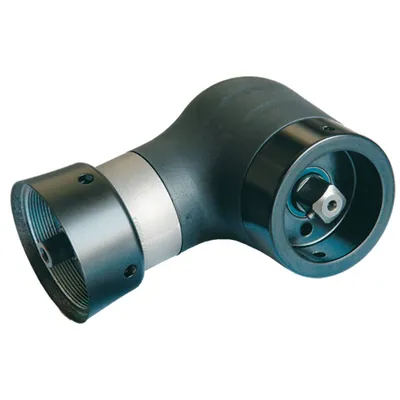

ANGLE HEAD WH075S E 1/2SQ

Bosch Rexroth

ANGLE HEAD WH075G E 1/2SQ

Bosch Rexroth

ANGLE HEAD WH065S E 1/2SQ

Bosch Rexroth

ANGLE HEAD WH065G E 1/2SQ

Bosch Rexroth

ANGLE HEAD WH056S E 3/8SQ

Bosch Rexroth

ANGLE HEAD WH056G E 3/8SQ

Bosch Rexroth

ANGLE HEAD WH040S E 3/8SQ

Bosch Rexroth

ANGLE HEAD WH040G E 3/8SQ

Bosch Rexroth

ANGLE HEAD WH013S E 1/4SQ

Bosch Rexroth

ANGLE HEAD WH013G E 1/4SQ

Compare Angle head ErgoSpin output drives

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Maximum torque [Nm]	Reduction ratio	Order number	Code	Weight [kg]
3608876065	220.0	1.59	3608876065	WH220S	1.5
3608876064	150.0	1.1	3608876064	WH150S	1.3
3608876063	100.0	1.42	3608876063	WH100S	0.85
3608876061	75.0	1.56	3608876061	WH075S	0.65
3608876062	75.0	1.56	3608876062	WH075G*	0.8
3608876059	65.0	1.35	3608876059	WH065S	0.6
3608876060	65.0	1.35	3608876060	WH065G*	0.6
3608876057	56.0	1.16	3608876057	WH056S	0.5
3608876058	56.0	1.16	3608876058	WH056G*	0.6
3608876055	40.0	1.73	3608876055	WH040S	0.4
3608876056	40.0	1.73	3608876056	WH040G*	0.55
3608876051	13.0	1.1	3608876051	WH013S	0.2
3608876052	13.0	1.1	3608876052	WH013G*	0.25

Typical efficiency

0.95
