ErgoSpin SlimLine Parts
Compare ErgoSpin SlimLine
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Working range (max.) [Nm] | Working range (min) [Nm] | Weight [kg] | Order number | Code |
|---|---|---|---|---|---|
| 0608841213 | 220.0 | 44.0 | 4.0; 4.8 | 0608841213 | ESA220S-G |
| 0608841212 | 150.0 | 30.0 | 3.8; 4.5 | 0608841212 | ESA150S-G |
| 0608841211 | 100.0 | 20.0 | 3.1; 3.9 | 0608841211 | ESA100S-G |
| 0608841210 | 75.0 | 15.0 | 2.0; 2.75 | 0608841210 | ESA075S-G |

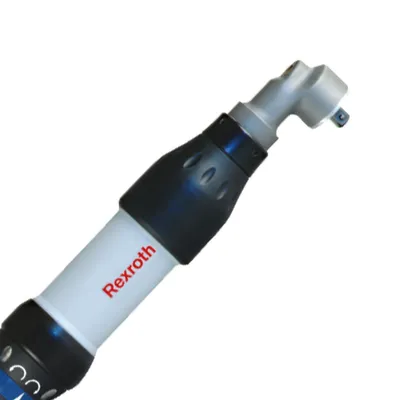

| 0608841209 | 65.0 | 13.0 | 1.9; 2.7 | 0608841209 | ESA065S-G |
| 0608841208 | 56.0 | 11.0 | 1.9; 2.6 | 0608841208 | ESA056S-G |
| 0608841207 | 40.0 | 8.0 | 1.7; 2.4 | 0608841207 | ESA040S-G |
| 0608841206 | 30.0 | 6.0 | 1.6; 2.35 | 0608841206 | ESA030S-G |
| 0608841205 | 13.0 | 1.0 | 1.3; 2 | 0608841205 | ESA013S-G |
| 0608841204 | 5.0 | 1.0 | 1.3; 2 | 0608841204 | ESA005S-G |
