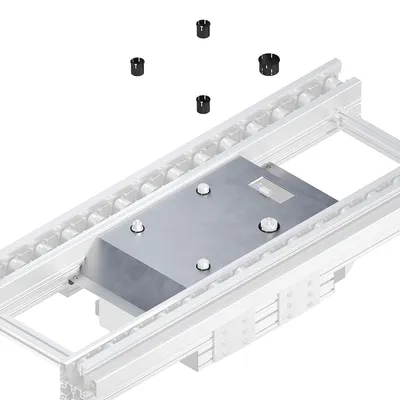

Protective covers for PE 5/OC... Parts
Compare Protective covers for PE 5/OC...
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Track width [b] [mm] | Length in direction of transport [lT] [mm] | Weight [kg] |
|---|---|---|---|
| 3842554573 | 845 | 845 | 6.7 |
| 3842554572 | 650 | 845 | 5.4 |
| 3842554571 | 650 | 650 | 2.5 |
| 3842554570 | 455 | 650 | 1.6 |
| 3842554569 | 455 | 455 | 1.3 |
| 3842554574 | 845 | 1040 | 7.9 |
| 3842554561 | 845 | 845 | 3.6 |
| 3842554562 | 845 | 1040 | 4.6 |
| 3842554560 | 650 | 845 | 2.6 |
| 3842554559 | 650 | 650 | 2.2 |
| 3842554558 | 455 | 650 | 1.3 |
| 3842554557 | 455 | 455 | 1 |
Common to all listed parts
| Scope of delivery | Incl. protective sleeves (A and B) and fastening material |
| Delivery information | Not assembled |
| Notice | b = Track width of the positioning unit in the direction of transport |
| Material information | Cover: Aluminum; Protective sleeves: PA |
| Material | Aluminum |
