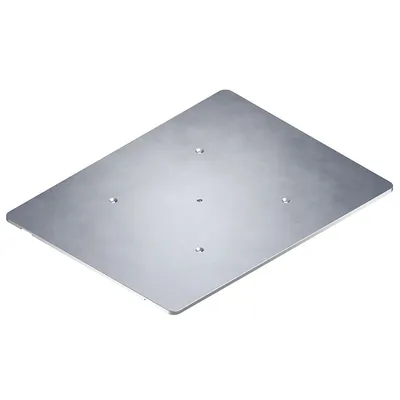

Carrying plates, variable Parts
Compare Carrying plates, variable
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Flatness [mm] | Plate width min [bPL] [mm] | Plate width max [bPL] [mm] | Plate length [lPL min] [mm] | Plate length [lPL max] [mm] |
|---|---|---|---|---|---|
| 3842998571 | 1 | 841 | 1040 | 841 | 1040 |
| 3842998570 | 1 | 841 | 1040 | 841 | 1040 |
| 3842998573 | 1.2 | 841 | 1040 | 1036 | 1250 |
| 3842998572 | 1.2 | 841 | 1040 | 1036 | 1250 |
| 3842998569 | 1 | 646 | 845 | 841 | 1040 |
| 3842998568 | 1 | 646 | 845 | 841 | 1040 |
| 3842998567 | 0.8 | 646 | 845 | 646 | 845 |
| 3842998566 | 0.8 | 646 | 845 | 646 | 845 |
| 3842998565 | 0.8 | 451 | 650 | 646 | 845 |
| 3842998564 | 0.8 | 451 | 650 | 646 | 845 |
| 3842998563 | 0.6 | 451 | 650 | 451 | 650 |
| 3842998562 | 0.6 | 451 | 650 | 451 | 650 |
Common to all listed parts
| Length [l] [mm] | 195 |
| Material | Aluminum |
| Required accessories | Positioning bushing kit |
| Weight [kg] | 0 |
