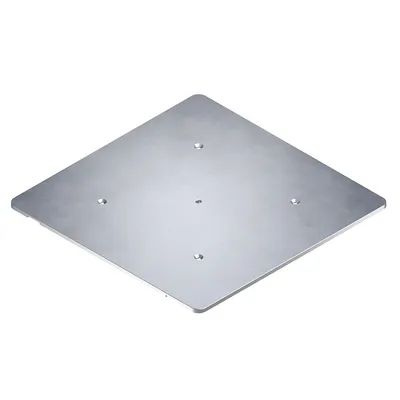

Carrying plates, standard Parts
Compare Carrying plates, standard
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Workpiece pallet length [lWT] [mm] | Plate weight [mPL] [kg] | Flatness [mm] | Workpiece pallet width [bWT] [mm] | Weight [kg] |
|---|---|---|---|---|---|
| 3842545270 | 845 | 36.2 | 1 | 845 | 36.2 |
| 3842545093 | 845 | 24.2 | 1 | 845 | 24.2 |
| 3842545271 | 1040 | 44.6 | 1.2 | 845 | 44.6 |
| 3842545096 | 1040 | 29.8 | 1.2 | 845 | 29.8 |
| 3842545269 | 845 | 27.8 | 1 | 650 | 27.8 |
| 3842545090 | 845 | 18.6 | 1 | 650 | 18.6 |
| 3842545268 | 650 | 21.3 | 0.8 | 650 | 21.3 |
| 3842545087 | 650 | 14.2 | 0.8 | 650 | 14.2 |
| 3842545267 | 650 | 14.9 | 0.8 | 455 | 14.9 |
| 3842545084 | 650 | 9.4 | 0.8 | 455 | 9.4 |
| 3842545266 | 455 | 10.4 | 0.6 | 455 | 10.4 |
| 3842545081 | 455 | 6.6 | 0.6 | 455 | 6.6 |
Common to all listed parts
| Material | Aluminum |
| Required accessories | Positioning bushing kit |
