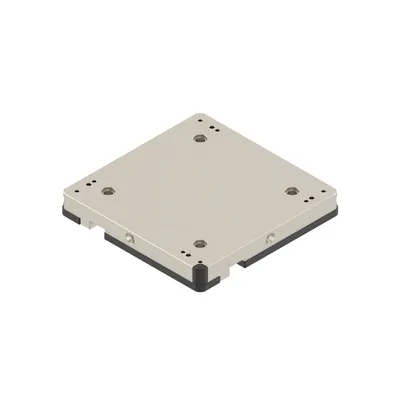

Workpiece pallet WT 1/P Parts
Compare Workpiece pallet WT 1/P
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dimension [a] [mm] | Dimension [c] [mm] | Dimension [d] [mm] | Dimension b [mm] | Workpiece pallet length [lWT] [mm] |
|---|---|---|---|---|---|
| 3842530443 | 80 | 38 | 19 | 52 | 80 |
| 3842530445 | 160 | 118 | 59 | 132 | 160 |
| 3842530444 | 120 | 78 | 39 | 92 | 120 |
Common to all listed parts
| ESD | Yes |
| Dry room [%rF] | <1 |
| Scope of delivery | Workpiece pallet, complete |
| Delivery information | Fully assembled |
| Material information | Wear pad: Polyamide (PA 66); Workpiece pallet: Aluminum, chem. Nickel-plated |
| Clean room classification | ISO class 7 |
| Recommended accessories | Mobile data tag ID 15/MDT, ID 40/MDT or ID 200/MDT; Switching element |
