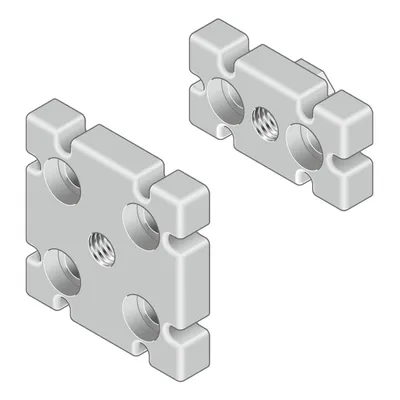

Compare Plate
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dimension [l1] [mm] | Dimension [L1] [mm] | Dimension [L2] [mm] | Fastening material | Weight [kg] |
|---|
| 3842511352 | 45 | 90 | 90 | 4x cylinder head screw DIN7984-M12x20 | 0.35 |
| 3842529416 | 40 | 80 | 80 | 4x cylinder head screw DIN7984-M12x20 | 0.3 |
| 3842536566 | 30 | 60 | 60 | 4x cylinder head screw DIN7984-M8x20 | 0.13 |
| 3842536564 | 45 | 90 | 45 | 2x cylinder head screw DIN7984-M12x20 | 0.17 |
| 3842536562 | 40 | 80 | 40 | 2x cylinder head screw DIN7984-M12x20 | 0.15 |
| 3842536560 | 30 | 60 | 30 | 2x cylinder head screw DIN7984-M8x20 | 0.07 |
| 3842529417 | 50 | 100 | 100 | 4x cylinder head screw DIN7984-M12x20 | 0.43 |
Common to all listed parts
| ESD | Yes |
| Scope of delivery | Incl. fastening material |
| Material information | Fastening material: Steel, galvanized; Plate: Diecast aluminum |
| Material | Diecast aluminum |
