Damping ring Parts
Compare Damping ring
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Diameter d [mm] | Diameter D [mm] | Force F [N] | Weight [kg] |
|---|---|---|---|---|

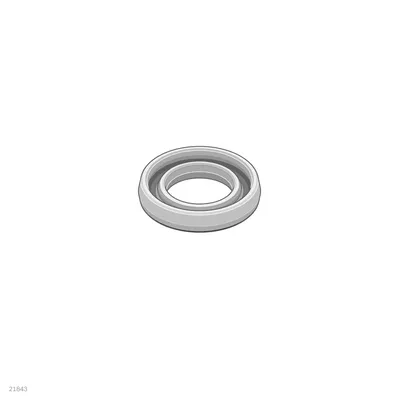

| 3842522303 | 98 | 90.0 | 3000.0 | 0.03 |
| 3842522301 | 66 | 58.0 | 2500.0 | 0.02 |

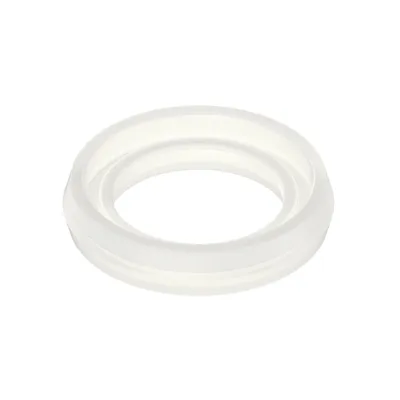

| 3842521817 | 52 | 44.0 | 2000.0 | 0.02 |
| 3842529024 | 39 | 30.0 | 1600.0 | 0.01 |
Common to all listed parts
| Profile slot | 10 |
| Color | Natural |
| Packaging unit | 20 |
| Hardness (Shore) [Shore A] | 70-80 |
| Material | PUR |
| Recommended accessories | Bearing ring for when cover caps with a hole are used (3842555653) |
