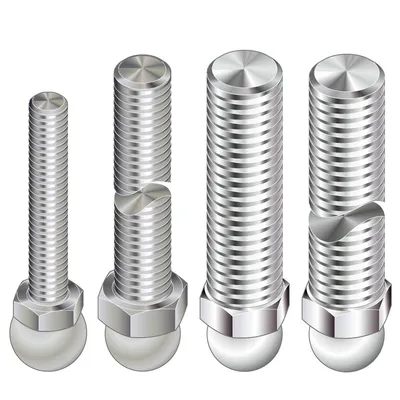

Spindle Parts
Compare Spindle
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Adjustment range [V] [mm] | Thread size | Force F [N] | Length [L] | Weight [kg] |
|---|---|---|---|---|---|

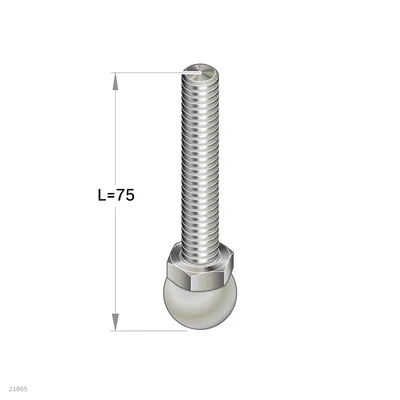

| 3842536811 | 20.0 | M8 | 10000.0 | 75.0 | 0.05 |
| 3842537220 | 20.0 | M8 | 10000.0 | 75.0 | 0.05 |
| 3842537227 | 20.0 | M16 | 30000.0 | 85.0 | 0.13 |
| 3842537228 | 20.0 | M16 | 30000.0 | 85.0 | 0.12 |
| 3842537231 | 135.0 | M16 | 30000.0 | 200.0 | 0.35 |
| 3842537232 | 135.0 | M16 | 30000.0 | 200.0 | 0.31 |
| 3842537229 | 80.0 | M16 | 30000.0 | 145.0 | 0.27 |
| 3842537230 | 80.0 | M16 | 30000.0 | 145.0 | 0.2 |
| 3842536812 | 30.0 | M12 | 20000.0 | 85.0 | 0.08 |
| 3842537222 | 30.0 | M12 | 20000.0 | 85.0 | 0.08 |
| 3842537225 | 135.0 | M12 | 20000.0 | 200.0 | 0.21 |
| 3842537226 | 135.0 | M12 | 20000.0 | 200.0 | 0.16 |
| 3842537223 | 80.0 | M12 | 20000.0 | 145.0 | 0.16 |
| 3842537224 | 80.0 | M12 | 20000.0 | 145.0 | 0.13 |
Common to all listed parts
| Profile slot | 8; 10 |
| ESD | Yes |
| Packaging unit | 20 |
| Required accessories | Bearing ring |
