Supporting arm joint Parts
Compare Supporting arm joint
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Modular dimension [mm] | Dimensions | Dimension [p] [mm] | Bending moment 1 [Nm] | Weight [kg] |
|---|---|---|---|---|---|

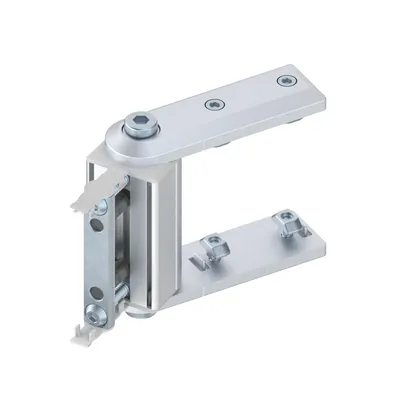

| 3842554434 | 45 | 45x90 | 90 | 150.0 | 0.89 |
| 3842538695 | 45 | 45x90 | 90 | 150.0 | 0.89 |
| 3842521262 | 45 | 45x90 | 90 | 150.0 | 0.89 |
| 3842554426 | 45 | 45x90 | 90 | 150.0 | 0.72 |
| 3842554432 | 45 | 45x45 | 45 | 50.0 | 0.73 |
| 3842521263 | 45 | 45x45 | 45 | 50.0 | 0.74 |

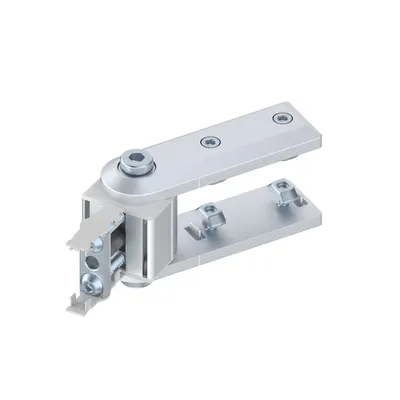

| 3842554424 | 45 | 45x45 | 45 | 50.0 | 0.87 |

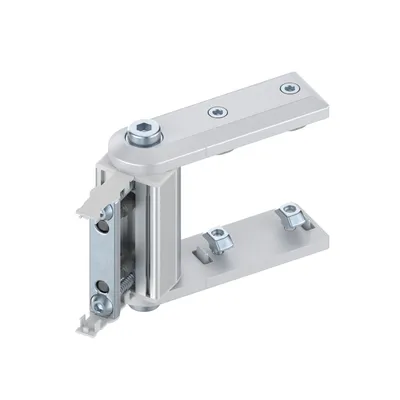

| 3842554430 | 40 | 40x80 | 80 | 130.0 | 0.82 |
| 3842538693 | 40 | 40x80 | 80 | 130.0 | 0.82 |
| 3842532207 | 40 | 40x80 | 80 | 130.0 | 0.87 |
| 3842554422 | 40 | 40x80 | 80 | 130.0 | 0.87 |
| 3842554428 | 40 | 40x40 | 40 | 40.0 | 0.7 |
| 3842538692 | 40 | 40x40 | 40 | 40.0 | 0.7 |
| 3842532206 | 40 | 40x40 | 40 | 40.0 | 0.72 |
| 3842554420 | 40 | 40x40 | 40 | 40.0 | 0.71 |
Common to all listed parts
| Profile slot | 10 |
| ESD | Yes |
| Packaging unit | 1 |
| Scope of delivery | Incl. cover caps, bolt connectors, fastening material (FS) |
