End connector Parts
Compare End connector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Profile slot | Dimensions | Bending moment 1 [Nm] | Material | Weight [kg] |
|---|---|---|---|---|---|

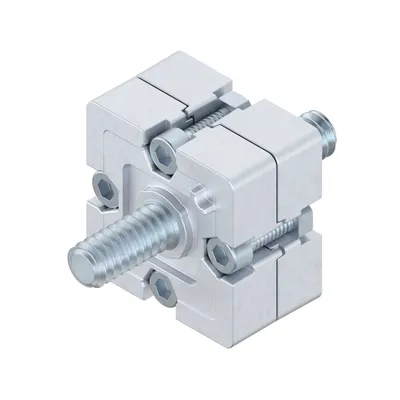

| 3842532199 | 10 | 50x50 | 180.0 | Diecast zinc | 0.22 |

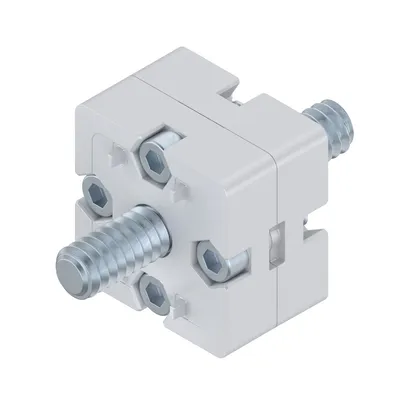

| 3842538658 | 10 | 45x45 | 200.0 | Diecast zinc, painted | 0.34 |

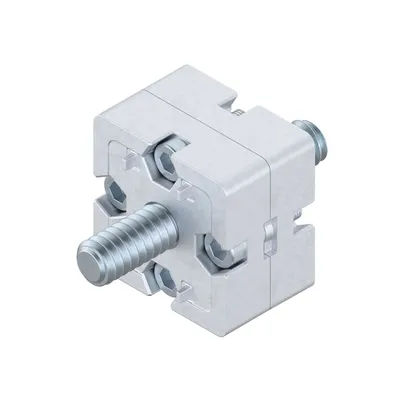

| 3842191175 | 10 | 45x45 | 200.0 | Diecast zinc | 0.34 |

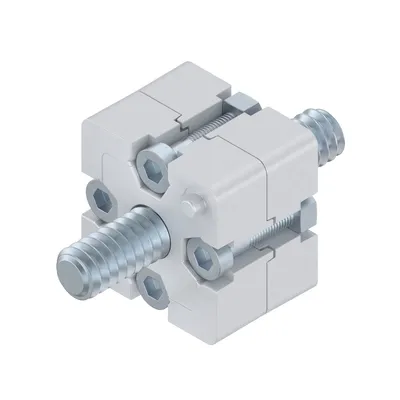

| 3842538657 | 10 | 40x40 | 170.0 | Diecast aluminum, painted | 0.19 |

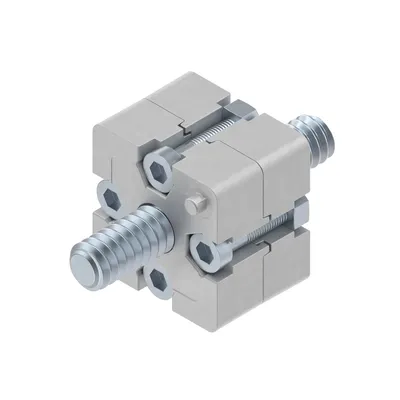

| 3842532196 | 10 | 40x40 | 170.0 | Diecast aluminum | 0.19 |

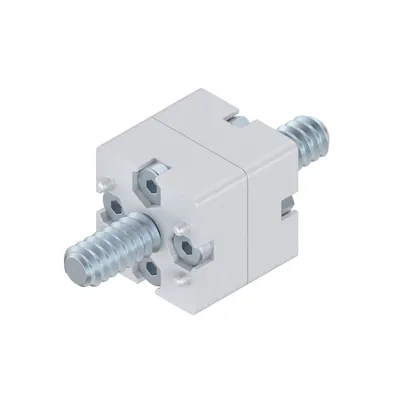

| 3842538656 | 8 | 30x30 | 81.0 | Diecast aluminum, painted | 0.11 |

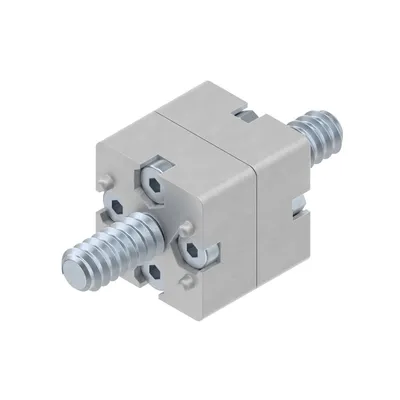

| 3842526003 | 8 | 30x30 | 81.0 | Diecast aluminum | 0.11 |
Common to all listed parts
| ESD | Yes |
| Scope of delivery | Set incl. fastening material (FS) |
