Cubic connector Parts
Compare Cubic connector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Profile slot | Dimensions | Bending moment 1 [Nm] | Fastening material | Weight [kg] |
|---|---|---|---|---|---|

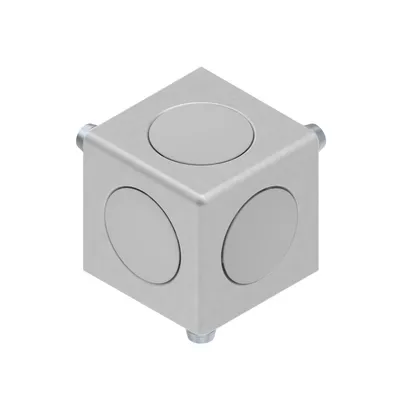

| 3842549876 | 10 | 50x50 | 140.0 | 3x screw S12x30 | 0.26 |
| 3842529013 | 10 | 50x50 | 140.0 | — | 0.19 |
| 3842549874 | 10 | 50x50 | 120.0 | 2x screw S12x30 | 0.26 |

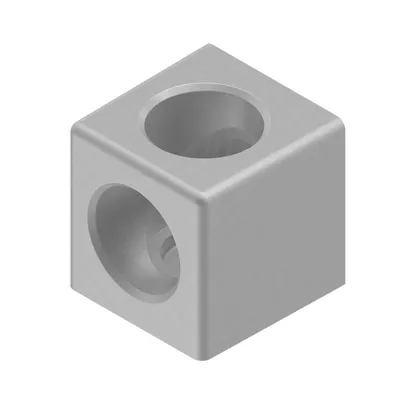

| 3842529012 | 10 | 50x50 | 120.0 | — | 0.22 |

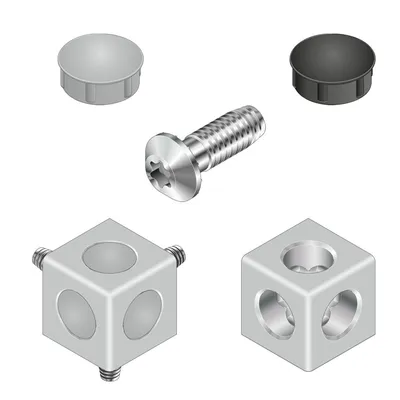

| 3842549873 | 10 | 45x45 | 170.0 | 3x screw S12x30 | 0.22 |
| 3842549872 | 10 | 45x45 | 170.0 | 3x screw S12x30 | 0.22 |

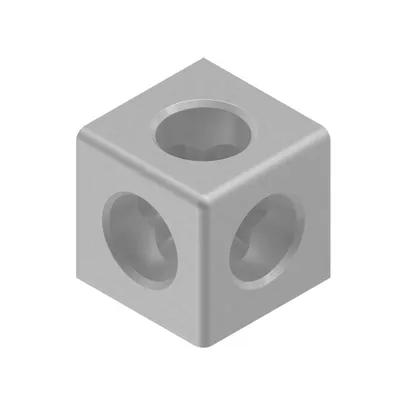

| 3842523874 | 10 | 45x45 | 170.0 | — | 0.15 |
| 3842549871 | 10 | 45x45 | 150.0 | 2x screw S12x30 | 0.17 |

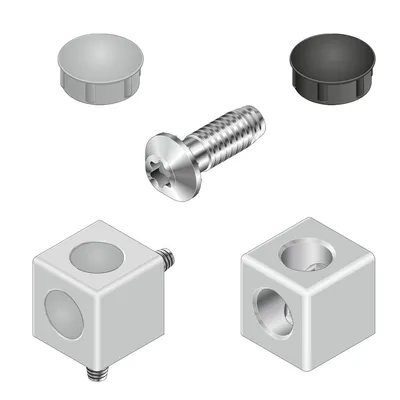

| 3842549870 | 10 | 45x45 | 150.0 | 2x screw S12x30 | 0.17 |
| 3842523877 | 10 | 45x45 | 150.0 | — | 0.17 |

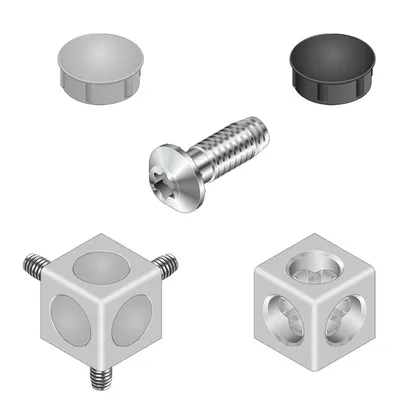

| 3842549869 | 10 | 40x40 | — | 3x screw S12x30 | 0.16 |
| 3842549868 | 10 | 40x40 | — | 3x screw S12x30 | 0.16 |

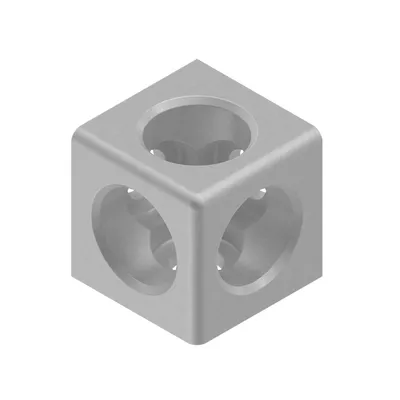

| 3842529011 | 10 | 40x40 | — | — | 0.09 |
| 3842549867 | 10 | 40x40 | 60.0 | 2x screw S12x30 | 0.16 |
| 3842549866 | 10 | 40x40 | 60.0 | 2x screw S12x30 | 0.16 |
| 3842529010 | 10 | 40x40 | 60.0 | — | 0.11 |

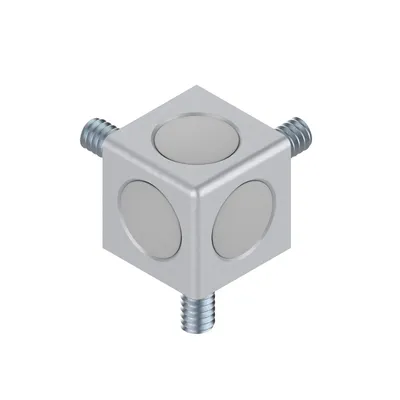

| 3842549865 | 8 | 30x30 | — | 3x countersunk screw S8x25 | 0.07 |
| 3842549864 | 8 | 30x30 | — | 3x countersunk screw S8x25 | 0.07 |

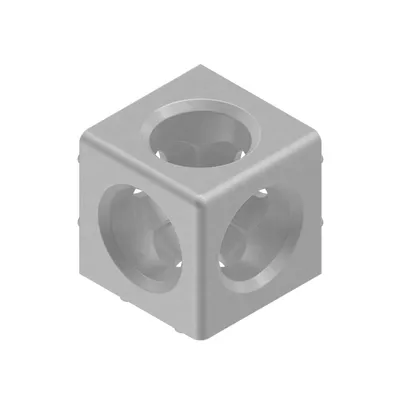

| 3842523873 | 8 | 30x30 | — | — | 0.04 |
| 3842549863 | 8 | 30x30 | 80.0 | 2x countersunk screw S8x25 | 0.07 |
| 3842549862 | 8 | 30x30 | 80.0 | 2x countersunk screw S8x25 | 0.07 |
| 3842523876 | 8 | 30x30 | 80.0 | — | 0.05 |
| 3842549861 | 6 | 20x20 | — | 3x countersunk screw S6x16 | 0.03 |
| 3842549860 | 6 | 20x20 | — | 3x countersunk screw S6x16 | 0.03 |
Common to all listed parts
| ESD | Yes |
