Sliding block, sliding block profile Parts

Showing 25–48 of 56 parts

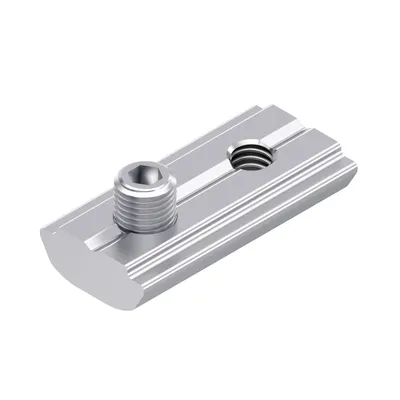

Bosch Rexroth 3842557259 – T-SLOT STONE 8 1XM5;1XM4 ES
Bosch Rexroth
3842557259

T-SLOT STONE 8 1XM5;1XM4 ES

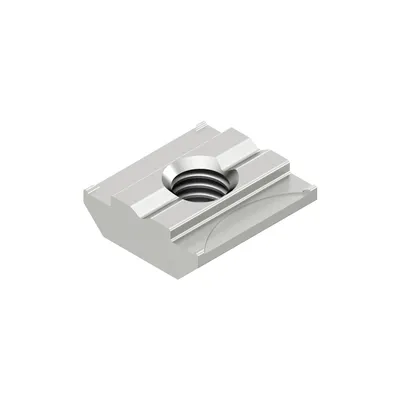

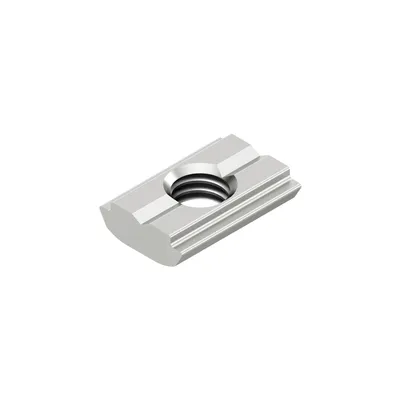

Bosch Rexroth 3842523142 – T-SLOT STONE 6 M5 VA
Bosch Rexroth
3842523142

T-SLOT STONE 6 M5 VA

Bosch Rexroth 3842547825 – T-SLOT STONE 6 M5 VA
Bosch Rexroth
3842547825

T-SLOT STONE 6 M5 VA

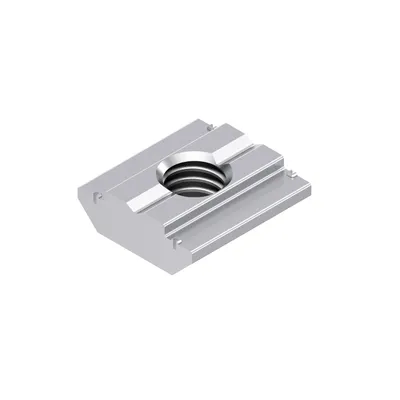

Bosch Rexroth 3842542693 – T-SLOT STONE 6 M5 ST
Bosch Rexroth
3842542693

T-SLOT STONE 6 M5 ST

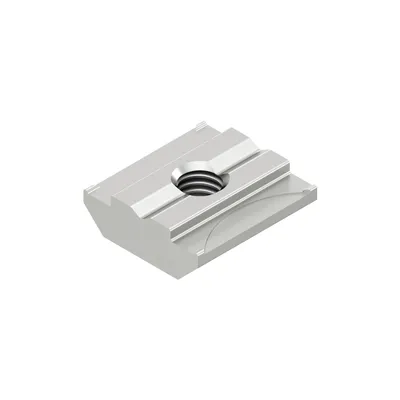

Bosch Rexroth 3842523140 – T-SLOT STONE 6 M4 VA
Bosch Rexroth
3842523140

T-SLOT STONE 6 M4 VA

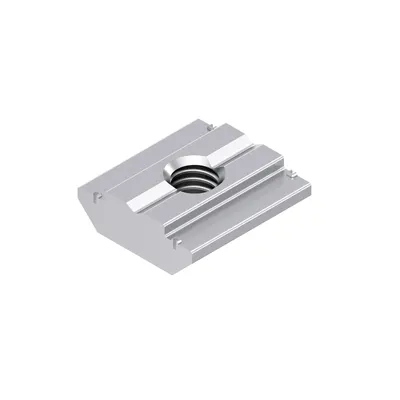

Bosch Rexroth 3842542692 – T-SLOT STONE 6 M4 ST
Bosch Rexroth
3842542692

T-SLOT STONE 6 M4 ST

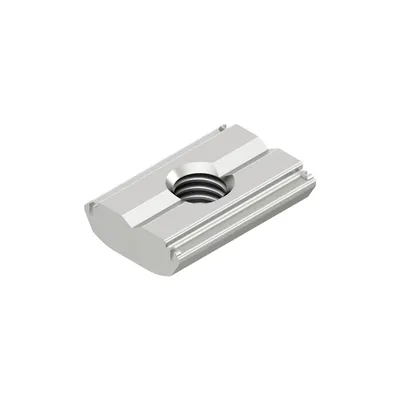

Bosch Rexroth 3842536669 – T-SLOT STONE 6 M4 ES STAINLESS
Bosch Rexroth
3842536669

T-SLOT STONE 6 M4 ES STAINLESS

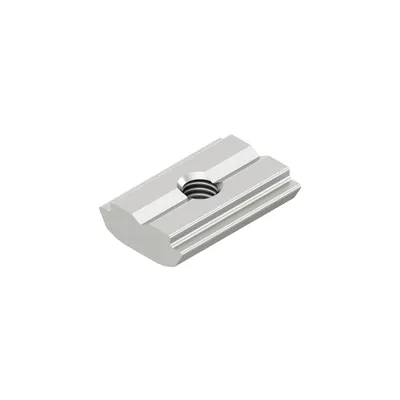

Bosch Rexroth 3842547826 – T-SLOT STONE 6 M3 VA
Bosch Rexroth
3842547826

T-SLOT STONE 6 M3 VA

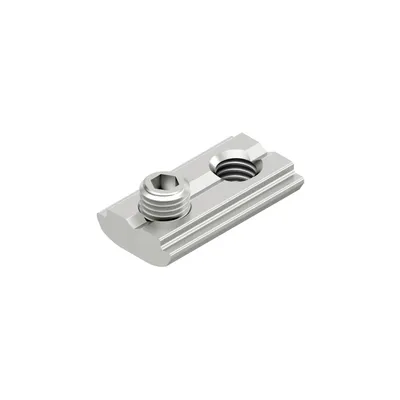

Bosch Rexroth 3842536673 – T-SLOT STONE 6 2XM4 ES STAINLESS
Bosch Rexroth
3842536673

T-SLOT STONE 6 2XM4 ES STAINLESS

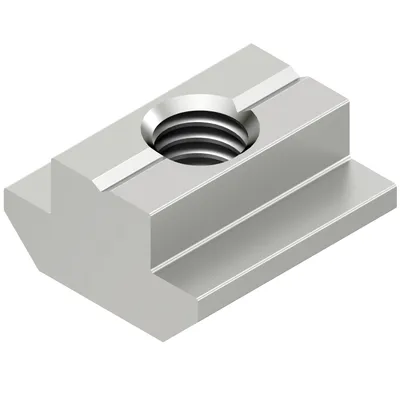

Bosch Rexroth 3842547811 – T-SLOT STONE 10 M8 VA
Bosch Rexroth
3842547811

T-SLOT STONE 10 M8 VA

Bosch Rexroth 3842547806 – T-SLOT STONE 10 M8 SUSPENDED VA
Bosch Rexroth
3842547806

T-SLOT STONE 10 M8 SUSPENDED VA

Bosch Rexroth 3842529300 – T-SLOT STONE 10 M8 SUSPENDED
Bosch Rexroth
3842529300

T-SLOT STONE 10 M8 SUSPENDED

Bosch Rexroth 3842530316 – T-SLOT STONE 10 M8 ES VA
Bosch Rexroth
3842530316

T-SLOT STONE 10 M8 ES VA

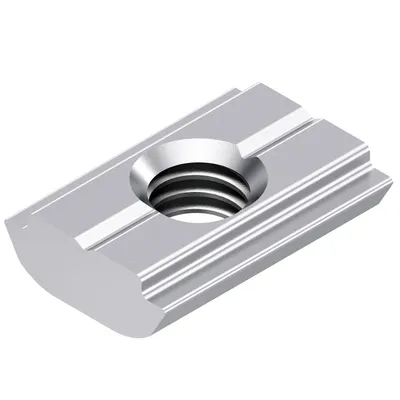

Bosch Rexroth 3842529324 – T-SLOT STONE 10 M8 ES
Bosch Rexroth
3842529324

T-SLOT STONE 10 M8 ES

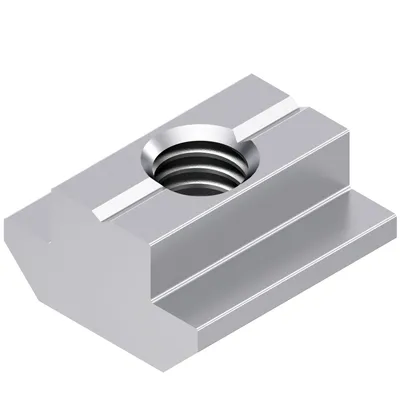

Bosch Rexroth 3842528735 – T-SLOT STONE 10 M8
Bosch Rexroth
3842528735

T-SLOT STONE 10 M8

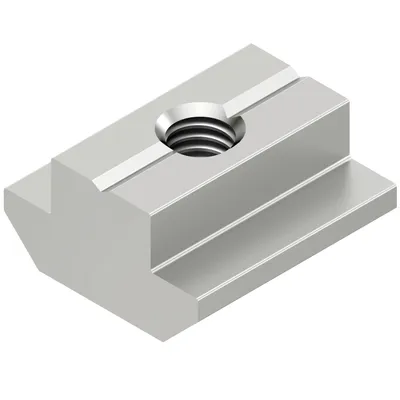

Bosch Rexroth 3842547812 – T-SLOT STONE 10 M6 VA
Bosch Rexroth
3842547812

T-SLOT STONE 10 M6 VA

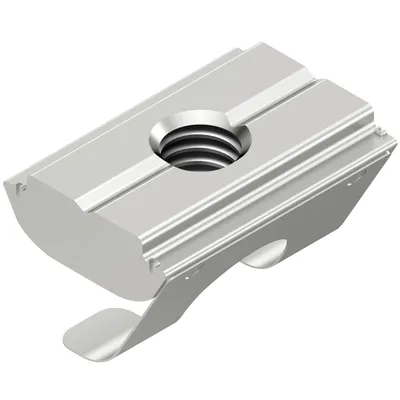

Bosch Rexroth 3842547807 – T-SLOT STONE 10 M6 SUSPENDED VA
Bosch Rexroth
3842547807

T-SLOT STONE 10 M6 SUSPENDED VA

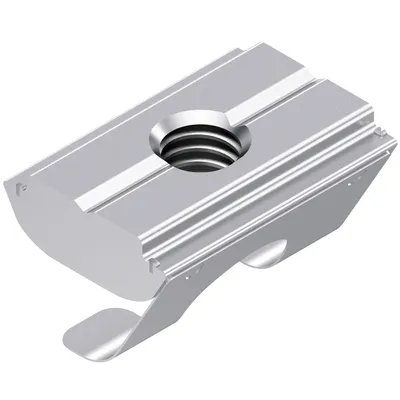

Bosch Rexroth 3842529299 – T-SLOT STONE 10 M6 SUSPENDED
Bosch Rexroth
3842529299

T-SLOT STONE 10 M6 SUSPENDED

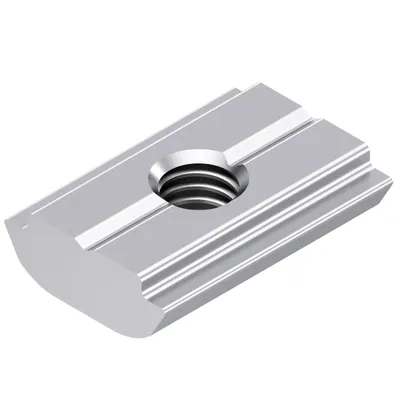

Bosch Rexroth 3842529323 – T-SLOT STONE 10 M6 ES
Bosch Rexroth
3842529323

T-SLOT STONE 10 M6 ES

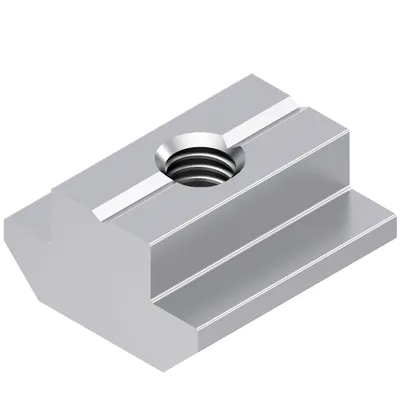

Bosch Rexroth 3842528738 – T-SLOT STONE 10 M6
Bosch Rexroth
3842528738

T-SLOT STONE 10 M6

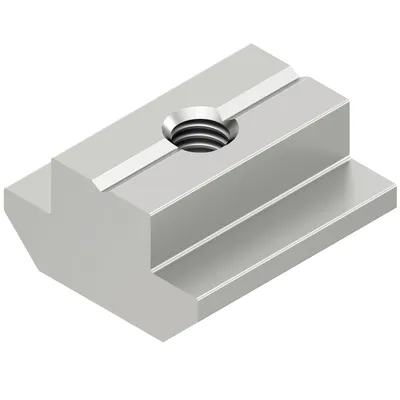

Bosch Rexroth 3842547813 – T-SLOT STONE 10 M5 VA
Bosch Rexroth
3842547813

T-SLOT STONE 10 M5 VA

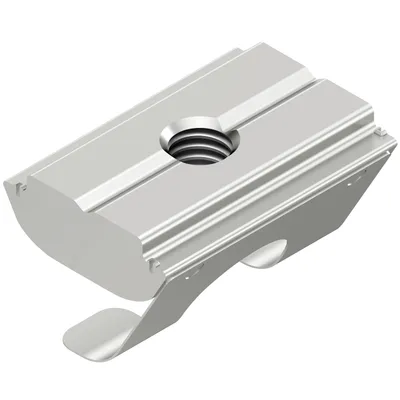

Bosch Rexroth 3842547808 – T-SLOT STONE 10 M5 SUSPENDED VA
Bosch Rexroth
3842547808

T-SLOT STONE 10 M5 SUSPENDED VA

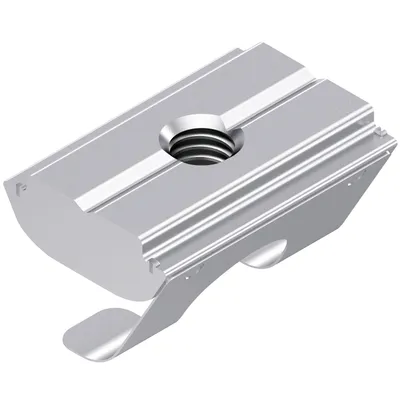

Bosch Rexroth 3842529298 – T-SLOT STONE 10 M5 SUSPENDED
Bosch Rexroth
3842529298

T-SLOT STONE 10 M5 SUSPENDED

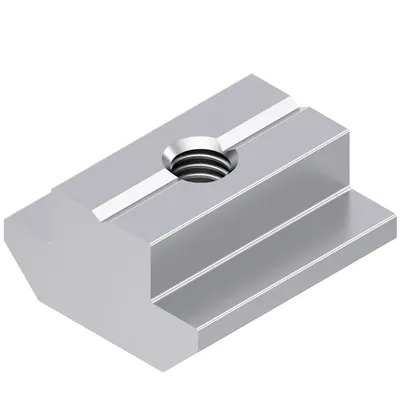

Bosch Rexroth 3842528741 – T-SLOT STONE 10 M5
Bosch Rexroth
3842528741

T-SLOT STONE 10 M5

Compare Sliding block, sliding block profile

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNProfile slotThread sizeDimension h1 [mm]Dimension h [mm]Length [l] [mm]
38425572598M5; M414.824
38425231426M51412
38425478256M50.9312
38425426936M51412
38425231406M41412
38425426926M41412
38425366696M40.9312
38425478266M30.9312
38425366736M4; M40.9315
384254781110M8510.520
384254780610M81.55.320
384252930010M81.55.320
384253031610M81.55.320
384252932410M81.55.320
384252873510M8510.520
384254781210M6510.520
384254780710M61.55.320
384252929910M61.55.320
384252932310M61.55.320
384252873810M6510.520
384254781310M5510.520
384254780810M51.55.320
384252929810M51.55.320
384252874110M5510.520

Common to all listed parts

Packaging unit100
