Bolt connector Parts
Compare Bolt connector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Profile slot | Weight [kg] | Required accessories | Length [L] | Length [l2] [mm] |
|---|---|---|---|---|---|
| 3842551054 | 10 | 0.01 | — | — | — |
| 3842551055 | 10 | 0.01 | Drilling jig | — | — |
| 3842551052 | 8 | 0.01 | — | 23.0 | — |
| 3842551053 | 8 | 0.01 | — | — | — |
| 3842535619 | 10 | 0.04 | Drilling jig (3842528574,3842530400) | — | — |

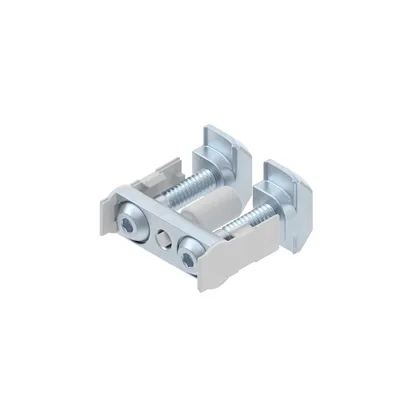

| 3842555590 | 10; 8 | 0.04 | Drilling jig (3842528577) | 30.0 | 18 |

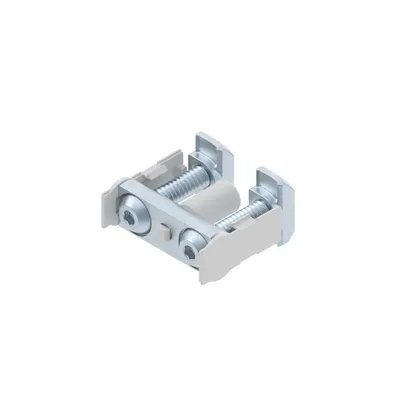

| 3842554402 | 8 | 0.03 | Drilling jig (3842528577) | 30.0 | 18 |
| 3842535617 | 8 | 0.02 | Drilling jig (3842528577) | — | — |

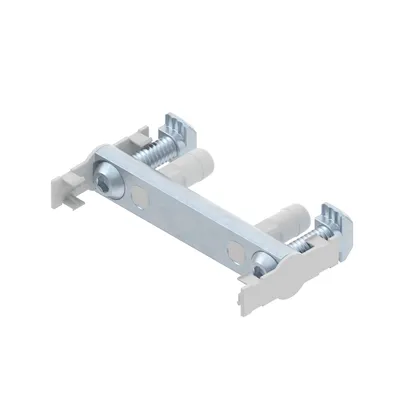

| 3842555588 | 10 | 0.14 | Drilling jig (3842528574) | 90.0 | 73 |

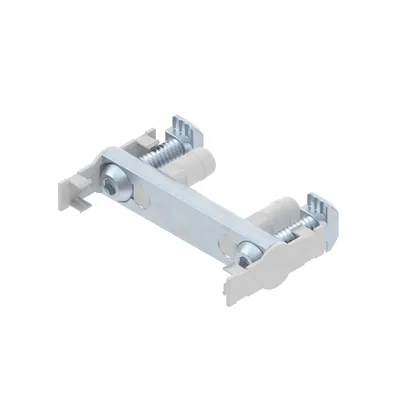

| 3842555598 | 10 | 0.12 | Drilling jig (3842530400) | 80.0 | 63 |

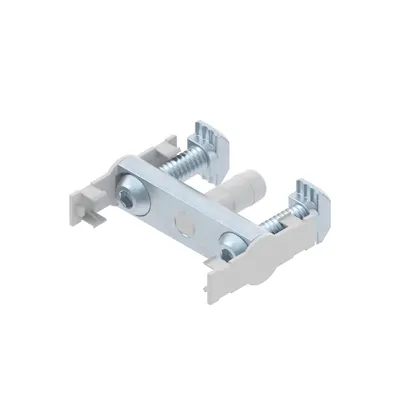

| 3842555586 | 10 | 0.1 | Drilling jig (3842528574) | 60.0 | 43 |
| 3842555596 | 10 | 0.09 | Drilling jig (3842530400) | 50.0 | 33 |

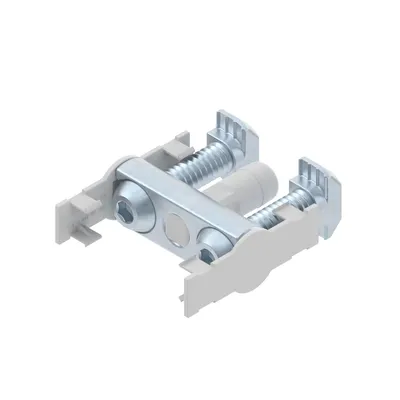

| 3842555584 | 10 | 0.08 | Drilling jig (3842528574) | 45.0 | 28 |

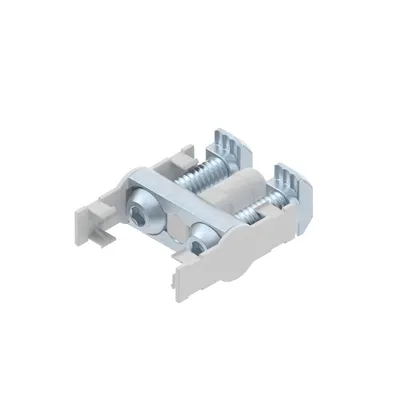

| 3842555594 | 10 | 0.08 | Drilling jig (3842530400) | 40.0 | 23 |

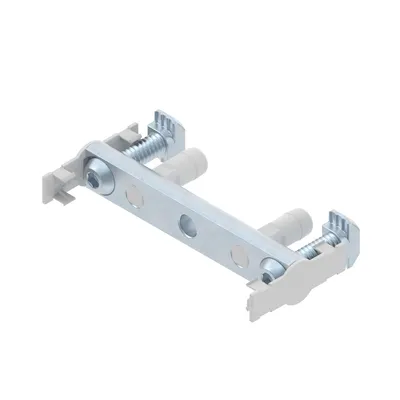

| 3842555592 | 10 | 0.15 | Drilling jig (3842530400) | 100.0 | 83 |
