Quick connector Parts
Compare Quick connector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Profile slot | Diameter D [mm] | Bending moment 1 [Nm] | Material | Weight [kg] |
|---|---|---|---|---|---|

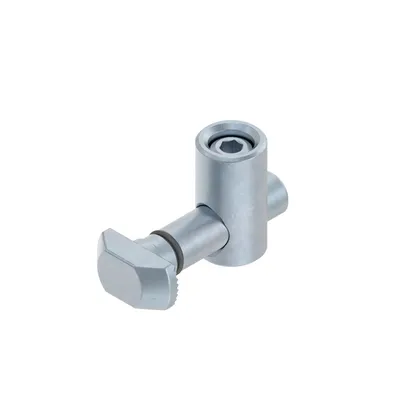

| 3842557257 | 8 | 11.0 | 40.0 | Steel, galvanized | 0.03 |
| 3842548937 | 8 | 11.0 | 70.0 | Steel, stainless | 0.03 |
| 3842535465 | 8 | 11.0 | 70.0 | Steel, galvanized | 0.03 |
| 3842548934 | 8 | 11.0 | 40.0 | Steel, stainless | 0.03 |
| 3842535459 | 8 | 11.0 | 40.0 | Steel, galvanized | 0.03 |

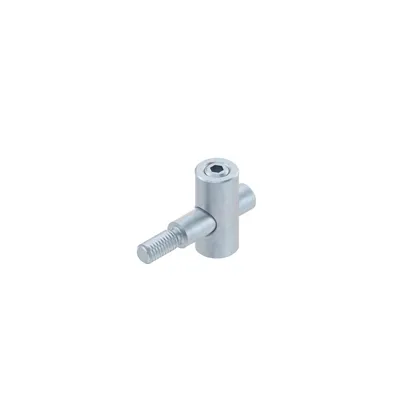

| 3842557258 | 6 | 8.0 | 18.0 | — | 0.01 |
| 3842537013 | 6 | 8.0 | 18.0 | Steel, stainless | 0.01 |

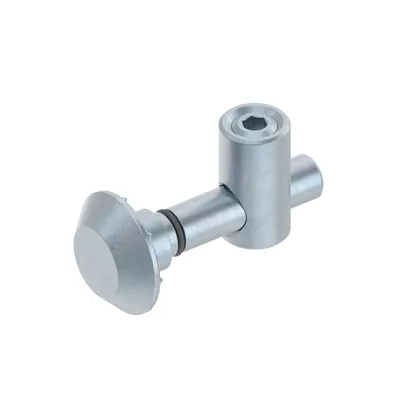

| 3842548935 | 8; 10 | 11.0 | 70.0 | Steel, stainless | 0.03 |
| 3842535464 | 8; 10 | 11.0 | 70.0 | Steel, galvanized | 0.03 |
| 3842557256 | 10 | 17.0 | 140.0 | Steel, galvanized | 0.06 |

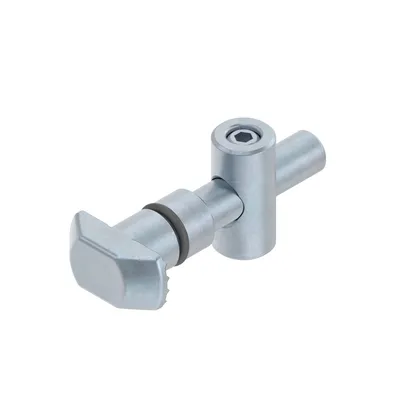

| 3842541410 | 10 | 9.8 | 50.0 | Steel, galvanized | 0.04 |
| 3842541412 | 10 | 9.8 | 50.0 | Steel, galvanized | 0.04 |

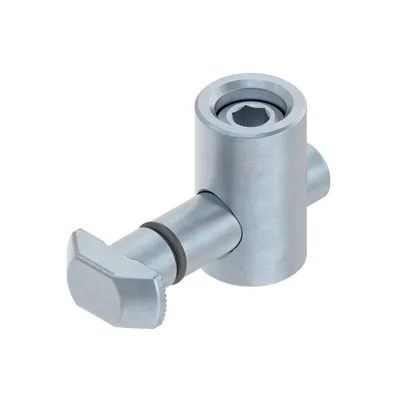

| 3842548938 | 10 | 17.0 | 140.0 | Steel, stainless | 0.04 |
| 3842535466 | 10 | 17.0 | 140.0 | Steel, galvanized | 0.06 |

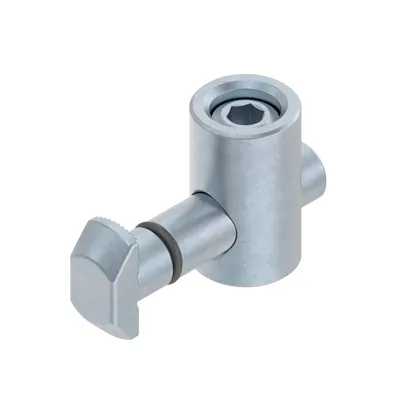

| 3842548936 | 10 | 17.0 | 140.0 | Steel, stainless | 0.04 |
| 3842535458 | 10 | 17.0 | 140.0 | Steel, galvanized | 0.06 |
| 3842564142 | 10; 8 | 11.0 | 40.0 | Steel, galvanized | 0.28 |

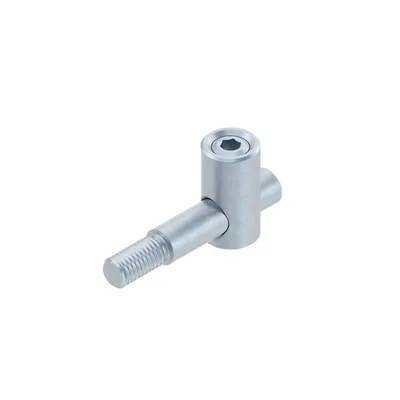

| 3842564113 | 8 | 11.0 | 40.0 | Steel, galvanized | 0.24 |
| 3842564112 | 6 | 8.0 | 6.0 | Steel, stainless | 0.09 |
| 3842564114 | 10 | 17.0 | 140.0 | Steel, galvanized | 0.64 |
| 3842535630 | 8 | 11.0 | — | Steel | 0.04 |
| 3842535629 | 8 | 11.0 | — | Steel | 0.03 |
| 3842535634 | 10 | 17.0 | — | Steel | 0.11 |
| 3842535635 | 10 | 17.0 | — | Steel | 0.08 |
Common to all listed parts
| ESD | Yes |
| Packaging unit | 10 |
