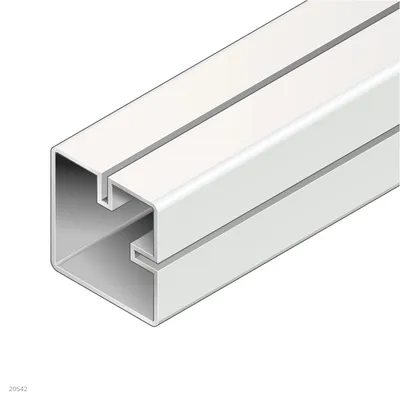

Rectangular tube Parts
Compare Rectangular tube
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Condition on delivery | Length [L] | Weight [kg] |
|---|---|---|---|
| 3842558321 | Single rod in standard length | 6070.0 | 7.6 |
| 3842557960 | Packaging unit in standard length | 6070.0 | 45.5 |
| 3842537817 | Packaging unit in standard length | 5600.0 | 45.5 |
| 3842992913 | Variable length | — | 0 |
Common to all listed parts
| Profile slot | 10 |
| Mass [m] [kg] | 1.2 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 15.1 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 15.1 |
| Profile surface [A] [cm²] | 4.5 |
| Moment of resistance in the x-direction [Wx] [cm³] | 5.7 |
| Moment of resistance in the y-direction [Wy] [cm³] | 5.7 |
| Material | Aluminum, anodized |
