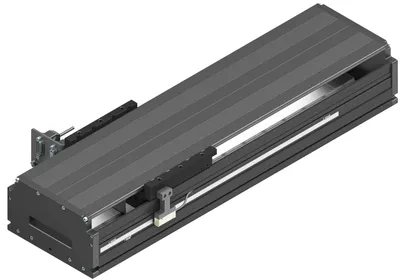

Linear motor modules Parts
























Compare Linear motor modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor | Maximum permissible moving external load mex max [kg] | Length L [mm] | Maximum travel range smax [mm] | Weight [kg] |
|---|---|---|---|---|---|
| R040637301 | IC-250B-100-W3 | 60.0 | 784.0 | 436.0 | 34.8 |
| R040637284 | IC-250B-100-W3 | 60.0 | 700.0 | 352.0 | 32.5 |
| R040637282 | IC-250B-100-W3 | 60.0 | 616.0 | 268.0 | 30.3 |
| R040637280 | IC-250B-100-W3 | 60.0 | 532.0 | 184.0 | 28 |
| R040637273 | IC-250B-100-W2 | 30.0 | 1792.0 | 1528.0 | 59.1 |
| R040637271 | IC-250B-100-W2 | 30.0 | 1708.0 | 1444.0 | 56.8 |
| R040637269 | IC-250B-100-W2 | 30.0 | 1624.0 | 1360.0 | 54.5 |
| R040637267 | IC-250B-100-W2 | 30.0 | 1540.0 | 1276.0 | 52.2 |
| R040637265 | IC-250B-100-W2 | 30.0 | 1456.0 | 1192.0 | 49.9 |
| R040637263 | IC-250B-100-W2 | 30.0 | 1372.0 | 1108.0 | 47.6 |
| R040637261 | IC-250B-100-W2 | 30.0 | 1288.0 | 1024.0 | 45.4 |
| R040637259 | IC-250B-100-W2 | 30.0 | 1204.0 | 940.0 | 43.1 |
| R040637257 | IC-250B-100-W2 | 30.0 | 1120.0 | 856.0 | 40.8 |
| R040637255 | IC-250B-100-W2 | 30.0 | 1036.0 | 772.0 | 38.6 |
| R040637253 | IC-250B-100-W2 | 30.0 | 952.0 | 688.0 | 36.3 |
| R040637251 | IC-250B-100-W2 | 30.0 | 868.0 | 604.0 | 34 |
| R040637244 | IC-250B-100-W2 | 30.0 | 784.0 | 520.0 | 31.7 |
| R040637242 | IC-250B-100-W2 | 30.0 | 700.0 | 436.0 | 29.5 |
| R040637240 | IC-250B-100-W2 | 30.0 | 616.0 | 352.0 | 27.2 |
| R040637228 | IC-250B-100-W2 | 30.0 | 532.0 | 268.0 | 24.9 |
| R040637226 | IC-250B-100-W2 | 30.0 | 448.0 | 184.0 | 22.7 |
| R040637224 | IC-150B-100-W4 | 25.0 | 1784.0 | 1528.0 | 53.4 |
| R040637222 | IC-150B-100-W4 | 25.0 | 1700.0 | 1444.0 | 51.2 |
| R040637220 | IC-150B-100-W4 | 25.0 | 1616.0 | 1360.0 | 49 |
Common to all listed parts
| Nominal size [mm] | LMM-220 |
| Motor type | Linear motor with iron core |
| Width [mm] | 225.0 |
| Maximum acceleration rate amax [m/s²] | 250.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Note: maximum force | Maximum force and current: 4% duty cycle and 1 second duration |
| Graduated lengths [mm] | 84 |
| Intermediate circuit voltage V<sub>dc</sub> [V] | 600 |
