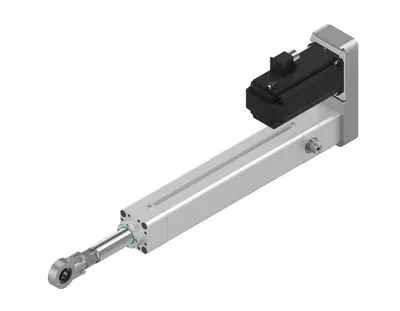

Electromechanical cylinders EMC-HP Parts
Compare Electromechanical cylinders EMC-HP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Maximum permissible axial force Fmax [N] | Dynamic load capacity C [N] | Minimum travel range smin [mm] | Maximum permissible linear speed vmax [m/s] |
|---|---|---|---|---|---|
| R156470000 | 220 | 250000 | 473000.0 | 190 | 0.66 |
| R156460000 | 190 | 150000 | 361000.0 | 150 | 0.83 |
| R156450000 | 160 | 100000 | 179000.0 | 130 | 0.52 |
| R156440000 | 130 | 70000 | 120000.0 | 110 | 0.64 |
Common to all listed parts
| Maximum travel range smax [mm] | 1500.0 |
| Maximum acceleration rate amax [m/s²] | 30.0 |
| Permissible ambient temperature with Rexroth servo motor (min. ... max.) | 0 °C ... 40 °C |
| Permissible ambient temperature mechanics (min. … max.) | -10 °C ... +50 °C |
| Note: Permissible ambient temperature mechanics (min. … max.) | up to +70°C with low duty cycle and power |
| Duty cycle [%] | 100 |
| Weight [kg] | 0 |
| Note: Max. total backlash | im Neuzustand |
