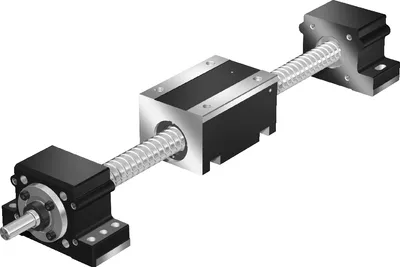

Drive units AOK/AGK Parts
Compare Drive units AOK/AGK
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Linear axes variant | Maximum permissible linear speed vmax [m/s] | Max. length Lmax [mm] | Dynamic load capacity, guideway Cgw [N] |
|---|---|---|---|---|---|
| R158045000 | AOK-040 | Without housing with ball screw assembly | 1.47 | 5000.0 | 54000 |
| R158035000 | AOK-032 | Without housing with ball screw assembly | 1.6 | 4000.0 | 34200 |
| R158015000 | AOK-020 | Without housing with ball screw assembly | 2.53 | 3000.0 | 15480 |
| R158040000 | AGK-040 | With housing with ball screw assembly | 1.47 | 5600.0 | 54000 |
| R158030000 | AGK-032 | With housing with ball screw assembly | 1.6 | 5000.0 | 34200 |
| R158010000 | AGK-020 | With housing with ball screw assembly | 2.53 | 3000.0 | 15480 |
Common to all listed parts
| Maximum acceleration rate amax [m/s²] | 50.0 |
| Permissible ambient temperature with Rexroth servo motor (min. ... max.) | 0 °C ... 40 °C |
| Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.) | loss of performance at 40 °C or higher |
| Permissible ambient temperature mechanics (min. … max.) | -10 °C ... 60 °C |
| Note: Permissible ambient temperature mechanics (min. … max.) | No dropping below dew point |
| Weight [kg] | 0 |
