Accessories for integrated measuring systems IMScompact Parts
Compare Accessories for integrated measuring systems IMScompact
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Weight [kg] | IMScompact accessories | Interface | Cable length [m] | Cable length Lc [m] |
|---|---|---|---|---|---|
| R168000020 | 0 | Magnetic strip | — | — | — |
| R168393010 | 0.04 | Filter connector | — | — | — |
| R168393000 | 0.18 | Position display | — | — | — |

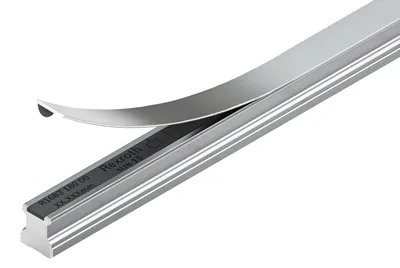

| R168000030 | 0.1 | Cover strip | — | — | — |
| R911297341 | 0.06 | Encoder connector | — | — | — |
| R911297361 | 0.06 | Encoder connector | — | — | — |
| R348112905 | 0.03 | DSUB Breakout Box | — | — | — |
| R051705003 | 0 | Extension cable | SSI; SSI | 20 | 20 |
| R051705002 | 0.1 | Extension cable | SSI; S1 - SSI 10µm | 10 | 10 |
| R051704784 | 0.04 | Extension cable | SSI; SSI | 5 | 5 |
| R051704144 | 0.03 | Extension cable | SSI; SSI | 3 | 3 |
| R051704309 | 0.45 | Extension cable | 1Vss; I9 - 1 Vss / 1000 µm | 5 | 5 |
| R051704308 | 0 | Extension cable | 1Vss; I9 - 1 Vss / 1000 µm | 3 | 3 |
| R051704311 | 0.96 | Extension cable | 1Vss; I9 - 1 Vss / 1000 µm | 20 | 20 |
| R051704310 | 0.71 | Extension cable | 1Vss; I9 - 1 Vss / 1000 µm | 10 | 10 |
| R051704313 | 0.54 | Extension cable | TTL; TTL | 5 | 5 |
| R051704312 | 0.39 | Extension cable | TTL; TTL | 3 | 3 |
| R051704315 | 0 | Extension cable | TTL; TTL | 20 | 20 |
| R051704314 | 0.63 | Extension cable | TTL; TTL | 10 | 10 |
| R168395000 | 0.03 | Raw cable | — | — | 100 |
Common to all listed parts
| Type integrated measuring system | IMScompact |
