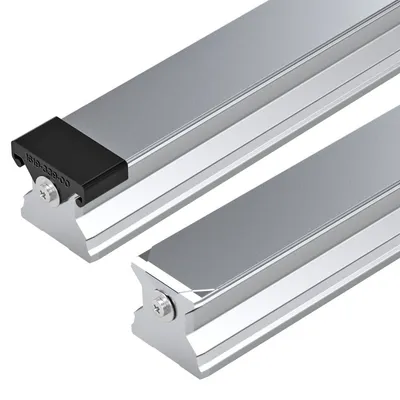

Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Guide rail cover | Max. length Lmax [mm] | Minimum length Lmin [mm] | Number of sections | Product information |
|---|---|---|---|---|---|
| R180533964 | With cover strip and strip clamps | 3996.0 | 112.0 | 4-piece | Available on request |
| R180533963 | With cover strip and strip clamps | 3996.0 | 112.0 | 3-piece | Available on request |
| R180533962 | With cover strip and strip clamps | 3996.0 | 112.0 | 2-piece | Available on request. |
| R180533961 | With cover strip and strip clamps | 5996.0 | 112.0 | 1-piece | Available on request. |
| R180535938 | Plastic caps | 3996.0 | 104.0 | 8-piece | Available on request |
| R180535937 | Plastic caps | 3996.0 | 104.0 | 7-piece | Available on request |
| R180535936 | Plastic caps | 3996.0 | 104.0 | 6-piece | Available on request |
| R180535935 | Plastic caps | 3996.0 | 104.0 | 5-piece | Available on request |
| R180535934 | Plastic caps | 3996.0 | 104.0 | 4-piece | Available on request |
| R180535933 | Plastic caps | 3996.0 | 104.0 | 3-piece | Available on request |
| R180535932 | Plastic caps | 3996.0 | 104.0 | 2-piece | Available on request. |
| R180535931 | Plastic caps | 5996.0 | 104.0 | 1-piece | Available on request. |
| R180536968 | With cover strip and protective caps | 3996.0 | 112.0 | 8-piece | Available on request |
| R180536967 | With cover strip and protective caps | 3996.0 | 112.0 | 7-piece | Available on request |
| R180536966 | With cover strip and protective caps | 3996.0 | 112.0 | 6-piece | Available on request |
| R180536965 | With cover strip and protective caps | 3996.0 | 112.0 | 5-piece | Available on request |
| R180536964 | With cover strip and protective caps | 3996.0 | 112.0 | 4-piece | Available on request |
| R180536963 | With cover strip and protective caps | 3996.0 | 112.0 | 3-piece | Available on request |
| R180536962 | With cover strip and protective caps | 3996.0 | 112.0 | 2-piece | Available on request. |
| R180536961 | With cover strip and protective caps | 5996.0 | 112.0 | 1-piece | Available on request. |
| R180532938 | Without cover strip | 3996.0 | 112.0 | 8-piece | Available on request |
| R180532937 | Without cover strip | 3996.0 | 112.0 | 7-piece | Available on request |
| R180532936 | Without cover strip | 3996.0 | 112.0 | 6-piece | Available on request |
| R180532935 | Without cover strip | 3996.0 | 112.0 | 5-piece | Available on request |
Common to all listed parts
| Version | Roller rail systems |
| Nominal size [mm] | 35 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Carbon steel |
| Accuracy class | UP - Ultra precise |
| Guide rail mounting | For bolting from above |
| Number of holes nB (profiled rail systems) | 100 |
| Mass m (kg/m) [kg/m] | 6.3 |
