Roller guide rails Parts

Bosch Rexroth R180542834 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNS-G-MA-0T

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNS-G-MA-0T

Bosch Rexroth R180542833 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNS-G-MA-0T

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNS-G-MA-0T

Bosch Rexroth R180542832 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNS-G-MA-0T

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNS-G-MA-0T

Bosch Rexroth R180542831 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNS-G-MA-0T

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNS-G-MA-0T

Bosch Rexroth R18054B962 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-BS

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-BS

Bosch Rexroth R18054B961 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-BS

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-BS

Bosch Rexroth R18054C932 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-AK

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-AK

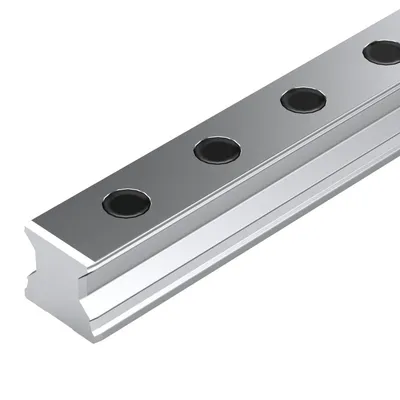

Bosch Rexroth R18054C931 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-AK

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-AK

Bosch Rexroth R18054D962 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-AB

Bosch Rexroth R18054D961 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-AB

Bosch Rexroth R18054A932 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-0T

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-0T

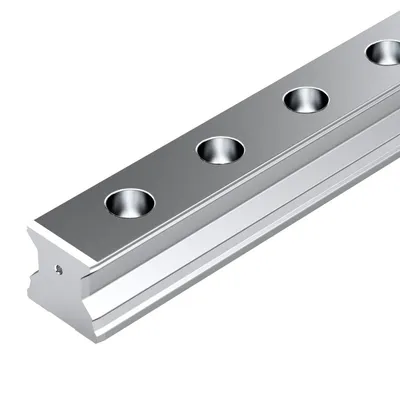

Bosch Rexroth R18054A931 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-0T

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-U-MA-0T

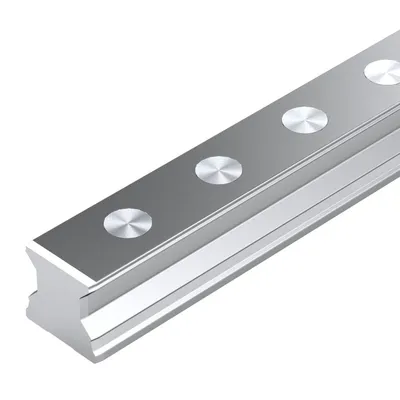

Bosch Rexroth R18064C132 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-SK

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-SK

Bosch Rexroth R18064C131 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-SK

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-SK

Bosch Rexroth R18054B168 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth R18054B167 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth R18054B166 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth R18054B165 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth R18054B164 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth R18054B163 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth R18054B162 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth R18054B161 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-BS

Bosch Rexroth R18054C138 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-AK

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-AK

Bosch Rexroth R18054C137 – ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-AK

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNO-S-MA-AK

Compare Roller guide rails

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Format	Accuracy class	Guide rail cover	Max. length Lmax [mm]	Number of sections
R180542834	SNS - Standard guide rail	GP - In pairs	Without cover strip	3986.0	4-piece
R180542833	SNS - Standard guide rail	GP - In pairs	Without cover strip	3986.0	3-piece
R180542832	SNS - Standard guide rail	GP - In pairs	Without cover strip	3986.0	2-piece
R180542831	SNS - Standard guide rail	GP - In pairs	Without cover strip	5981.0	1-piece
R18054B962	SNO - guide rail without base slot	UP - Ultra precise	With cover strip and strip clamps	3986.0	2-piece
R18054B961	SNO - guide rail without base slot	UP - Ultra precise	With cover strip and strip clamps	5981.0	1-piece
R18054C932	SNO - guide rail without base slot	UP - Ultra precise	Plastic caps	3986.0	2-piece
R18054C931	SNO - guide rail without base slot	UP - Ultra precise	Plastic caps	5981.0	1-piece
R18054D962	SNO - guide rail without base slot	UP - Ultra precise	With cover strip and protective caps	3986.0	2-piece
R18054D961	SNO - guide rail without base slot	UP - Ultra precise	With cover strip and protective caps	5981.0	1-piece
R18054A932	SNO - guide rail without base slot	UP - Ultra precise	Without cover strip	3986.0	2-piece
R18054A931	SNO - guide rail without base slot	UP - Ultra precise	Without cover strip	5981.0	1-piece
R18064C132	SNO - guide rail without base slot	SP - Super precise	With steel caps	3986.0	Multi-part
R18064C131	SNO - guide rail without base slot	SP - Super precise	With steel caps	3986.0	One-piece
R18054B168	SNO - guide rail without base slot	SP - Super precise	With cover strip and strip clamps	3986.0	8-piece
R18054B167	SNO - guide rail without base slot	SP - Super precise	With cover strip and strip clamps	3986.0	7-piece
R18054B166	SNO - guide rail without base slot	SP - Super precise	With cover strip and strip clamps	3986.0	6-piece
R18054B165	SNO - guide rail without base slot	SP - Super precise	With cover strip and strip clamps	3986.0	5-piece
R18054B164	SNO - guide rail without base slot	SP - Super precise	With cover strip and strip clamps	3986.0	4-piece
R18054B163	SNO - guide rail without base slot	SP - Super precise	With cover strip and strip clamps	3986.0	3-piece
R18054B162	SNO - guide rail without base slot	SP - Super precise	With cover strip and strip clamps	3986.0	2-piece
R18054B161	SNO - guide rail without base slot	SP - Super precise	With cover strip and strip clamps	5981.0	1-piece
R18054C138	SNO - guide rail without base slot	SP - Super precise	Plastic caps	3986.0	8-piece
R18054C137	SNO - guide rail without base slot	SP - Super precise	Plastic caps	3986.0	7-piece

Common to all listed parts

Version	Roller rail systems
Nominal size [mm]	45
Material (profiled rail systems)	Carbon steel
Guide rail mounting	For bolting from above
Number of holes nB (profiled rail systems)	76
Mass m (kg/m) [kg/m]	10.3
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0
