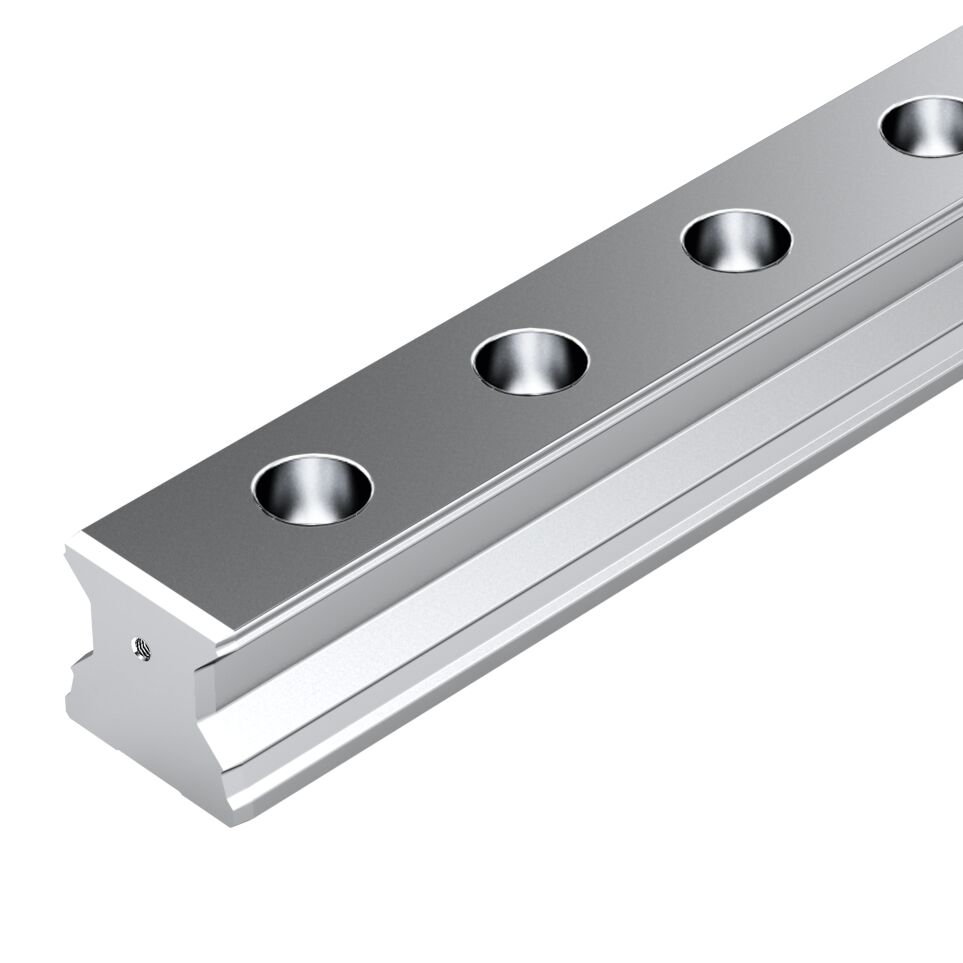

Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Accuracy class | Guide rail mounting | Guide rail cover | Max. length Lmax [mm] | Number of sections |
|---|---|---|---|---|---|
| R180555131 | SP - Super precise | For bolting from above | Plastic caps | 5936.0 | 1-piece |
| R180556168 | SP - Super precise | For bolting from above | With cover strip and protective caps | 3956.0 | 8-piece |
| R180556167 | SP - Super precise | For bolting from above | With cover strip and protective caps | 3956.0 | 7-piece |
| R180556166 | SP - Super precise | For bolting from above | With cover strip and protective caps | 3956.0 | 6-piece |
| R180556165 | SP - Super precise | For bolting from above | With cover strip and protective caps | 3956.0 | 5-piece |
| R180556164 | SP - Super precise | For bolting from above | With cover strip and protective caps | 3956.0 | 4-piece |
| R180556163 | SP - Super precise | For bolting from above | With cover strip and protective caps | 3956.0 | 3-piece |
| R180556162 | SP - Super precise | For bolting from above | With cover strip and protective caps | 3956.0 | 2-piece |
| R180556161 | SP - Super precise | For bolting from above | With cover strip and protective caps | 5936.0 | 1-piece |
| R180552138 | SP - Super precise | For bolting from above | Without cover strip | 3956.0 | 8-piece |
| R180552137 | SP - Super precise | For bolting from above | Without cover strip | 3956.0 | 7-piece |
| R180552136 | SP - Super precise | For bolting from above | Without cover strip | 3956.0 | 6-piece |
| R180552135 | SP - Super precise | For bolting from above | Without cover strip | 3956.0 | 5-piece |
| R180552134 | SP - Super precise | For bolting from above | Without cover strip | 3956.0 | 4-piece |
| R180552133 | SP - Super precise | For bolting from above | Without cover strip | 3956.0 | 3-piece |
| R180552132 | SP - Super precise | For bolting from above | Without cover strip | 3956.0 | 2-piece |
| R180552131 | SP - Super precise | For bolting from above | Without cover strip | 5936.0 | 1-piece |
| R180750238 | P - Precise | For bolting from below | Without cover strip | 3956.0 | 8-piece |
| R180750237 | P - Precise | For bolting from below | Without cover strip | 3956.0 | 7-piece |
| R180750236 | P - Precise | For bolting from below | Without cover strip | 3956.0 | 6-piece |
| R180750235 | P - Precise | For bolting from below | Without cover strip | 3956.0 | 5-piece |
| R180750234 | P - Precise | For bolting from below | Without cover strip | 3956.0 | 4-piece |
| R180750233 | P - Precise | For bolting from below | Without cover strip | 3956.0 | 3-piece |
| R180750232 | P - Precise | For bolting from below | Without cover strip | 3956.0 | 2-piece |
Common to all listed parts
| Version | Roller rail systems |
| Nominal size [mm] | 55 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Carbon steel |
| Number of holes nB (profiled rail systems) | 66 |
| Mass m (kg/m) [kg/m] | 13.1 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
