Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Guide rail cover | Max. length Lmax [mm] | Minimum length Lmin [mm] | Number of sections | Weight [kg] |
|---|---|---|---|---|---|

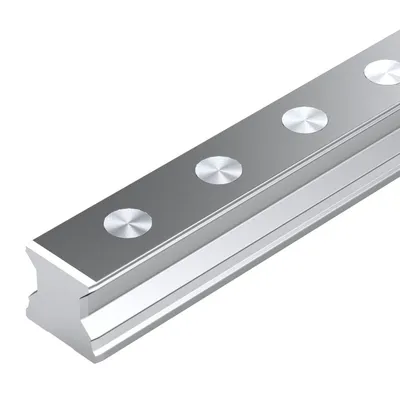

| R180665337 | With steel caps | 3971.0 | 190.0 | 7-piece | 0 |
| R180665336 | With steel caps | 3971.0 | 190.0 | 6-piece | 0 |
| R180665335 | With steel caps | 3971.0 | 190.0 | 5-piece | 0 |
| R180665334 | With steel caps | 3971.0 | 190.0 | 4-piece | 0 |
| R180665333 | With steel caps | 3971.0 | 190.0 | 3-piece | 0 |
| R180665332 | With steel caps | 3971.0 | 190.0 | 2-piece | 0 |
| R180665331 | With steel caps | 5921.0 | 190.0 | 1-piece | 0 |

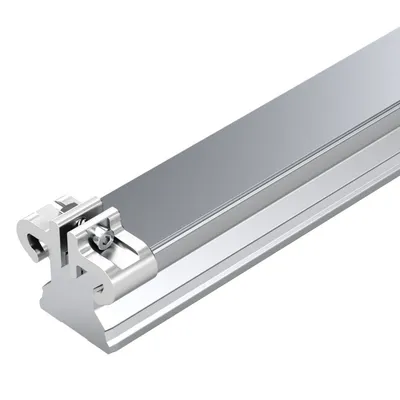

| R180563368 | With cover strip and strip clamps | 3971.0 | 192.0 | 8-piece | 0 |
| R180563367 | With cover strip and strip clamps | 3971.0 | 192.0 | 7-piece | 0 |
| R180563366 | With cover strip and strip clamps | 3971.0 | 192.0 | 6-piece | 0 |
| R180563365 | With cover strip and strip clamps | 3971.0 | 192.0 | 5-piece | 0 |
| R180563364 | With cover strip and strip clamps | 3971.0 | 192.0 | 4-piece | 0 |
| R180563363 | With cover strip and strip clamps | 3971.0 | 192.0 | 3-piece | 175 |
| R180563362 | With cover strip and strip clamps | 3971.0 | 192.0 | 2-piece | 0 |
| R180563361 | With cover strip and strip clamps | 5921.0 | 192.0 | 1-piece | 0 |

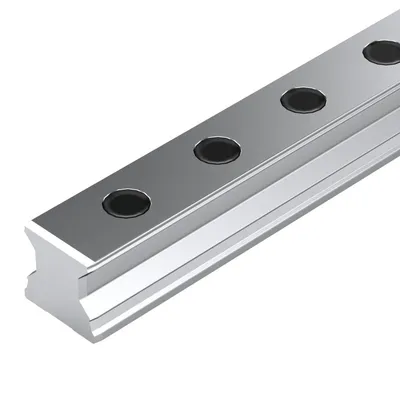

| R180565338 | Plastic caps | 3971.0 | 190.0 | 8-piece | 0 |
| R180565337 | Plastic caps | 3971.0 | 190.0 | 7-piece | 0 |
| R180565336 | Plastic caps | 3971.0 | 190.0 | 6-piece | 0 |
| R180565335 | Plastic caps | 3971.0 | 190.0 | 5-piece | 0 |
| R180565334 | Plastic caps | 3971.0 | 190.0 | 4-piece | 0 |
| R180565333 | Plastic caps | 3971.0 | 190.0 | 3-piece | 0 |
| R180565332 | Plastic caps | 3971.0 | 190.0 | 2-piece | 0 |
| R180565331 | Plastic caps | 5921.0 | 190.0 | 1-piece | 0 |
| R180566368 | With cover strip and protective caps | 3971.0 | 192.0 | 8-piece | 0 |
Common to all listed parts
| Version | Roller rail systems |
| Nominal size [mm] | 65 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Carbon steel |
| Accuracy class | H - Highly accurate |
| Guide rail mounting | For bolting from above |
| Number of holes nB (profiled rail systems) | 53 |
| Mass m (kg/m) [kg/m] | 17.4 |
