High precision ball guide rail BSHP Parts
Compare High precision ball guide rail BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Accuracy class | Guide rail mounting | Guide rail cover | Minimum length Lmin [mm] | Number of sections |
|---|---|---|---|---|---|
| R167520235 | P - Precise | For bolting from above | Plastic caps | 100.0 | 5-piece |
| R167520234 | P - Precise | For bolting from above | Plastic caps | 100.0 | 4-piece |
| R167520233 | P - Precise | For bolting from above | Plastic caps | 100.0 | 3-piece |
| R167520232 | P - Precise | For bolting from above | Plastic caps | 100.0 | 2-piece |
| R167520231 | P - Precise | For bolting from above | Plastic caps | 100.0 | 1-piece |

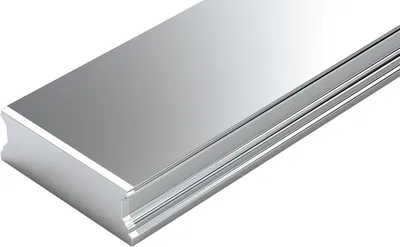

| R167720438 | N - Normal | For bolting from below | Without cover strip | 100.0 | 8-piece |
| R167720437 | N - Normal | For bolting from below | Without cover strip | 100.0 | 7-piece |
| R167720436 | N - Normal | For bolting from below | Without cover strip | 100.0 | 6-piece |
| R167720435 | N - Normal | For bolting from below | Without cover strip | 100.0 | 5-piece |
| R167720434 | N - Normal | For bolting from below | Without cover strip | 100.0 | 4-piece |
| R167720433 | N - Normal | For bolting from below | Without cover strip | 100.0 | 3-piece |
| R167720432 | N - Normal | For bolting from below | Without cover strip | 100.0 | 2-piece |
| R167720431 | N - Normal | For bolting from below | Without cover strip | 100.0 | 1-piece |

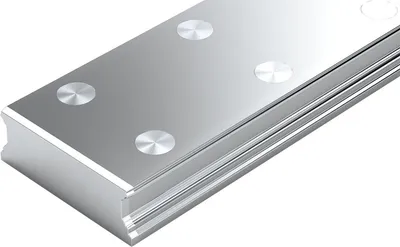

| R167625438 | N - Normal | For bolting from above | With steel caps | 106.0 | 8-piece |
| R167625437 | N - Normal | For bolting from above | With steel caps | 106.0 | 7-piece |
| R167625436 | N - Normal | For bolting from above | With steel caps | 106.0 | 6-piece |
| R167625435 | N - Normal | For bolting from above | With steel caps | 106.0 | 5-piece |
| R167625434 | N - Normal | For bolting from above | With steel caps | 106.0 | 4-piece |
| R167625433 | N - Normal | For bolting from above | With steel caps | 106.0 | 3-piece |
| R167625432 | N - Normal | For bolting from above | With steel caps | 106.0 | 2-piece |
| R167625431 | N - Normal | For bolting from above | With steel caps | 106.0 | 1-piece |
| R167520438 | N - Normal | For bolting from above | Plastic caps | 100.0 | 8-piece |
| R167520437 | N - Normal | For bolting from above | Plastic caps | 100.0 | 7-piece |
| R167520436 | N - Normal | For bolting from above | Plastic caps | 100.0 | 6-piece |
Common to all listed parts
| Version | Ball rail system |
| Nominal size [mm] | 25/70 |
| Format | BNS - wide guide rail |
| Material (profiled rail systems) | Carbon steel |
| Max. length Lmax [mm] | 3836.0 |
| Number of holes nB (profiled rail systems) | 48 |
| Mass m (kg/m) [kg/m] | 11.6 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
