High-precision ball runner block BSHP Parts

Bosch Rexroth R16537132Z – BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C1-H-1

Bosch Rexroth R16537132Y – BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C1-H-1

Bosch Rexroth R165371323 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C1-H-1

Bosch Rexroth R165371322 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C1-H-1

Bosch Rexroth R165371321 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C1-H-1

Bosch Rexroth R165371320 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C1-H-1

Bosch Rexroth R165379422 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C0-N-1

Bosch Rexroth R165379420 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C0-N-1

Bosch Rexroth R165379322 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C0-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C0-H-1

Bosch Rexroth R165379320 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C0-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C0-H-1

Bosch Rexroth R16657142Z – BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-N-1

Bosch Rexroth R16657142Y – BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-N-1

Bosch Rexroth R166571423 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-N-1

Bosch Rexroth R166571422 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-N-1

Bosch Rexroth R166571421 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-N-1

Bosch Rexroth R166571420 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-N-1

Bosch Rexroth R16657132Z – BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-H-1

Bosch Rexroth R16657132Y – BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-H-1

Bosch Rexroth R166571323 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-H-1

Bosch Rexroth R166571322 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-H-1

Bosch Rexroth R166571321 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-H-1

Bosch Rexroth R166571320 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C1-H-1

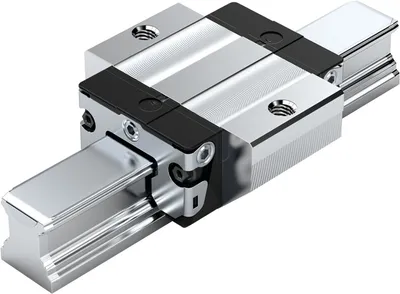

Bosch Rexroth R166579423 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C0-N-1

Bosch Rexroth R166579422 – BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-FKS-C0-N-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Weight [kg]	Dynamic load capacity C50 [N]	Dynamic load capacity C100 [N]	Static load capacity C0 [N]	Dynamic torsional moment load capacity Mt50 [Nm]
R16537132Z	1.57	58000.0	46000.0	66900.0	1010.0
R16537132Y	1.5	55200.0	43800.0	62200.0	960.0
R165371323	1.5	55200.0	43800.0	62200.0	960.0
R165371322	1.56	55200.0	43800.0	62200.0	960.0
R165371321	1.5	58000.0	46000.0	66900.0	1010.0
R165371320	1.57	58000.0	46000.0	66900.0	1010.0
R165379422	1.57	55200.0	43800.0	62200.0	960.0
R165379420	1.57	58000.0	46000.0	66900.0	1010.0
R165379322	1.56	55200.0	43800.0	62200.0	960.0
R165379320	1.56	58000.0	46000.0	66900.0	1010.0
R16657142Z	0.8	32300.0	25600.0	28900.0	550.0
R16657142Y	0.8	30700.0	24400.0	26900.0	530.0
R166571423	0.8	30700.0	24400.0	26900.0	530.0
R166571422	0.8	30700.0	24400.0	26900.0	530.0
R166571421	0.8	32300.0	25600.0	28900.0	550.0
R166571420	0.8	32300.0	25600.0	28900.0	550.0
R16657132Z	0.8	32300.0	25600.0	28900.0	550.0
R16657132Y	0.8	30700.0	24400.0	26900.0	530.0
R166571323	0.8	30700.0	24400.0	26900.0	530.0
R166571322	0.8	30700.0	24400.0	26900.0	530.0
R166571321	0.8	32300.0	25600.0	28900.0	550.0
R166571320	0.8	32300.0	25600.0	28900.0	550.0
R166579423	0.8	30700.0	24400.0	26900.0	530.0
R166579422	0.8	30700.0	24400.0	26900.0	530.0

Common to all listed parts

Version	Ball rail system
Nominal size [mm]	30
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	90.0
Height of runner block [mm]	35.35
Height runner block with guide rail [mm]	42.0
