High-precision ball runner block BSHP Parts

Bosch Rexroth R16217222Y – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-P-1

Bosch Rexroth R162172222 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-P-1

Bosch Rexroth R162172220 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-P-1

Bosch Rexroth R162172420 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-N-1

Bosch Rexroth R16217232Z – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-H-1

Bosch Rexroth R16217232Y – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-H-1

Bosch Rexroth R162172322 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-H-1

Bosch Rexroth R162172320 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C2-H-1

Bosch Rexroth R16217182Z – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-X-1

Bosch Rexroth R16217182Y – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-X-1

Bosch Rexroth R162171823 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-X-1

Bosch Rexroth R162171822 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-X-1

Bosch Rexroth R162171821 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-X-1

Bosch Rexroth R162171820 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-X-1

Bosch Rexroth R16217122Z – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-P-1

Bosch Rexroth R16217122Y – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-P-1

Bosch Rexroth R162171222 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-P-1

Bosch Rexroth R162171220 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-P-1

Bosch Rexroth R16217142Z – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-N-1

Bosch Rexroth R16217142Y – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-N-1

Bosch Rexroth R162171423 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-N-1

Bosch Rexroth R162171422 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-N-1

Bosch Rexroth R162171421 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-N-1

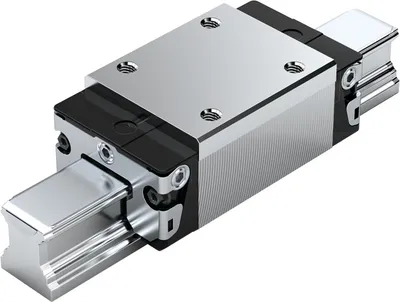

Bosch Rexroth R162171420 – BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNH-C1-N-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Preload class	Accuracy class	Seal	Ball chain	Weight [kg]
R16217222Y	C2 - Medium preload	P - Precise	DS - Double-lip seal	With ball chain	0.95
R162172222	C2 - Medium preload	P - Precise	SS - Standard seal	With ball chain	0.95
R162172220	C2 - Medium preload	P - Precise	SS - Standard seal	Without ball chain (standard)	0.95
R162172420	C2 - Medium preload	N - Normal	SS - Standard seal	Without ball chain (standard)	1
R16217232Z	C2 - Medium preload	H - Highly accurate	DS - Double-lip seal	Without ball chain (standard)	0.95
R16217232Y	C2 - Medium preload	H - Highly accurate	DS - Double-lip seal	With ball chain	0.95
R162172322	C2 - Medium preload	H - Highly accurate	SS - Standard seal	With ball chain	0.95
R162172320	C2 - Medium preload	H - Highly accurate	SS - Standard seal	Without ball chain (standard)	0.95
R16217182Z	C1 - Low preload	XP - Extra precise	DS - Double-lip seal	Without ball chain (standard)	0.95
R16217182Y	C1 - Low preload	XP - Extra precise	DS - Double-lip seal	With ball chain	0.95
R162171823	C1 - Low preload	XP - Extra precise	LS - Low-friction seal	With ball chain	0.95
R162171822	C1 - Low preload	XP - Extra precise	SS - Standard seal	With ball chain	0.95
R162171821	C1 - Low preload	XP - Extra precise	LS - Low-friction seal	Without ball chain (standard)	0.95
R162171820	C1 - Low preload	XP - Extra precise	SS - Standard seal	Without ball chain (standard)	0.95
R16217122Z	C1 - Low preload	P - Precise	DS - Double-lip seal	Without ball chain (standard)	0.95
R16217122Y	C1 - Low preload	P - Precise	DS - Double-lip seal	With ball chain	0.95
R162171222	C1 - Low preload	P - Precise	SS - Standard seal	With ball chain	0.95
R162171220	C1 - Low preload	P - Precise	SS - Standard seal	Without ball chain (standard)	0.95
R16217142Z	C1 - Low preload	N - Normal	DS - Double-lip seal	Without ball chain (standard)	0.95
R16217142Y	C1 - Low preload	N - Normal	DS - Double-lip seal	With ball chain	0.95
R162171423	C1 - Low preload	N - Normal	LS - Low-friction seal	With ball chain	0.95
R162171422	C1 - Low preload	N - Normal	SS - Standard seal	With ball chain	0.95
R162171421	C1 - Low preload	N - Normal	LS - Low-friction seal	Without ball chain (standard)	0.95
R162171420	C1 - Low preload	N - Normal	SS - Standard seal	Without ball chain (standard)	0.95

Common to all listed parts

Nominal size [mm]	30
Format	SNH - slimline, normal, high
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	60.0
Length of runner block [mm]	97.7
Height of runner block [mm]	38.35
