High-precision ball runner block BSHP Parts

Bosch Rexroth R16533112Y – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-S-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-S-1

Bosch Rexroth R165331122 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-S-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-S-1

Bosch Rexroth R165331120 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-S-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-S-1

Bosch Rexroth R16533122Z – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-P-1

Bosch Rexroth R16533122Y – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-P-1

Bosch Rexroth R165331222 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-P-1

Bosch Rexroth R165331220 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-P-1

Bosch Rexroth R16533142Z – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-N-1

Bosch Rexroth R16533142Y – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-N-1

Bosch Rexroth R165331423 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-N-1

Bosch Rexroth R165331422 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-N-1

Bosch Rexroth R165331421 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-N-1

Bosch Rexroth R165331420 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-N-1

Bosch Rexroth R16533132Z – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-H-1

Bosch Rexroth R16533132Y – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-H-1

Bosch Rexroth R165331323 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-H-1

Bosch Rexroth R165331322 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-H-1

Bosch Rexroth R165331321 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-H-1

Bosch Rexroth R165331320 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C1-H-1

Bosch Rexroth R165339422 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C0-N-1

Bosch Rexroth R165339420 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C0-N-1

Bosch Rexroth R165339322 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C0-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C0-H-1

Bosch Rexroth R165339320 – BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C0-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C0-H-1

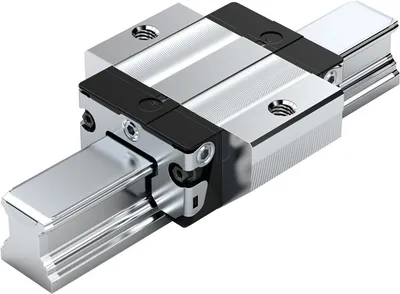

Bosch Rexroth R16653142Z – BALL RUNNER BLOCK CARBON STEEL KWD-035-FKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-FKS-C1-N-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Accuracy class	Seal	Weight [kg]	Dynamic load capacity C50 [N]	Dynamic load capacity C100 [N]
R16533112Y	SP - Super precise	DS - Double-lip seal	2.25	80100.0	63600.0
R165331122	SP - Super precise	SS - Standard seal	2.25	80100.0	63600.0
R165331120	SP - Super precise	SS - Standard seal	2.38	84000.0	66700.0
R16533122Z	P - Precise	DS - Double-lip seal	2.25	84000.0	66700.0
R16533122Y	P - Precise	DS - Double-lip seal	2.25	80100.0	63600.0
R165331222	P - Precise	SS - Standard seal	2.25	80100.0	63600.0
R165331220	P - Precise	SS - Standard seal	2.36	84000.0	66700.0
R16533142Z	N - Normal	DS - Double-lip seal	2.25	84000.0	66700.0
R16533142Y	N - Normal	DS - Double-lip seal	2.25	80100.0	63600.0
R165331423	N - Normal	LS - Low-friction seal	2.25	80100.0	63600.0
R165331422	N - Normal	SS - Standard seal	2.36	80100.0	63600.0
R165331421	N - Normal	LS - Low-friction seal	2.36	84000.0	66700.0
R165331420	N - Normal	SS - Standard seal	2.25	84000.0	66700.0
R16533132Z	H - Highly accurate	DS - Double-lip seal	2.36	84000.0	66700.0
R16533132Y	H - Highly accurate	DS - Double-lip seal	2.25	80100.0	63600.0
R165331323	H - Highly accurate	LS - Low-friction seal	2.25	80100.0	63600.0
R165331322	H - Highly accurate	SS - Standard seal	2.25	80100.0	63600.0
R165331321	H - Highly accurate	LS - Low-friction seal	2.25	84000.0	66700.0
R165331320	H - Highly accurate	SS - Standard seal	2.25	84000.0	66700.0
R165339422	N - Normal	SS - Standard seal	2.36	80100.0	63600.0
R165339420	N - Normal	SS - Standard seal	2.36	84000.0	66700.0
R165339322	H - Highly accurate	SS - Standard seal	2.25	80100.0	63600.0
R165339320	H - Highly accurate	SS - Standard seal	2.36	84000.0	66700.0
R16653142Z	N - Normal	DS - Double-lip seal	1.2	46100.0	36600.0

Common to all listed parts

Version	Ball rail system
Nominal size [mm]	35
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	100.0
Height of runner block [mm]	40.4
Height runner block with guide rail [mm]	48.0
