High-precision ball runner block BSHP Parts

Bosch Rexroth R201289404 – BALL RUNNER BLOCK RESIST NRII KWD-020-SLS-C0-N-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SLS-C0-N-0

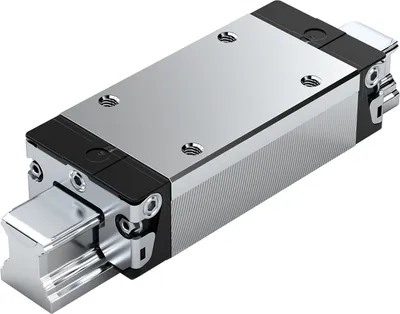

Bosch Rexroth R201289307 – BALL RUNNER BLOCK RESIST NRII KWD-020-SLS-C0-H-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SLS-C0-H-0

Bosch Rexroth R201289306 – BALL RUNNER BLOCK RESIST NRII KWD-020-SLS-C0-H-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SLS-C0-H-0

Bosch Rexroth R201289305 – BALL RUNNER BLOCK RESIST NRII KWD-020-SLS-C0-H-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SLS-C0-H-0

Bosch Rexroth R201289304 – BALL RUNNER BLOCK RESIST NRII KWD-020-SLS-C0-H-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SLS-C0-H-0

Bosch Rexroth R20108140X – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-N-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-N-0

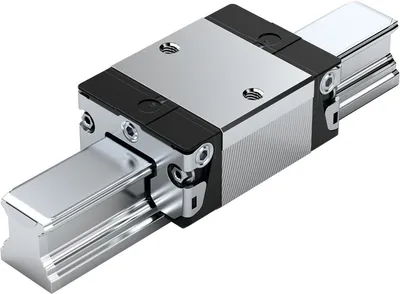

Bosch Rexroth R20108140W – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-N-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-N-0

Bosch Rexroth R201081407 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-N-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-N-0

Bosch Rexroth R201081406 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-N-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-N-0

Bosch Rexroth R201081405 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-N-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-N-0

Bosch Rexroth R20108130X – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-H-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-H-0

Bosch Rexroth R20108130W – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-H-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-H-0

Bosch Rexroth R201081307 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-H-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-H-0

Bosch Rexroth R201081306 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-H-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-H-0

Bosch Rexroth R201081305 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-H-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-H-0

Bosch Rexroth R201081304 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-H-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C1-H-0

Bosch Rexroth R201089407 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-N-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-N-0

Bosch Rexroth R201089406 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-N-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-N-0

Bosch Rexroth R201089405 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-N-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-N-0

Bosch Rexroth R201089404 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-N-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-N-0

Bosch Rexroth R201089307 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-H-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-H-0

Bosch Rexroth R201089306 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-H-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-H-0

Bosch Rexroth R201089305 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-H-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-H-0

Bosch Rexroth R201089304 – BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-H-0

Bosch Rexroth

BALL RUNNER BLOCK RESIST NRII KWD-020-SKS-C0-H-0

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Seal	Dynamic load capacity C50 [N]	Dynamic load capacity C100 [N]	Static load capacity C0 [N]	Dynamic torsional moment load capacity Mt50 [Nm]
R201289404	SS - Standard seal	20200.0	16000.0	24400.0	330.0
R201289307	LS - Low-friction seal	19200.0	15200.0	22500.0	320.0
R201289306	SS - Standard seal	19200.0	15200.0	22500.0	320.0
R201289305	LS - Low-friction seal	20200.0	16000.0	24400.0	330.0
R201289304	SS - Standard seal	20200.0	16000.0	24400.0	330.0
R20108140X	DS - Double-lip seal	10300.0	8200.0	9400.0	160.0
R20108140W	DS - Double-lip seal	10300.0	8200.0	9400.0	160.0
R201081407	LS - Low-friction seal	10300.0	8200.0	9400.0	160.0
R201081406	SS - Standard seal	10300.0	8200.0	9400.0	160.0
R201081405	LS - Low-friction seal	10300.0	8200.0	9400.0	160.0
R20108130X	DS - Double-lip seal	10300.0	8200.0	9400.0	160.0
R20108130W	DS - Double-lip seal	10300.0	8200.0	9400.0	160.0
R201081307	LS - Low-friction seal	10300.0	8200.0	9400.0	160.0
R201081306	SS - Standard seal	10300.0	8200.0	9400.0	160.0
R201081305	LS - Low-friction seal	10300.0	8200.0	9400.0	160.0
R201081304	SS - Standard seal	10300.0	8200.0	9400.0	160.0
R201089407	LS - Low-friction seal	10300.0	8200.0	9400.0	160.0
R201089406	SS - Standard seal	10300.0	8200.0	9400.0	160.0
R201089405	LS - Low-friction seal	10300.0	8200.0	9400.0	160.0
R201089404	SS - Standard seal	10300.0	8200.0	9400.0	160.0
R201089307	LS - Low-friction seal	10300.0	8200.0	9400.0	160.0
R201089306	SS - Standard seal	10300.0	8200.0	9400.0	160.0
R201089305	LS - Low-friction seal	10300.0	8200.0	9400.0	160.0
R201089304	SS - Standard seal	10300.0	8200.0	9400.0	160.0

Common to all listed parts

Version	Ball rail system
Nominal size [mm]	20
Model	High-precision ball runner block
Material (profiled rail systems)	Corrosion-resistant steel (Resist NR II)
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	44.0
Height of runner block [mm]	25.35
Height runner block with guide rail [mm]	30.0
