High-precision ball runner block BSHP Parts

Bosch Rexroth R165311122 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-S-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-S-1

Bosch Rexroth R165311120 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-S-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-S-1

Bosch Rexroth R16531122Z – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-P-1

Bosch Rexroth R165311222 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-P-1

Bosch Rexroth R165311220 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-P-1

Bosch Rexroth R16531142Z – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-N-1

Bosch Rexroth R165311423 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-N-1

Bosch Rexroth R165311422 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-N-1

Bosch Rexroth R165311421 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-N-1

Bosch Rexroth R165311420 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-N-1

Bosch Rexroth R16531132Z – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-H-1

Bosch Rexroth R165311323 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-H-1

Bosch Rexroth R165311322 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-H-1

Bosch Rexroth R165311321 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-H-1

Bosch Rexroth R165311320 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C1-H-1

Bosch Rexroth R165319422 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C0-N-1

Bosch Rexroth R165319420 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C0-N-1

Bosch Rexroth R165319322 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C0-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C0-H-1

Bosch Rexroth R165319320 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C0-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FLS-C0-H-1

Bosch Rexroth R16651142Z – BALL RUNNER BLOCK CARBON STEEL KWD-015-FKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FKS-C1-N-1

Bosch Rexroth R166511423 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FKS-C1-N-1

Bosch Rexroth R166511422 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FKS-C1-N-1

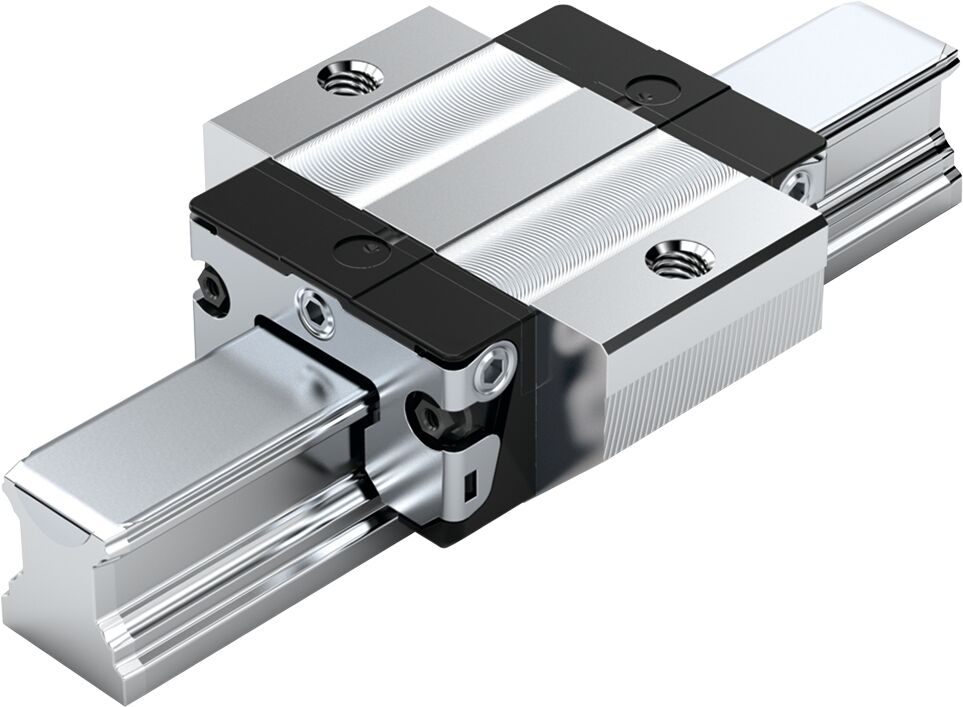

Bosch Rexroth R166511421 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FKS-C1-N-1

Bosch Rexroth R166511420 – BALL RUNNER BLOCK CARBON STEEL KWD-015-FKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-FKS-C1-N-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Accuracy class	Weight [kg]	Dynamic load capacity C50 [N]	Dynamic load capacity C100 [N]	Static load capacity C0 [N]
R165311122	SP - Super precise	0.3	14500.0	11500.0	15600.0
R165311120	SP - Super precise	0.3	16100.0	12800.0	18400.0
R16531122Z	P - Precise	0.3	16100.0	12800.0	18400.0
R165311222	P - Precise	0.3	14500.0	11500.0	15600.0
R165311220	P - Precise	0.3	16100.0	12800.0	18400.0
R16531142Z	N - Normal	0.3	16100.0	12800.0	18400.0
R165311423	N - Normal	0.3	14500.0	11500.0	15600.0
R165311422	N - Normal	0.3	14500.0	11500.0	15600.0
R165311421	N - Normal	0.3	16100.0	12800.0	18400.0
R165311420	N - Normal	0.29	16100.0	12800.0	18400.0
R16531132Z	H - Highly accurate	0.3	16100.0	12800.0	18400.0
R165311323	H - Highly accurate	0.3	14500.0	11500.0	15600.0
R165311322	H - Highly accurate	0.3	14500.0	11500.0	15600.0
R165311321	H - Highly accurate	0.3	16100.0	12800.0	18400.0
R165311320	H - Highly accurate	0.3	16100.0	12800.0	18400.0
R165319422	N - Normal	0.3	14500.0	11500.0	15600.0
R165319420	N - Normal	0.3	16100.0	12800.0	18400.0
R165319322	H - Highly accurate	0.3	14500.0	11500.0	15600.0
R165319320	H - Highly accurate	0.3	16100.0	12800.0	18400.0
R16651142Z	N - Normal	0.15	8470.0	6720.0	7340.0
R166511423	N - Normal	0.15	7600.0	6030.0	6230.0
R166511422	N - Normal	0.15	7600.0	6030.0	6230.0
R166511421	N - Normal	0.15	8470.0	6720.0	7340.0
R166511420	N - Normal	0.17	8470.0	6720.0	7340.0

Common to all listed parts

Version	Ball rail system
Nominal size [mm]	15
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	47.0
Height of runner block [mm]	19.9
Height runner block with guide rail [mm]	24.0
