RG2 Encoder Cables Parts
Compare RG2 Encoder Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Encoder Type | cable length [m] | Static bending radius | Ambient temperature (during operation) [°C] | Weight [kg] |
|---|---|---|---|---|---|
| R911397748 | analogue | 2.5 | 4xD | -20-80 | 0.35 |
| R911381219 | analogue | 2.0 | 4xD | -20-80 | 0.29 |
| R911374783 | analogue | 1.6 | 4xD | -20-80 | 0 |
| R911380864 | analogue | 1.5 | 4xD | -20-80 | 0.25 |
| R914503811 | analogue | 1.3 | 4xD | -20-80 | 0 |

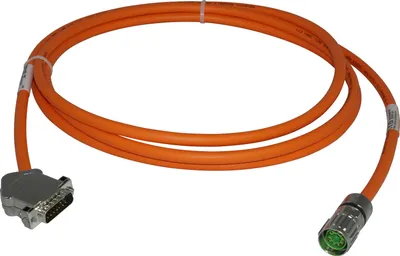

| R911378187 | analogue | 1.0 | 4xD | -20-80 | 0.2 |
| R911381210 | digital | 30.0 | 5xD | -40-80 | 0 |
| R911381209 | digital | 25.0 | 5xD | -40-80 | 0 |
| R911381208 | digital | 20.0 | 5xD | -40-80 | 0 |
| R911381207 | digital | 15.0 | 5xD | -40-80 | 0 |
| R914000707 | digital | 11.0 | 5xD | -40-80 | 0 |
| R911381206 | digital | 10.0 | 5xD | -40-80 | 0.79 |
| R911396338 | digital | 9.0 | 5xD | -40-80 | 0 |
| R911396337 | digital | 8.0 | 5xD | -40-80 | 0 |
| R911381205 | digital | 7.5 | 5xD | -40-80 | 0.61 |
| R911394449 | digital | 7.2 | 5xD | -40-80 | 0 |
| R911396336 | digital | 7.0 | 5xD | -40-80 | 0 |
| R911394448 | digital | 6.4 | 5xD | -40-80 | 0 |
| R911396335 | digital | 6.0 | 5xD | -40-80 | 0 |
| R911394447 | digital | 5.9 | 5xD | -40-80 | 0 |
| R911394446 | digital | 5.6 | 5xD | -40-80 | 0 |
| R911373996 | digital | 5.0 | 5xD | -40-80 | 0.44 |
| R911394445 | digital | 3.5 | 5xD | -40-80 | 0 |
| R911381880 | digital | 3.4 | 5xD | -40-80 | 0 |
Common to all listed parts
| Cable Variant | Encoder Cable |
| Cable Type | ready-made |
| Compatible Motors | MS2x |
| Compatible Drives | KMS03.1 |
| Cable Model | Basic |
| Connection type of motor connector | M17 encoder connector |
| Motor-Drive-Connection | direct connection |
| Dynamic bending radius | 7.5xD |
