Fieldbus Couplers Parts
Compare Fieldbus Couplers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Communication | Fieldbus communication protocol | Ambient temperature (during operation) [°C] | Weight [kg] |
|---|---|---|---|---|
| R911173318 | Sercos slave | Sercos | -25-55 | 0.22 |

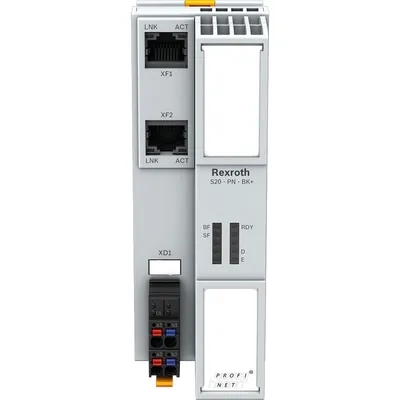

| R911173359 | Profinet | ProfiNet | -25-55 | 0.23 |

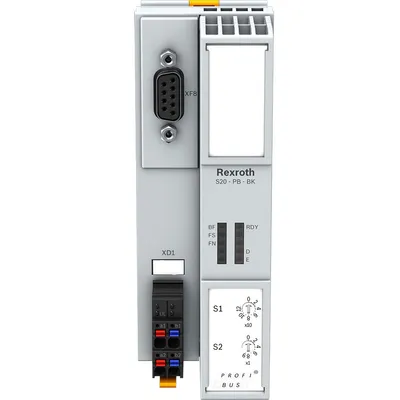

| R911173247 | PROFIBUS | PROFIBUS | -25-55 | 0.21 |

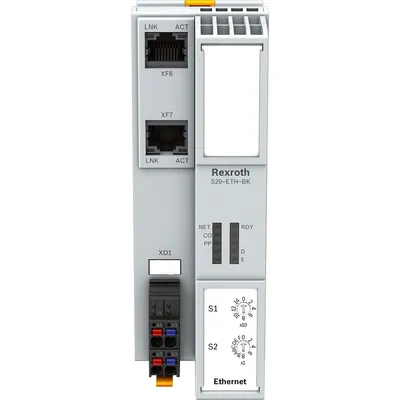

| R911173905 | Ethernet | EtherNet | -25-60 | 0.23 |

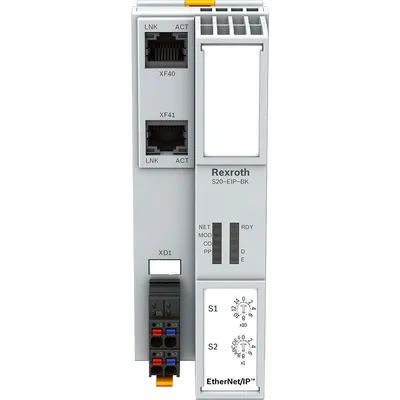

| R911173904 | Etheret/IP adapter | EtherNet / IP | -25-60 | 0.22 |

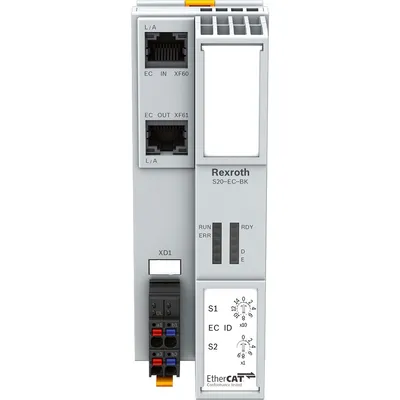

| R911173906 | EtherCAT | EtherCAT | -25-60 | 0.23 |
Common to all listed parts
| Connection type | Push-in |
| Width [mm] | 45 |
| Height [mm] | 74 |
| Depth [mm] | 125.9 |
| International protection code | IP20 |
| Power supply to UBus [A] | 2 |
| Logic voltage supply UL [V DC] | 24 |
| Permissible air humidity (storage) [%] | 5-95 |
