XI1 Digital Inputs Parts
Compare XI1 Digital Inputs
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Maximum power dissipation in the module [W] | Weight [kg] | Number of channels | Bit width, input data in the process data image (including fill bits) | Current requirement Up |
|---|---|---|---|---|---|
| R911421642 | 1.34 | 0.11 | — | — | — |
| R911421643 | 1.35 | 0.11 | 2 | 34 bytes | 20 mA + load |

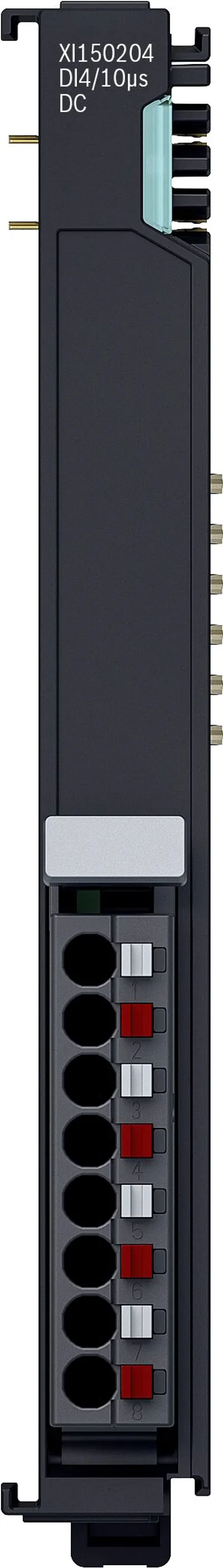

| R911421640 | 1.34 | 0.11 | 4 | 1 byte | 20 mA |
| R911421639 | 1.95 | 0.11 | 2 | 14 bytes | 36 mA + load |
| R912009221 | 1.9 | 0.11 | 16 | 2 bytes | — |

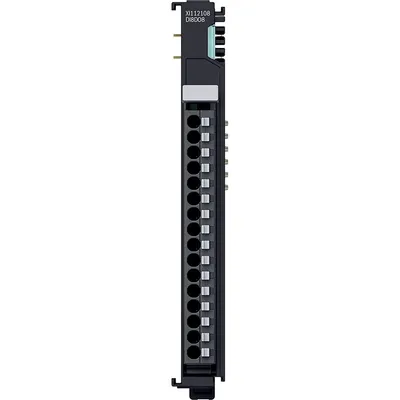

| R912009441 | 1.8 | 0.12 | 16 | 1 byte | 50 mA + load |
| R911406096 | 1.43 | 0.12 | 8 | 1 byte (8 bits) | 15 mA |
| R911417202 | 1.26 | 0.11 | 4 | 4 bits | 13 mA + load |
| R911406097 | 1.89 | 0.13 | 16 | 2 bytes (16 bits) | 19 mA |
Common to all listed parts
| Connection type | Push-in |
| Width [mm] | 12 |
| Height [mm] | 105 |
| Depth [mm] | 99 |
| International protection code | IP20 |
| Protection class | III |
| EMC resistance | EN 61000-6-2 and EN 61000-6-4 |
| Channel LEDs | Per channel |
