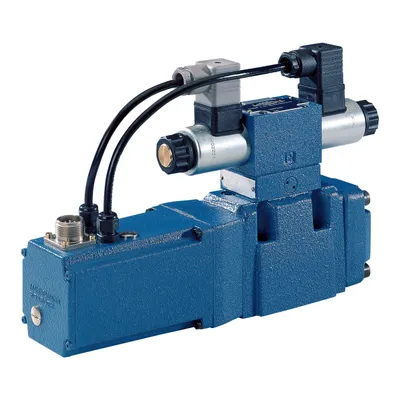

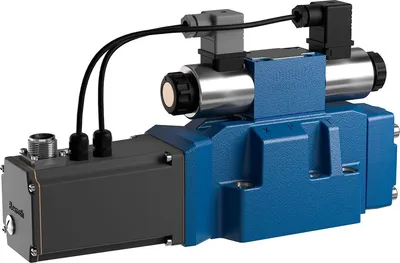

Proportional directional valves Parts
Compare Proportional directional valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Operating pressure, max. [bar] | Max. flow [l/min] | Spool symbol | Nominal flow [l/min] | Weight [kg] |
|---|---|---|---|---|---|
| R901218348 | 350.0 | 1600.0 | Symbol E1 | 600.0 | 36.94 |
| R901268348 | 350.0 | 1600.0 | Symbol E1 | 600.0 | 37.2 |
| R901117336 | 350.0 | 1600.0 | Symbol E1 | 600.0 | 36.92 |
| R901371893 | 350.0 | 1550.0 | Symbol E1 | 400.0 | 37 |
| R900782165 | 350.0 | 1550.0 | Symbol E1 | 400.0 | 37.4 |
| R901453362 | 270.0 | 1000.0 | Symbol W8 | 500.0 | 19.5 |
| R901569995 | 270.0 | 1000.0 | Symbol W8 | 500.0 | 15 |
| R901051312 | 270.0 | 1000.0 | Symbol W8 | 500.0 | 19.35 |
| R901274300 | 270.0 | 1000.0 | Symbol W8 | 500.0 | 19.28 |
| R901072883 | 270.0 | 1000.0 | Symbol W8 | 500.0 | 19.74 |
| R900750794 | 270.0 | 1000.0 | Symbol W8 | 500.0 | 19.3 |
| R901250339 | 270.0 | 1000.0 | Symbol W8 | 500.0 | 19.36 |
| R901115085 | 270.0 | 1000.0 | Symbol W8 | 500.0 | 19.36 |
| R901199286 | 270.0 | 1000.0 | Symbol W8 | 500.0 | 19.32 |
| R901097952 | 270.0 | 1000.0 | Symbol W8 | 500.0 | 19.52 |
| R901578867 | 250.0 | 1000.0 | Symbol W8 | 500.0 | 18.99 |
| R900701429 | 270.0 | 1000.0 | Symbol W8 | 500.0 | 19.38 |
| R901329115 | 270.0 | 1000.0 | Symbol W6 | 500.0 | 19.35 |
| R901528136 | 270.0 | 1000.0 | Symbol W6 | 500.0 | 19.44 |
| R901587739 | 270.0 | 1000.0 | Symbol W6 | 500.0 | 19.44 |
| R901147944 | 270.0 | 1000.0 | Symbol W6 | 500.0 | 19.32 |
| R901575167 | 250.0 | 1000.0 | Symbol W6 | 500.0 | 18.99 |
| R900731496 | 270.0 | 1000.0 | Symbol W6 | 500.0 | 19.32 |
| R901204539 | 270.0 | 1000.0 | Symbol W6 | 500.0 | 19.38 |
Common to all listed parts
| Type of connection | Subplate mounting |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
